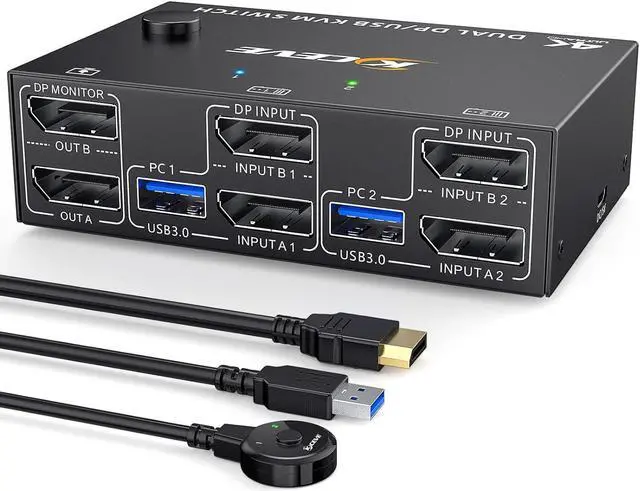

KVM Switch Dual Monitor DisplayPort 1.4 8K@30Hz 4K@144Hz 2 in 2 Out,DP1.4 KVM Switch and 4 USB3.0 for 2 Computers,Backnward Compatible DP1.2 with DP+UBS Cables and Wired Controller

Dual Monitor Displayport 1.4 KVM SwitchDual Monitor DP 1.4 KVM Switch helps 2 computers or laptops to share 2 monitors, 1 set of keyboard, mouse and 4 USB 3.0 devices, support extend mode and copy mode.
Note: Press "Window+P", a small window will pop up, in which to choose "Copy" Mode or "Extend" Mode.

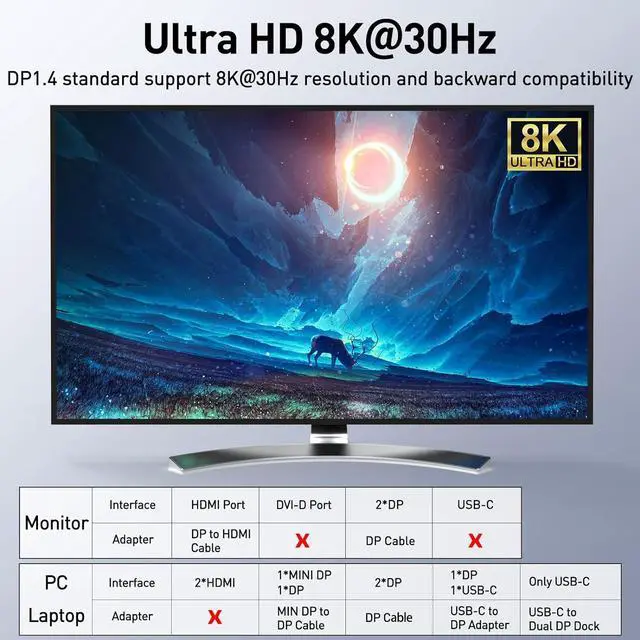

Ultra HD 8K@30HzDP 1.4 KVM Switch supports max. resolution of 8K@30Hz, 4K@144Hz and downward compatible DP 1.2.
Note: If need to achieve 8K@30Hz, 4K@144Hz, 4K@120Hz, in addition to the computers and monitors to support this resolution, also need to use a real 8K DP 1.4 cables, the cable we provide are 8K DP 1.4 cables.

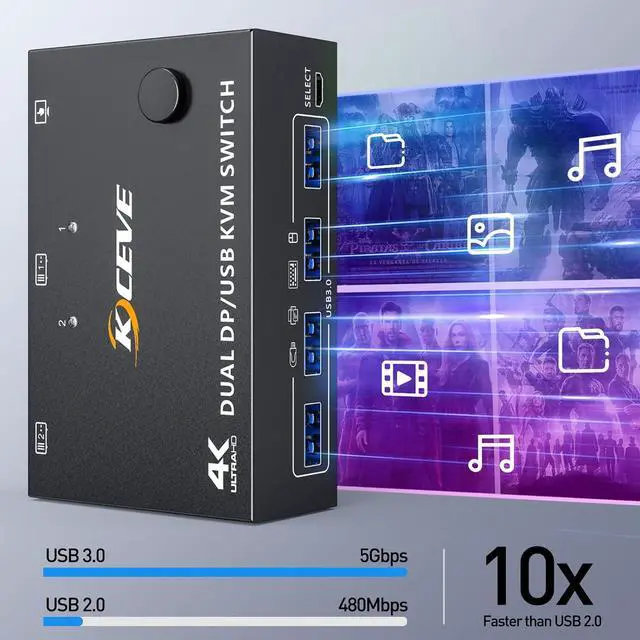

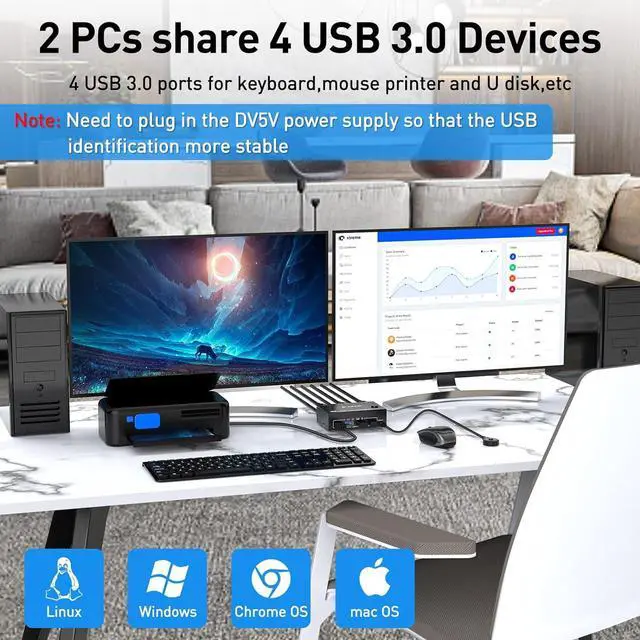

DP 1.4 KVM Switches with 4 USB 3.0 PortsDual monitor Displayport USB switch with 4 USB 3.0 ports which can recognize keyboard, mouse, printer, scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.
Note: If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

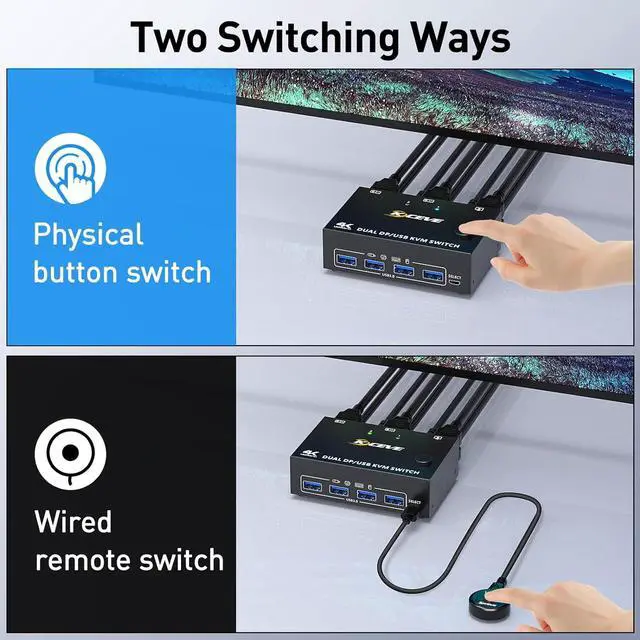

Compatibility & 2 Switching MethdosAOOCOO dual monitor KVM switch driver-free and plug and play. you can press the button on the panel or use the wired remote controller to switch the computers. Two color lights indicate the active computer.
Extended Mode&Copy ModeDual display KVM switches require 2*DP connections per computer, and for computers with discrete and integrated graphics cards require both DP ports to be belong of the discrete graphics card.
Note: MAC M1/M2 only supports one external screen, no multi-screen output. If using the MST multi-screen docking station, the computer CPU requires support for 11th generation.

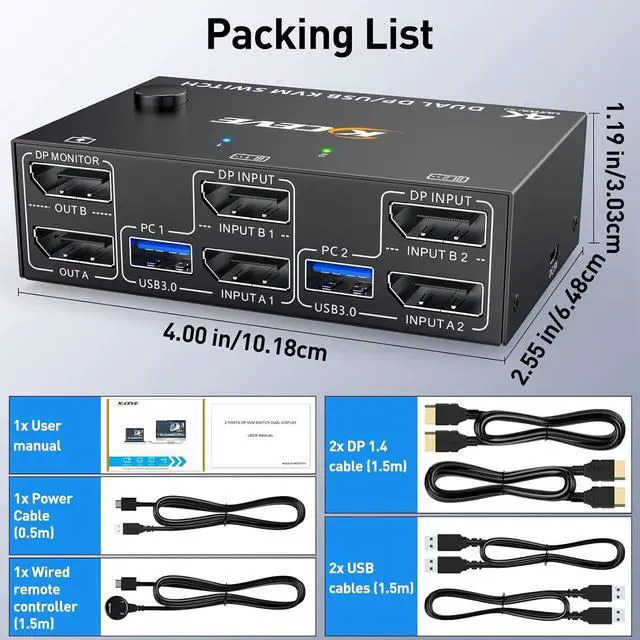

Package List1*Dual Monitor Displayport 1.4 USB 3.0 KVM Switch+2*DP 1.4 Cables( 1.5 m/ 4.9 ft)+2*USB 3.0 Cables( 1.5 m/ 4.9 ft)+1*Wired Remote Controller( 1.52 m/5ft)+1*DC5V Power Cable+1*User Manual.
Input and Output ConversionsInput: Support MINI DP to DP Cable, USB-C to DP Adapter, USB-C to Dual DP Dock. Don't support HDMI to DP, DVA/VGA to DP.
Output: Support DP to HDMI Cable. Don't support DP to USB-C/DVI/VGA.
Warm Tips In order to get a good using experience, it is recommended to use two DP monitors with the same resolution. When the computer's resolution is 4K@60Hz and above, or if the USB is not recognized properly, please use the power cable provided to connect the DC5V power port.

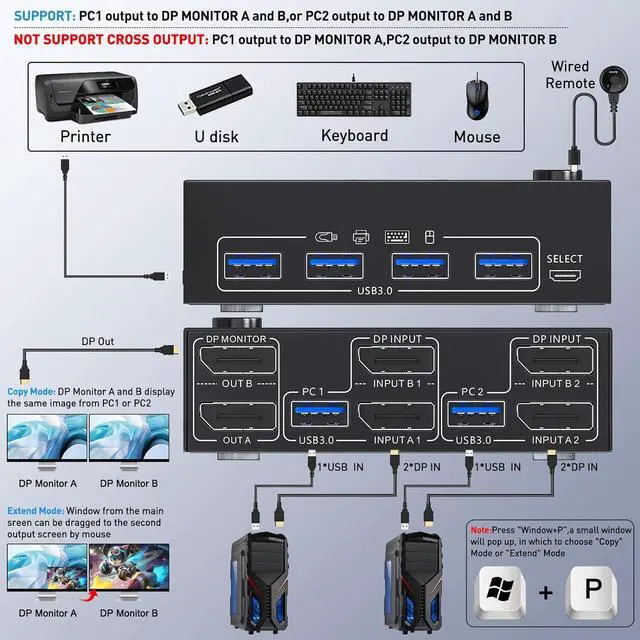

Connection steps:

Step 1: Connect 2 x DP cable +1 x USB cable to PC 1 and KVM (USB 1, INPUT A1, INPUT B1), Connect 2 x DP cable +1 x USB cable to PC 2 and KVM (USB 2, INPUT A2, INPUT B2).

Step 2.: Connect 2 x DP cable between the KVM (OUT A, OUT B) and the monitors.

Step 3.: Connect a keyboard and mouse or other USB devices to the USB output ports on the KVM.

Step 4: Plug the desktop controller into the SELECT port and remotely switch between PC1 and PC2.
