60M HDMI KVM Extender over Cat5e Cat6 1080P HDMI USB KVM Ethernet Extender Transmitter with Loop out Support USB Keyboard Mouse(With US Plug) (TX and RX)

Introduction:
The KVM Extender uses single cat5e or cat6 (recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost.
The Extender is designed to supply for long distance transmission of high definition signal.
It offers solutions for residential consumers: HDTV retail and show site, HDTV, STB, DVD and projector factories,
space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
*One pair as a full functional module, no need of setting.
*Support 1080P/60Hz;

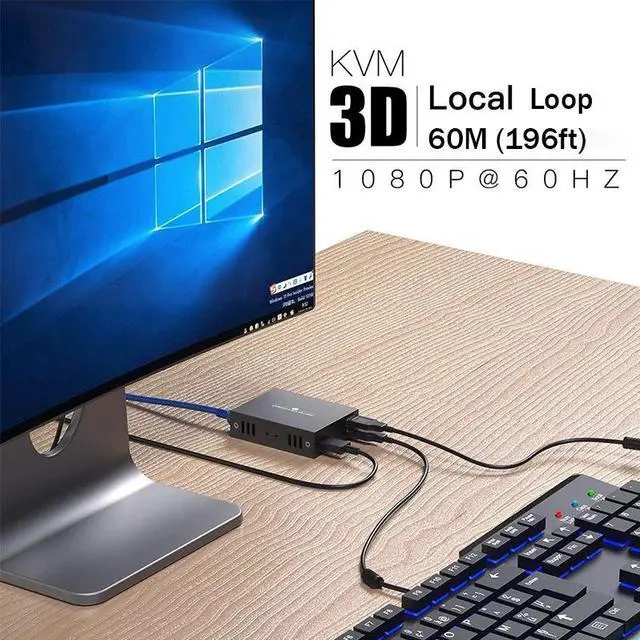

*Support local loop-out;
*Support 60m long distance transmission:
*Low power consumption, low temperature and high safety;
-Support mouse and keyboard extension;
*CAT-5e/6 follow the standard of IEEE-568B

Specifications

:
Length of CAT-6/CAT-5E cable between Rx and TX ---------------------Up to 60 meters
HDMI Input 1080p/1080i/720p/576p/576i/480p/480i
HDMI Output-------------1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth---------------150MHZ
Max baud rate-------------- 4.5G bps
Input video signal----------- 0.5 ~ 1.5V olts p-p
Output DDC signal---------5Volts p-p (TTL)
Input HDMI cable distance------------- 10m AWG26 HDMI standard cable
Output HDMI cable distance---------------------- 15m AWG26 HDMI standard cable
TX Max working current -------------450mA
RX Max working current-----------------------350mA
Power adapter format----------------Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +45 C)
Operating Humidity range 5 to 90%RH (No Condensation)
Package:
1* transmitter
1* receiver
2*DC5V power Plug
1* One USB A-B cable
