    (with AU Plug)(1 RX only)20Km HDMI KVM Fiber Extender over SC Fiber Optical Cable HDMI USB to Fiber Extender Transceiver Transmit Support Mouse Keyboard

    • (with AU Plug)(1 RX only)20Km HDMI KVM Fiber Extender over SC Fiber Optical Cable HDMI USB to Fiber Extender Transceiver Transmit Support Mouse Keyboard
    +
    +
    Overview
    Specs
    Reviews
    Introduction:
    The extender provides extension of HD signals long distances over a single Fiber, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
    Features:
    Transmits HD video and audio signals up to 20KM over a single Fiber
    Support video resolution up to 1920*1080P@60Hz
    Support IR signal transmission(20KHz~60KHz)
    Support keyboard and mouse
    Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch, distribution function is realized
    Compliance with HD V 1.3 and For HDCP 1.2 standard
    High compatibility, can auto-match source and display device
    Built-in automatic adjustment system, make the image smooth, clear and stable
    Built-in ESD protection system
    Simple to install, plug and play
    Specification:
    Standards: For HD V 1.3; for HDCP 1.2
    Maximum pixel clock: 165MHz
    Maximum data rate: 6.75G bps
    Resolution: 1920X1080P@60Hz
    Connector: HD-A
    Impedance: 100
    PC: Type B USB interface; connect to pc;
    K/M: connect USB keyboard and mouse;
    Interface: 3.5 mm seat
    IR frequency: 20-60kHz
    Fiber: Interface SC
    Fiber Model: Single mode
    wavelength: Single mode 1310nm; 1550nm
    bandwidth: 6.25G bps
    Transmission distance: MAX up to 20KM

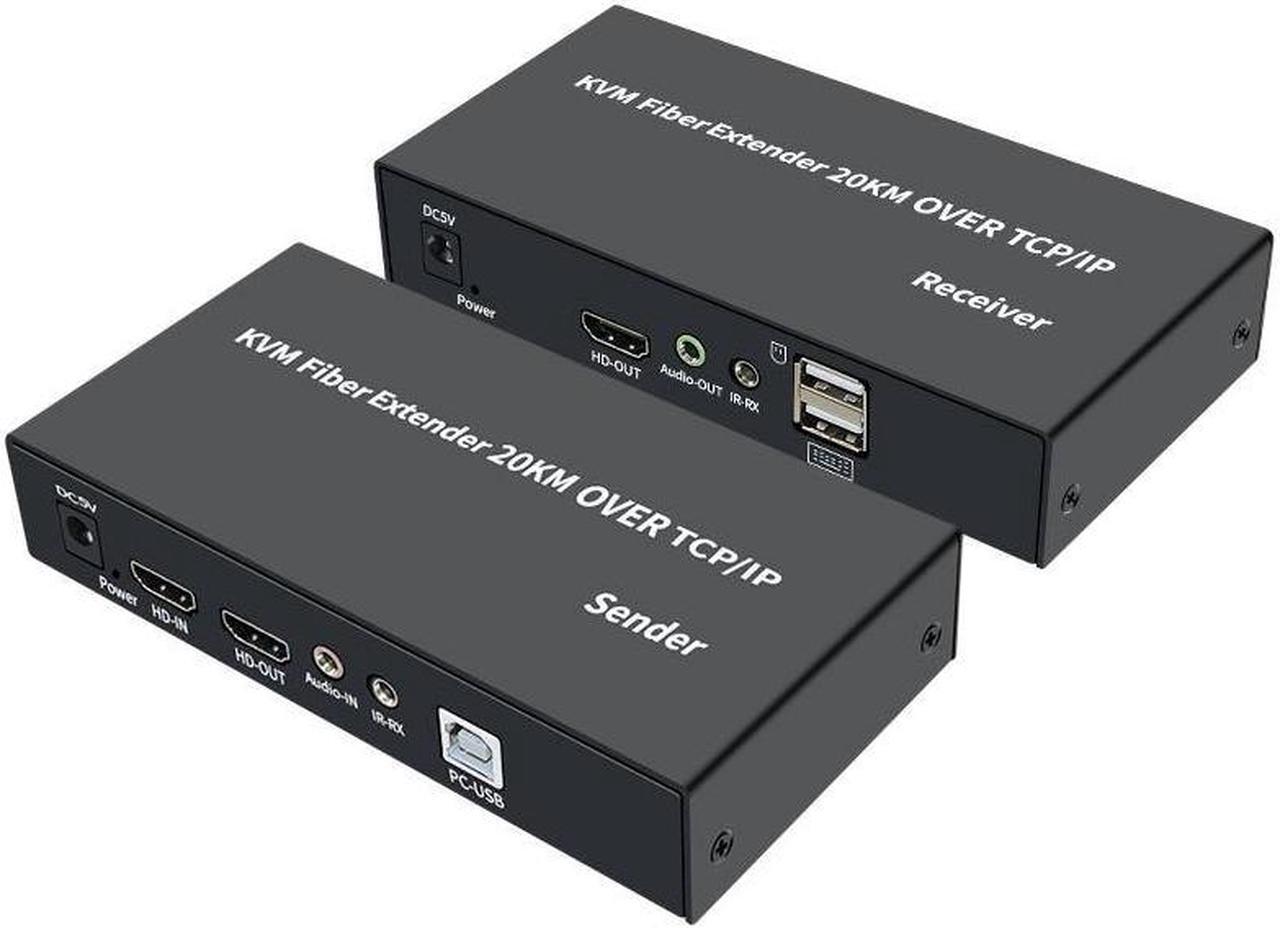

    Package: (for 1 TX and 1 RX)
    1 x HDMI transmitter
    1 x HDMI receiver
    1 x USB A-B Cable
    1 x Power adapter
    1 x User manual

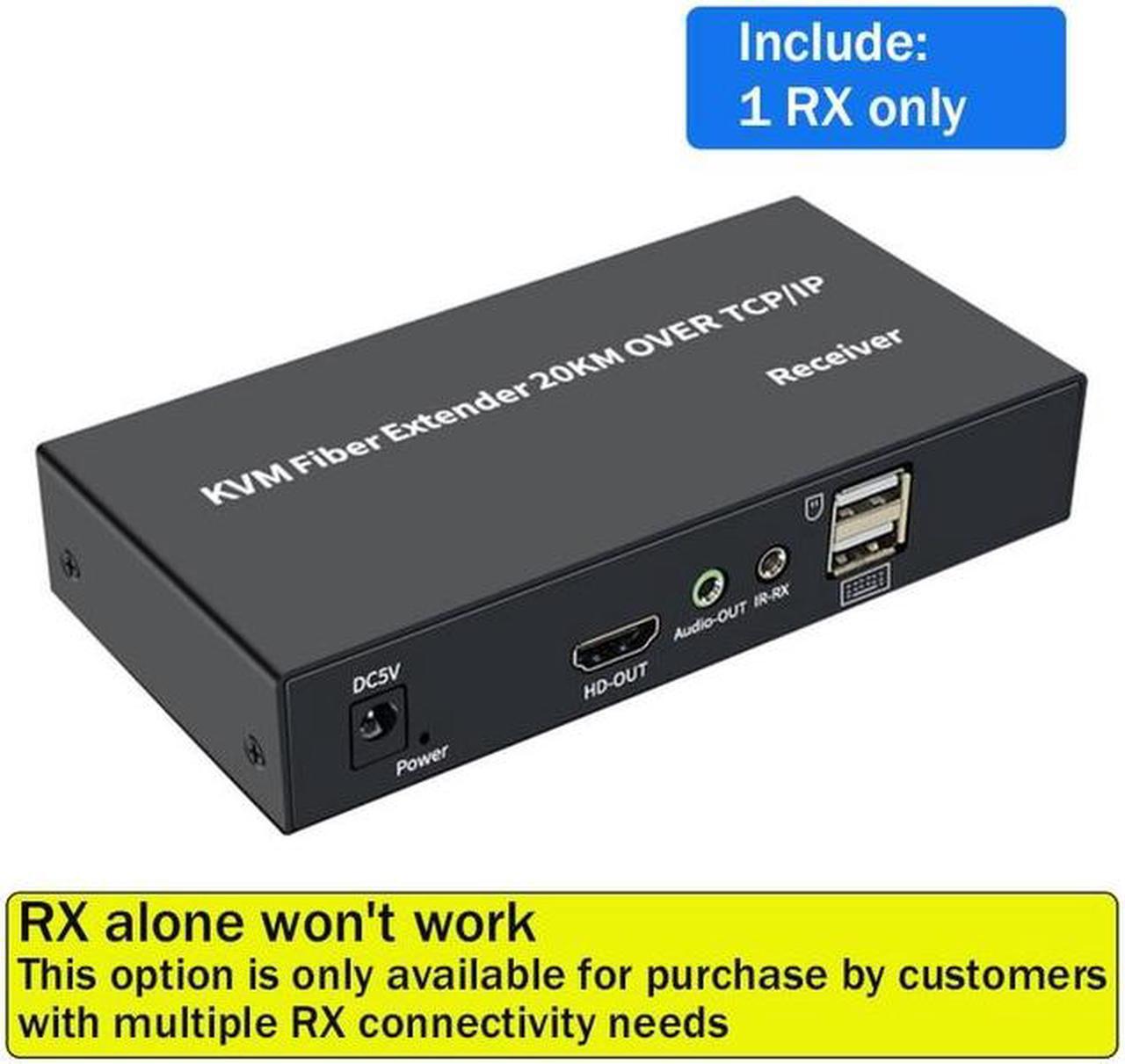

    Package: (for 1 RX only )
    1 x HDMI receiver
    1 x IR cable
    1 x Power adapter
    *RX alone won't work.
    *This option is only available for purchase by customers with multiple RX connectivity needs.
