Warm Tips:
1) to get 8K@60hz, 4K@120HZ resolutions, both the video source and display must be HDMI 2.1.
2)HDMI ATC certified Ultra High speed HDMI 2.1 cable is needed to work with this 8K HDMI 2.1 Switch.

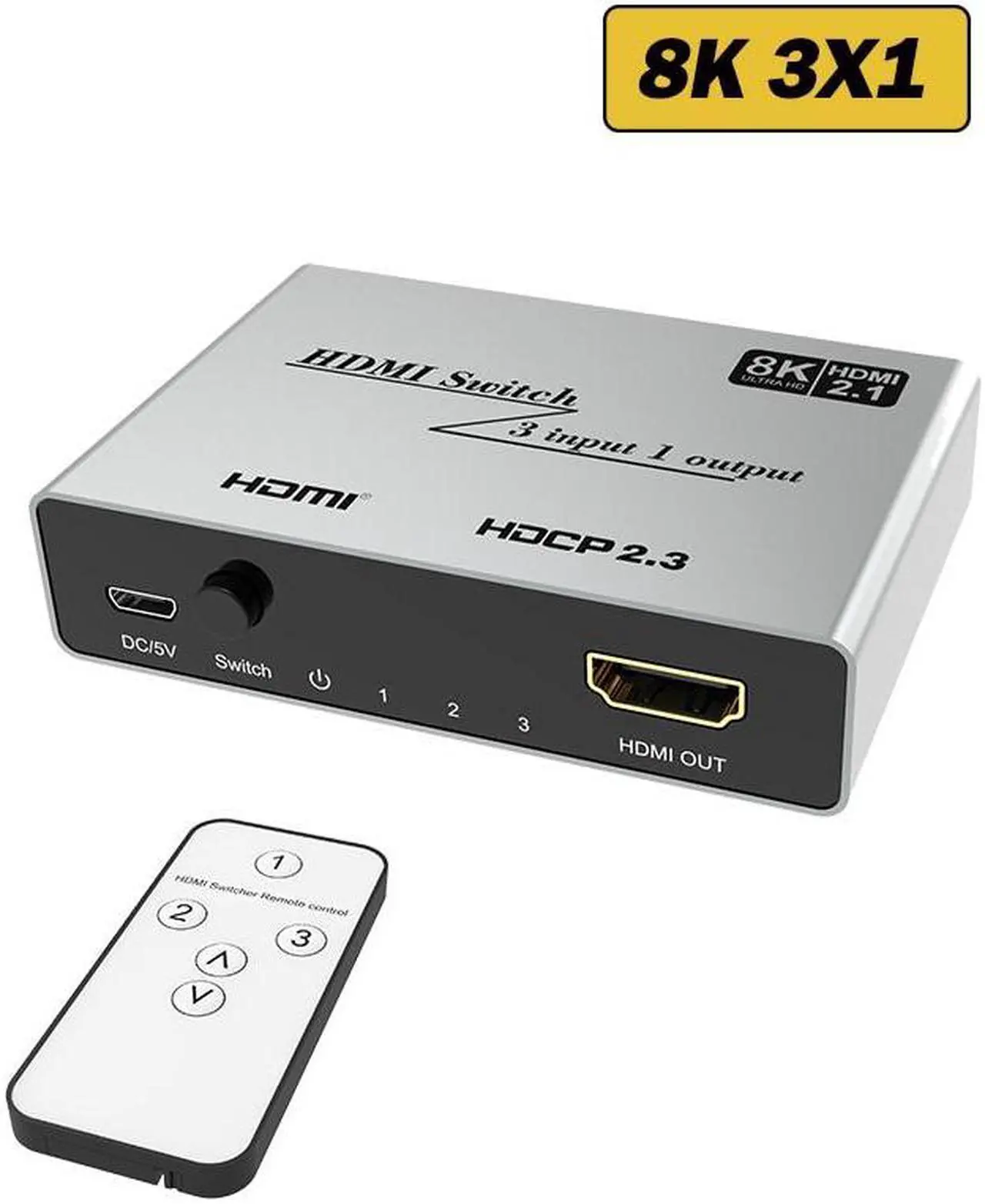

Description of 8K 3X1 Switch as a reference:
This 8K HDMI 2.1 Switch offers you a great way to tidy up your home theater. It allows you to connect up to 3
HDMI sources, and you can switch the HD sources very conveniently by using the easy-click switch button
on the unit. This Switch is of HDMI 2.1 version and supports all features of hdmi 2.1.
8K@60Hz, 4K@120HZ ready
8K HDMI 3x1 switch: Support up to 8K@60Hz 4K@120HZ resolution, provide you with transfer rates up to 48Gbps
and backward compatible with all previous HDMI-compatible standards. (You need connect standard Hdmi V 2.1
cable to enjoy visual effects)
Support 8K@60Hz / 4K@120HZ / 2K@144HZ / 4K@60HZ / 1080P@60HZ
Support HDMI 2.1 / HDCP 2.3
Support Dynamic HDR
Support max. Bandwidth 600MHZ
Support max. Transmission rate 48GBPS
Support INPUT/OUTPUT HDMI Cable 2m AWG24 HDMI standard cable
Support video color format 24/30/36 bit
Audio Mode: Support DTS-HD/Dolby-trueHD/LPCM 7.1 /DTS/Dolby-AC3/DSD HD (HBR)
Automatic audio and video synchronization
All mode Support RGB 4:4: 4
/YCbCr 4:4: 4 /YCbCr 4:4: 2 /YCbCr 4:2: 0
Support color depth color
Support uncompressed audio, such as LPCM

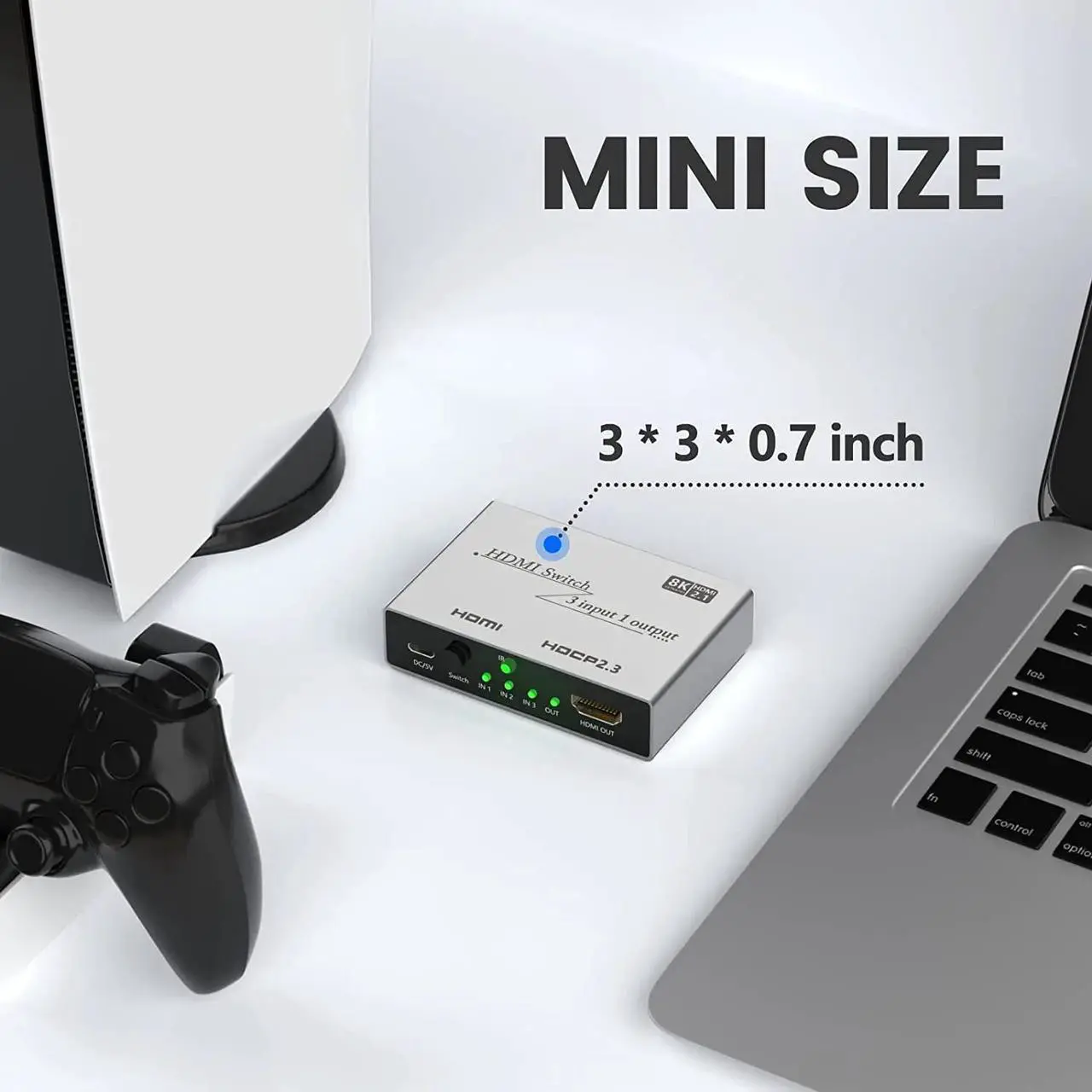

Size: approx. 83x55x20 mm
Weight: approx. 82g

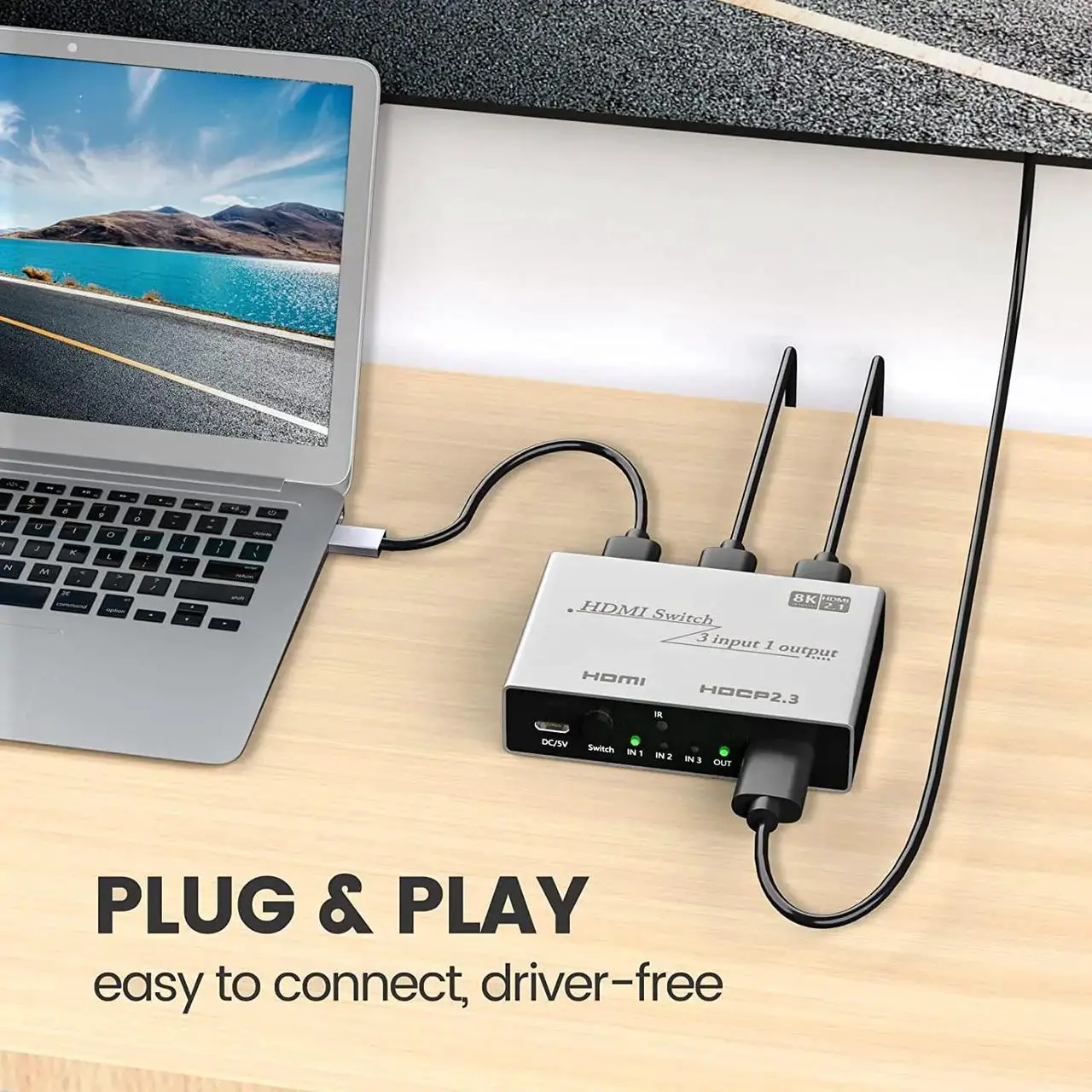

Plug and Play
High quality
Package contents:
1 x HDMI Switch (options)
1 x USB power cable
1 xUser Guide
1 xRemote Control without battery
