(with US Plug)(Only 1 Receiver)120M HDMI Extender over Rj45 Cat6 Cable 4K HDMI Ethernet Splitter Extender Support Cascade Connection Video Extension Converter

Warm Tips:
Cat6/6a or Cat 7 Cable is recommended, Cat5e is not good enough, do not advise use!
Note Pls: the receiver cannot be used alone, it needs to be used together with the transmitter.
We suggest the max connection quantity is up to 12 Receivers.
The distance for the first two up to 120M, the rest reach 100M ( between any two Receivers /Transmitters)
Introduction:

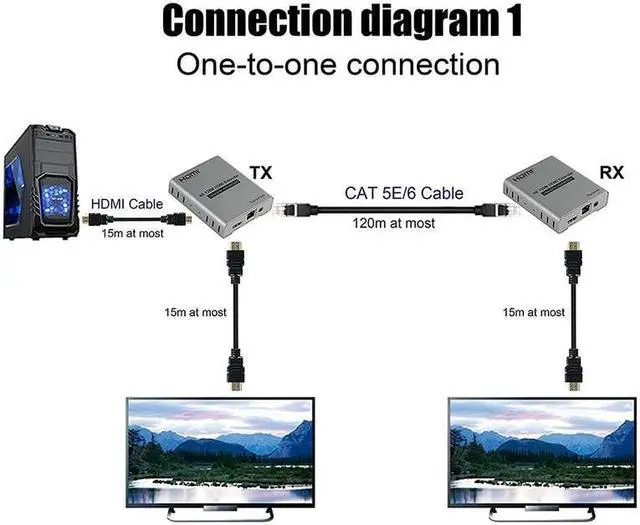

The 4K 120M HDMI extender uses one single cat-5E or cat-6 (recommended) cable
instead of HDMI cable, you can extend the 4K@30Hz signal to 120 meters.
The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.
Features:

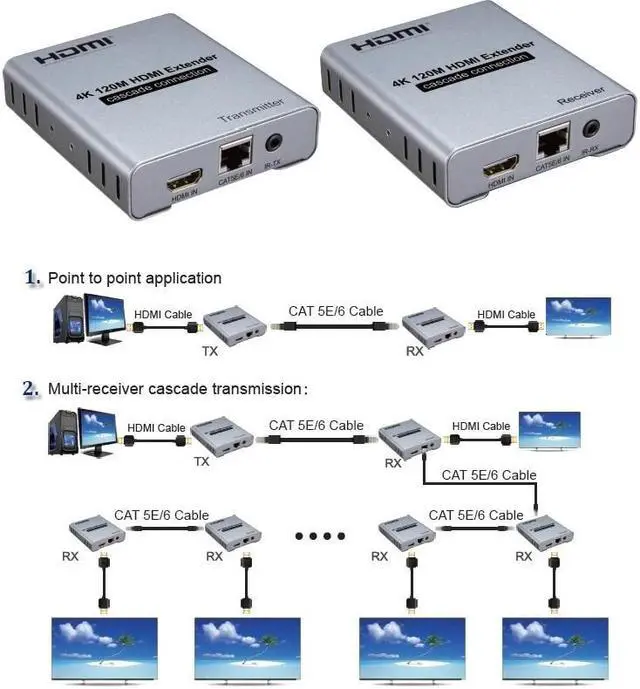

1:120 M long distance transmission:

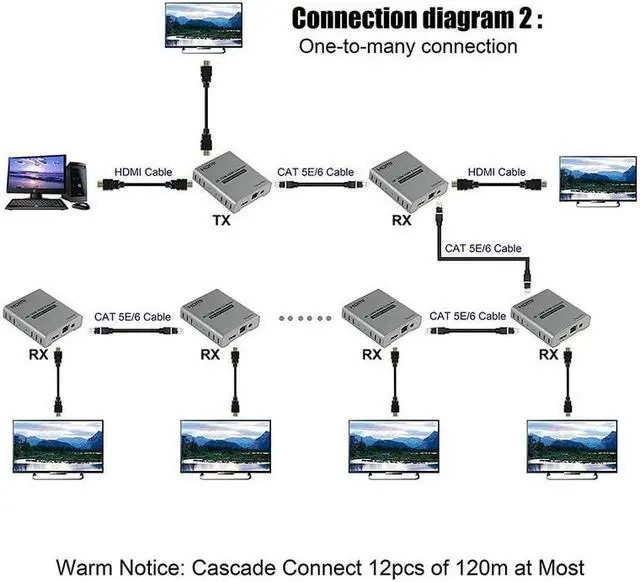

2: Multi-receiver cascade transmission:
3: Low power consumption, low temperature and high safety.
Length of CAT-5E/CAT-6 cable between Rx and TX............ up to 120 meters
HDMI input......................... 4K/1080p/720p/576p/576i/480p/480i
Support audio format........................ DTS/Dolby/LPCM
HDMI output............... 4K30Hz/1080p/720p/576p/576i/480p/480i
Max bandwidth.............................. 340MHz
Max baud rate....................................... 3.4G bpsx3
Input video signal................................. 0.5 ~ 1.5V olts p-p
Output DDC signal............................. 5Volts p-p (TTL)
Input HDMI cable distance.......... 15m AWG26 HDMI standard cable
Output HDMI cable distance...... 15m AWG26 HDMI standard cable
TX Max working current...................................... 350mA
RX Max working current...................................... 200mA
Power adapter format..................
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range.............................. (-15 to +55)
Operating Humidity range......................... 5% to 90%RH (No Condensation)
Dimension (L x W x H)........................................ 94x84x24 (mm)
TX Weight............................................................. 223g
RX Weight........................................................... 223g

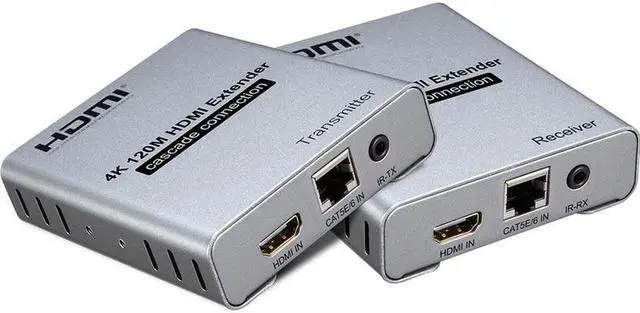

Package Content: (for 1TX and 1RX)
1PCS Transmitter
1PCS Receiver
1Pair IR Cable
2PCS Power Adapter
1PCS User Guide

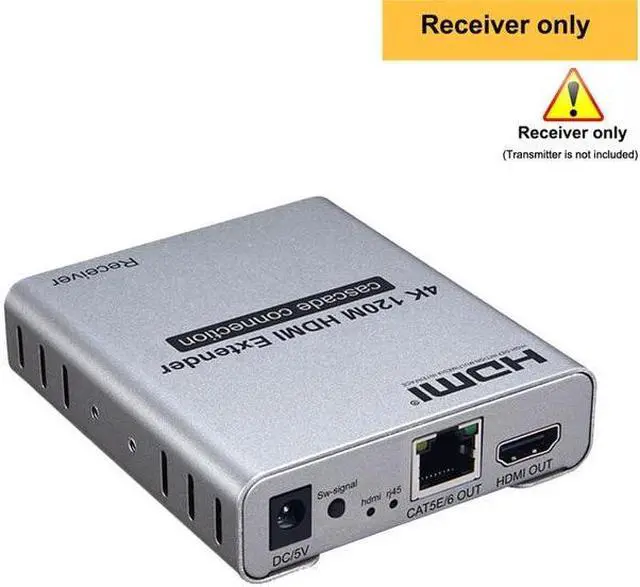

Package Content: (for Only 1 Receiver)
1PCS Receiver
1Pair IR Cable
2PCS Power Adapter
1PCS User Guide
Please note:
Receiver can not work independently.
If you only buy "Only 1 Receiver", "Transmitter" is not included
Please purchase according to your needs, We'll send you the options for your purchase.
