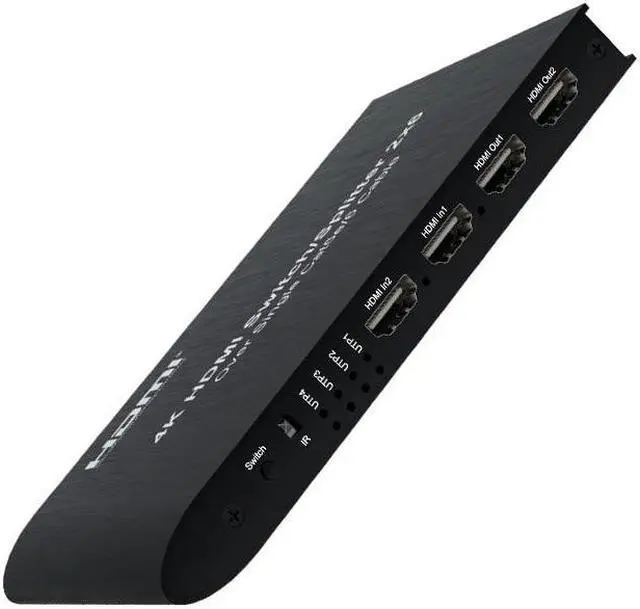

(AU Plug)(1 Pcs 2x6)4K HDMI Switch Splitter Extender 2x6 over Ethernet Cat5e/6 100M HDMI Switch 2 in 6 out with 2 Loop-out + 4 Channel RJ45 UTP out

Notice:

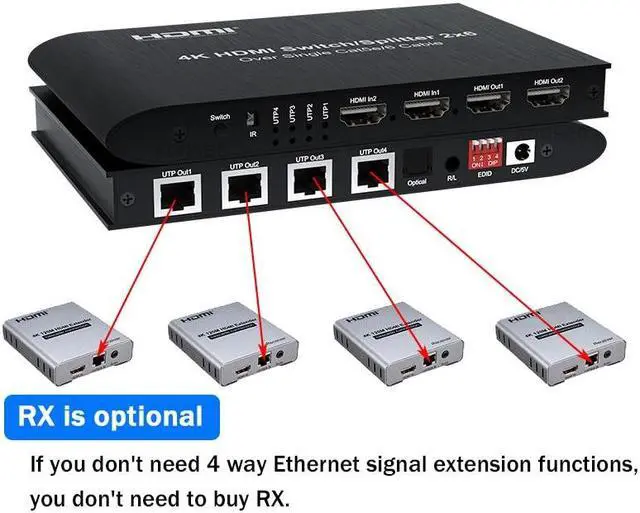

*HDMI switch splitter 2x6 Host and HDMI receiver extender sold separately.
*Please choose according to your needs. Usually, 1 piece of HDMI switch splitter 2x6 Host can be paired with 4 Pcs HDMI receiver extender at most.
*If you don't need the function of 4 UTP extension ports, you don't need to buy additional HDMI receiver extender.
*The first main picture is the effect picture, and it is not the content of the first picture that you want to receive if you buy any option.
4K HDMI 2x6 Switch/ Splitter/Extender
Introduction:
This 2x6 HDMI Splitter/Extender over single Cat 5E/6 can connect 2 HDMI signals sources with multiple HDMI
display terminals, It can easily split 1 or 2 HDMI signal to more than one HDTV or HDMI projector.
And it can extend HDMI signal up to 100m by one cat5E/6 ethernet cable-----this function needs to be used
with 4K RJ45 Cat6 ethernet RX/ Receiver-- Optional
Features:
1. Long distance transmission up to 100M.
2. Video transmission up to 4K/30Hz, and support 720P/1080P standard regular format.
3. Support 4-ways UTP extension
SPECIFICATIONS:
HDMI version........................................................................... HDMI 1.4 /HDCP 1.4
HDMI resolution.......................................... 4K30/1080p/1080i/720p/576p/576i/480p/480i
Support video format.............................................................. 24/30/36 bit deep color
Support audio format.............................. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI input port.................................................................................................. 2
HDMI output port................................................................................................ 2
RJ45 port............................................................................................................ 4
Max bandwidth....................................................................................... 340MHz
Max baud rate.................................................................................. 3.4G bps x10
Input cable distance......................... AWG26 HDMI 1.4 standard cable up to 15 meters
Output cable distance................................. Cat5e/cat6 standard cable up to 100 meters
Max working current................................................................................. 1600mA
Power adapter format........................... AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/2A
Operating Temperature range.......................................................... (-15 to +55)
Dimension (L x W x H)................................................................ approx. 189x129x 25.3 (mm)
Weight........................................................................................................ approx. 437g

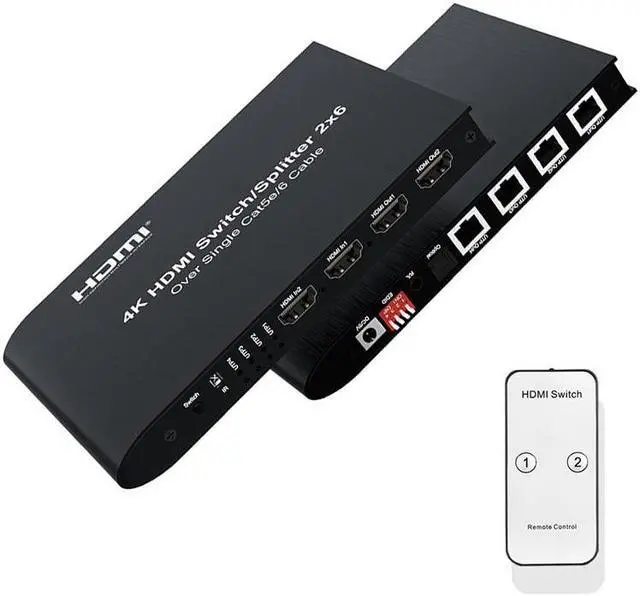

Remote Control Introduction:
1) Press the key 1 to switch to the input 1, L1 indicator lights up.
2) Press the key 2 to switch to the input 2, L2 indicator lights up.

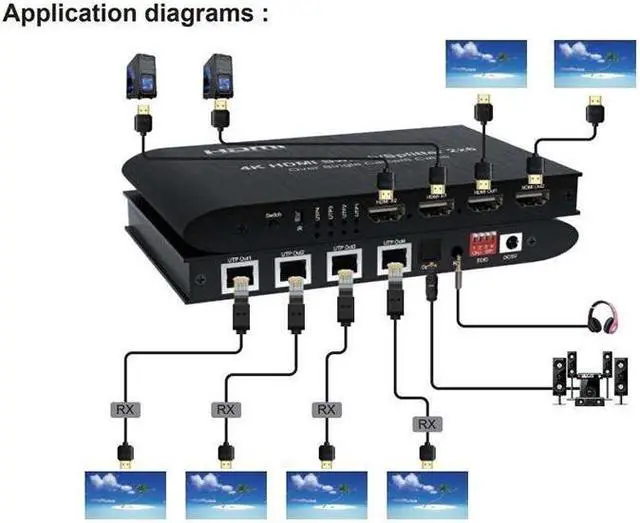

Application diagrams:
Connection Diagrams:
Operating and Connecting:

1. Use HDMI cable connect the HD signal source to the input of HDMI Splitter/Extender.

2. Use HDMI cable connect the HD displayer device to the output of HDMI Splitter/Extender.
3. it can extend to 100 between receiver and transmitter by using cat5E/6 cable instead of HDMI cable.
(CAT6/6e cable is recommended)

4. Connect Power Adapter with the HDMI Splitter/Extender.

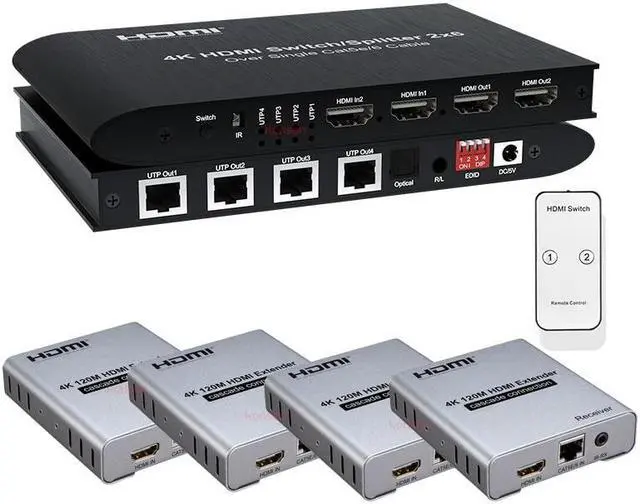

Package Content for the option of " 1
Pcs 2x6 ":
1. 2x6 HDMI Switch/Splitter 1pcs
2. IR Remote Control without battery 1pcs

3. Power adapter 1pcs
Package Content for the option of " 1 Pcs 120M
RX ":
1. 120M HDMI extender-receiver only 1pcs

2. Power adapter 1pcs
