HDMI KVM USB Extender 1080P 60Hz, HDMI KVM USB Extender Over Cat5/6 Ethernet Cable Signal Extension to 196FT/60M Support USB Keyboard Mouse Plug & Play (Transmitter and Receiver)

HDMI KVM Extender with POE & Loop Out 1080P HDMI USB Extender 60m No Loss RJ45 to HDMI Extender Transmitter Receiver over Cat5e/Cat6

Description:

HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Specifications:

Video

Standards: HDMI 1.4b; HDCP 1.4 and DVI compliant

Maximum pixel clock: 300MHz

Maximum data rate: 10.2Gbps

Resolution: 1920X1080P@60Hz

Connector: HDMI-A

Impedanc: 100ohm

USB

Interface: PC: Type B USB interface; connect to pc;

K/M: connect wired or wireless USB keyboard and mouse

USB signal: HID Signal

CAT

Interface: RJ45/IEEE-568B

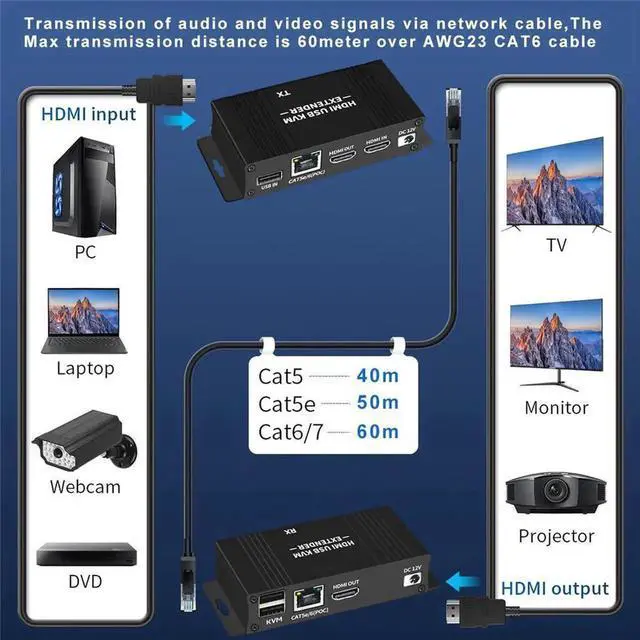

Transmission distance: CAT5:40m/131ft,CAT5e:50m/164ft,CAT6:60m/196ft

Features:

1. Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
2. Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
3. Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

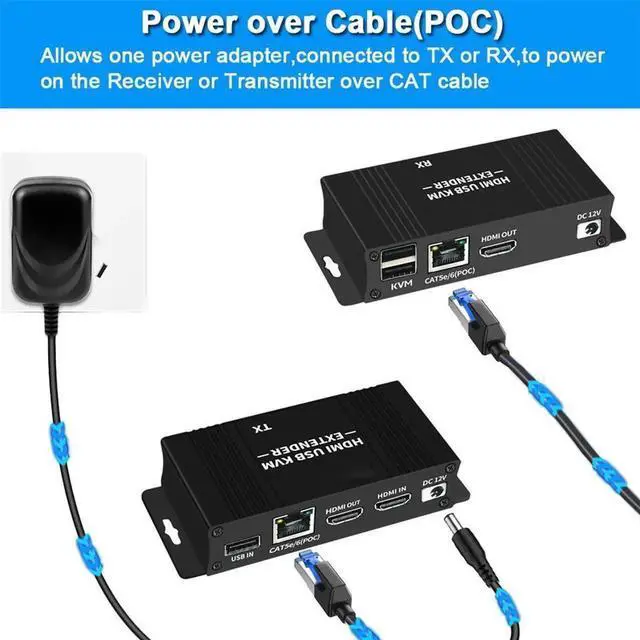

4. POC function:Power over CAT cable,only need one power adapter;
5. HDMI loop out function:The transmitter with one HDMI local loop out;
6. Uncompressed mode:ZERO Delay,No loss;
7. KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
8. Male to male:one TX to one RX applicataion;
9. Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
10. Built-in automatic adjustment system:make the image smooth, clear and stable;

Note:

1. the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard,USB camera,Scanner,USB flash driver ,printer etc.
2. For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.

HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Long range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;

Video resolution: Up to 576P, 720P, 1920x1080P@60Hz, 3D, HDR;

Audio format: LPCM2/ 5.1 / 7.1, Dolby Digital, DTS 5.1, Dolby Digital+;

HDMI loop out function: The transmitter with one HDMI local loop out;

KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;

Male to male: one TX to one RX applicataion;

Video standard: compliance with HDMI 1.4 b and HDCP 1.4, and compliant DVI standard;

Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;
