USB 3.0 Displayport+HDMI Dual Monitor KVM Switch for 4 PCs, 4K 60Hz KVM Switch 2 Monitors 4 Computers, with Audio Microphone Output and 3 USB 3.0 Ports, HDMI+DP Monitor KVM Switch for 4 PCs 2 Monitors

4 Port USB 3.0 Dual Monitor (DP+ HDMI ) KVM Switch 4K@60Hz

1. With this 4 port USB 3.0 dual-monitor DisplayPort + HDMI KVM Switch (DisplayPort + HDMI), you can easily control 4 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.
2. Note: Each input source device must be connected to two dual monitors.

Product Features

1. 4 computers share one set of keyboard, mouse, 2 monitors, and more USB 3.0 peripherals.
2. This dual monitor DisplayPort HDMI KVM switch Supports maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card.);
3. Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
4. 2 Switching modes: Button switch and wired remote.
5. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
6. No complicated installation is required, and non-professionals can easily operate it.
7. Independent Audio Microphone output.

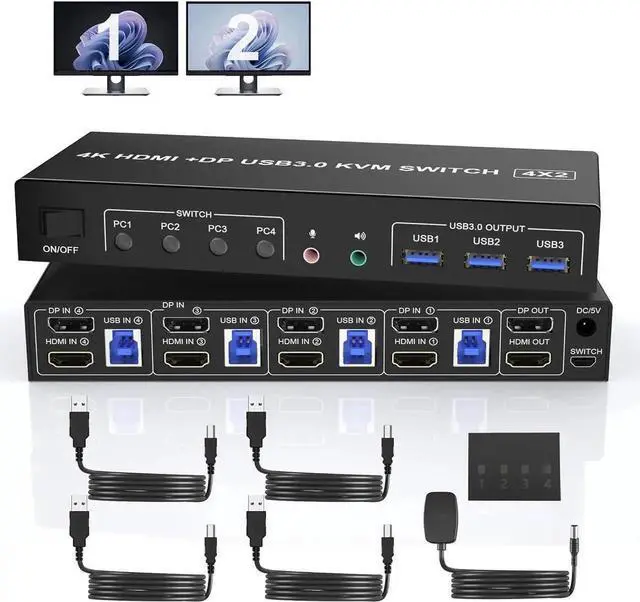

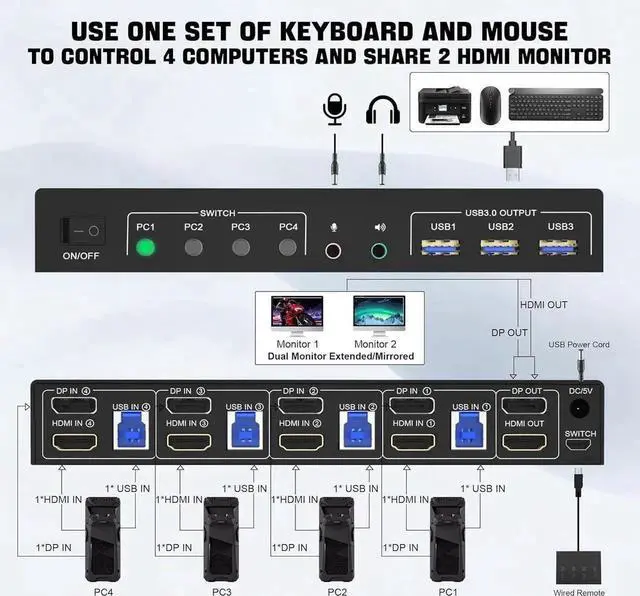

Installation steps:

1. Insert the DC/5V adapter into the KVM ;

2. Plug the DP/HDMI cable into the KVM and monitor;(Output)

3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP/HDMI cables are not included)(Input)

DP IN1 + HDMI IN1 + USB IN1=PC1

DP IN2 +HDMI IN2 + USB IN2=PC2

DP IN3 + HDMI IN3 + USB IN3=PC3

DP IN4+ HDMI IN4+ USB IN4=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note:

1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 2 HDMI cables connected to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.

3. Before purchasing this DP/HDMI dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.

4. Note: DP/HD-MI cables are not included

USB 3.0 Dual Monitor KVM Support 4K@60HZ

1. Supports high resolution up to 3840*2160@60Hz and downwards.
2. Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.

1. This KVM switch 2 monitors 4 computers with 3 USB 3.0 Ports for keyboard, mouse, printers, USB headsets, or webcams.

Supports Separate Audio and Microphone Output

1. This 2 monitor 4 computer kvm comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

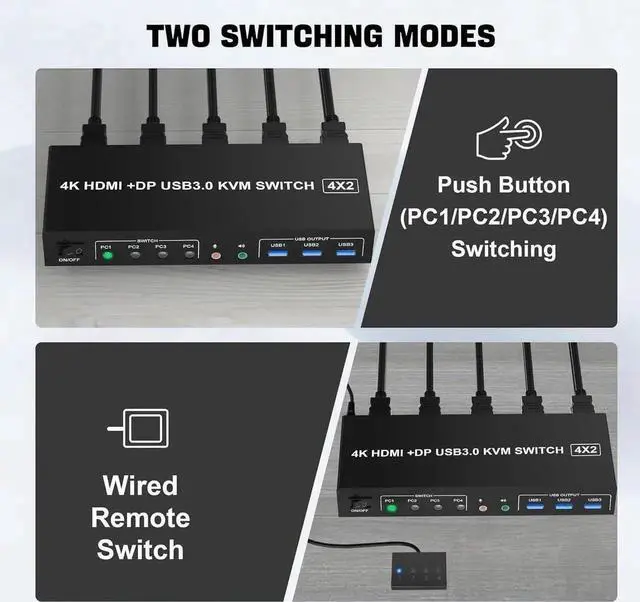

Dual Monitor KVM Support 2 Switching Modes

1. Quickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
2. Please note: This dual monitor KVM switch DisplayPort HDMI does not support hotkey switching.

DisplayPort HDMI Dual Monitor KVM Switch: This KVM Switch allows you to control 4 computers or laptops with one set of keyboard, mouse, and single or dual monitors to make your workspace tidy and efficient.

Note: This dual monitor KVM supports HDMI + DP dual-screen display (This function requires your PC to support dual display or multi-display, then you can use this KVM to achieve 4 PCs to share 2 monitors

4K@60HZ: Supports a maximum resolution of 4K@60Hz, and is compatible downwards. Also supports separate audio and microphone output.

with 3 USB 3.0 Ports: with 3 USB 3.0 ports which can recognize wired/wireless keyboard mouse, printer, or other USB devices. USB 3.0 has a faster data transfer speed of up to 5Gbps, backward compatible with USB 2.0 / 1.1.

Support 2 Switching Modes & LED Indicator: 1. Buttons switching, just need one click switch to the designated computer; 2. Wired remote switch. LED indicates the active computer. The package comes with an external power.
