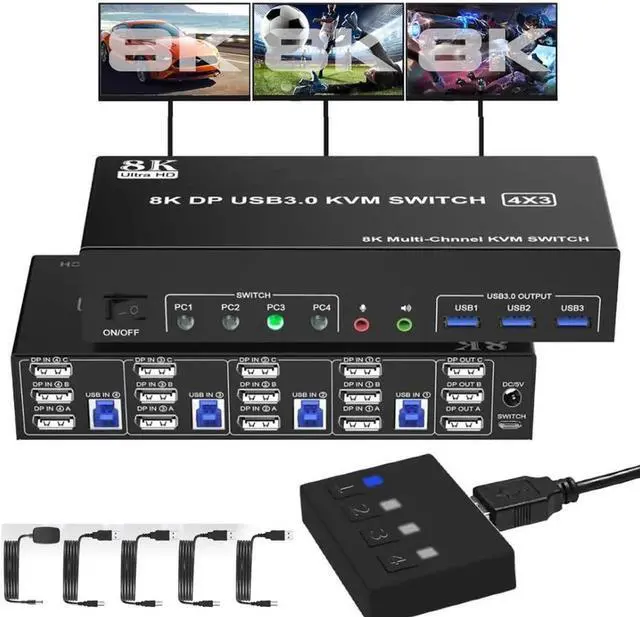

4 Port 8K Displayport USB 3.0 KVM Switch 3 Monitors 4 Computers, DP1.4 Triple Monitor KVM Switch with Audio Microphone Output and 3 USB3.0 Ports, Displayport KVM Triple Monitor Keyboard Mouse Switcher
- [USB 3.0 KVM Switch Triple Monitor DisplayPort 4 Port ] This 4 IN 3 OUT DP KVM Switch is for you to control them using one set of keyboard, mouse and single or dual or triple monitors to make your work space tidy and efficient.
- [Ultra HD 8K@60Hz 3 Monitor KVM] Supports max resolution of 8K@60Hz and downward compatible DP 1.2.

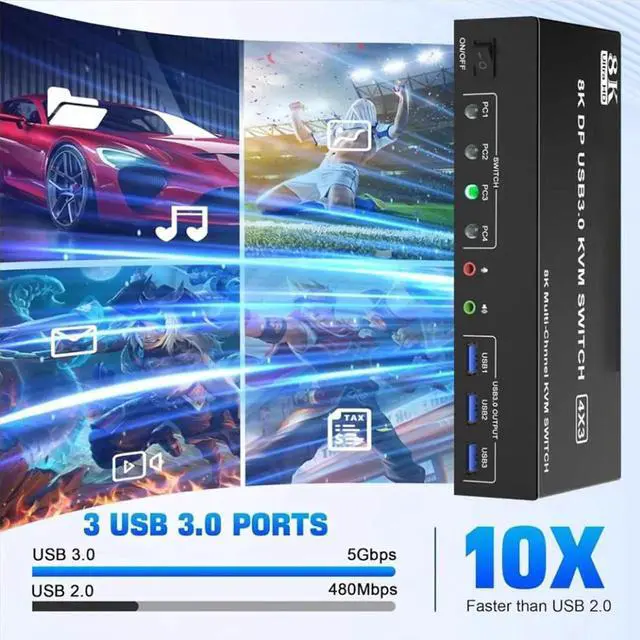

- [with 3 USB 3.0 Ports & Microphone Output] with 3 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps. KVM also supports separate audio and microphone output.
- [2PC/3PC/4PC are all suitable] You may have 4 computers currently, or you may only have 2 computers now, but you may need to use 3 or 4 computers in the future, then you can choose this switch.
- [2 Switching Mode & LED Indicator]1. Toggle selection on front panel; 2. Wired remote switch. Compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most OS.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

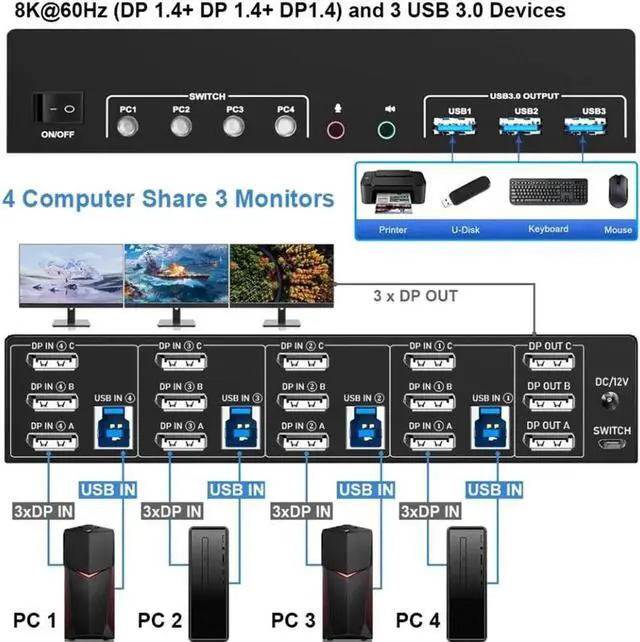

1. Insert the DC/5V adapter into the KVM;
2. Plug the DPcable into the KVM and monitor; (Output)
3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input)
DP IN1 A + DP IN1 B+DP IN1 C + USB IN1=PC1
DP IN2 A + DPIN2 B+DP IN2 C + USB IN2=PC2
DP IN3 A + DPIN3 B+DP IN3 C + USB IN2=PC3
DP IN4 A + DPIN4 B+DP IN4 C + USB IN2=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note: 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP cables+1 USB cable) connect to the KVM. 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal. 3. Before purchasing this DP triple monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwise, the KVM will not be available. 4.
Note: DP cables are not included
