Universal docking for legacy and current notebooks
Get to work fast with one cable from your USB-A- and USB-C-enabled notebooks to your displays, devices, and wired network with the flexible, compact HP USB-C/A Universal Dock G2. The dock is driven by DisplayLink and compatible with HP notebooks, MacBook computers, and other notebooks.
Dimensions: (H x W x D) 4.80 x 4.80 x 1.77 in (122 x 122 x 45 mm)
Weight: 1.53 lbs (0.695 kg)
Compatibility:
Tested and supported on select HP commercial notebooks. For HP notebook compatibility please check on HP. Tested and supported on the following 3rd party notebooks: MacBook Pro 16 2020 (Intel Coffee Lake), MacBook Air 2020 (Intel Ice Lake), MacBook Pro 13 2020 (M1 chip), MacBook Air 13 2020 (M1 chip), Dell 5300 Chrome Enterprise 2020 (Whiskey Lake), Dell Latitude 5400 2020 (Whiskey Lake), Dell Latitude 7400 2020 (Whiskey Lake), Dell Latitude 7420 2021 (Tiger Lake-U), Lenovo Thinkbook 14 2020 (Ice Lake), Lenovo T14 2020 (AMD Renoir), and Lenovo X1 Carbon G8 Thinkpad 2020 (Whiskey Lake)
External Monitor Support (support maximum 3 external display):
For hosts that support DisplayPort 1.4 with Display Stream Compression: 3x FHD @ 60 Hz 3x QHD @ 60 Hz 3x 4K @ 60 Hz
For hosts that support DisplayPort 1.3/1.4: 3x FHD @ 60 Hz 3x QHD @ 60 Hz 1x 4K @ 60Hz
For hosts that support DisplayPort 1.2: 3x FHD @ 60 Hz 2x QHD @ 60 Hz 1x 4K @ 60Hz
Ports and Connectors:

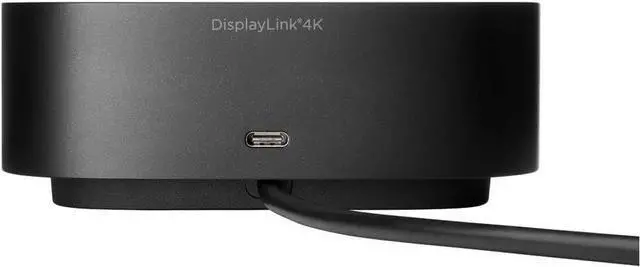

Front: 1 x USB-C port with data and power out (15W);
Side: 1 x USB-A 3.2 Gen 1 charging port, 1 x Combo audio Jack

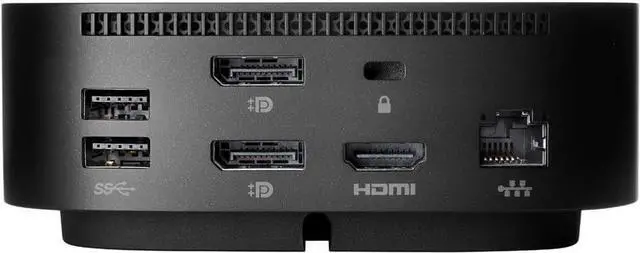

Back: 2 x USB-A 3.2 Gen 1 charging ports, 2 x DisplayPortTM 1.2 ports, 1 x RJ45 port (10/100/1000), 1 x HDMI 2.0 port, 1 x Standard lock slot
Power To System
Up to 100W via USB-C. Up to 75W on non HP machines. Separate AC power needed for HP ZBooks that require more than 100W power delivered via USB-C alt mode.
Networking
Supports 1 Gb of Ethernet
Operating System
Windows 11 21H2 Windows 11 22H2 Windows 10 RS4 Windows 10 RS5 Windows 10 19H1 Windows 10 19H2 Windows 10 20H1 Windows 10 20H2 Windows 10 21H1 Windows 10 21H2 Windows 10 22H2 Windows 7 ChromeOS v92.0.4515.157 ChromeOS M92 (HP notebooks only) ChromeOS M93 (HP notebooks only) ThinPro 8.0 Windows 10 IoT Enterprise LTSC 2021 macOS Monterey v12.0 macOS Big Sur 11.5.2
Drivers
DisplayLink drivers must be downloaded either through the HP support site or via Microsoft Windows updates.
Future Proof Your Fleet
Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-, USB-C-, and Thunderbolt-enabled notebooks.
Single-cable solution
Add your accessories and up to three 4K displays3 to the dock. Then simply connect it to your notebook through a single USB-CTM cable to access your devices and charge your PC.
Backward compatibility

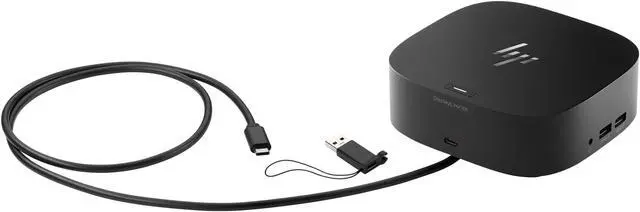

Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays. Use the optional HP 4.5 mm and USB-C Dock Adapter G25 for legacy device barrel charging.
Easily manage your commercial HP fleet
Help IT secure and remotely manage your deployed commercial HP notebooks and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.
Small footprint
Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.
Electronic asset management for your docks
Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.
Efficient firmware updates
Updating your dock fleet has never been easier. IT can save time by pushing dock firmware updates to managed notebooks for later installation on the dock, even when theyre disconnected from each other.
