1. The overall appearance is made of aluminum alloy, and the shape is simple and beautiful;
2. USB-A interface supports USB flash disk, card reader, mobile hard disk and other peripherals. The transmission rate of two USB-A 3.1 interfaces is 5Gbps, the transmission rate of two USB-A 2.0 interfaces is 480Mbps, and the transmission rate of one USB-A 3.1 interface is 10Gbps;
3. The USB-C interface can be connected to the USB flash disk/mobile hard disk and other related devices of the USB-C interface, with a transmission rate of 10Gbps;

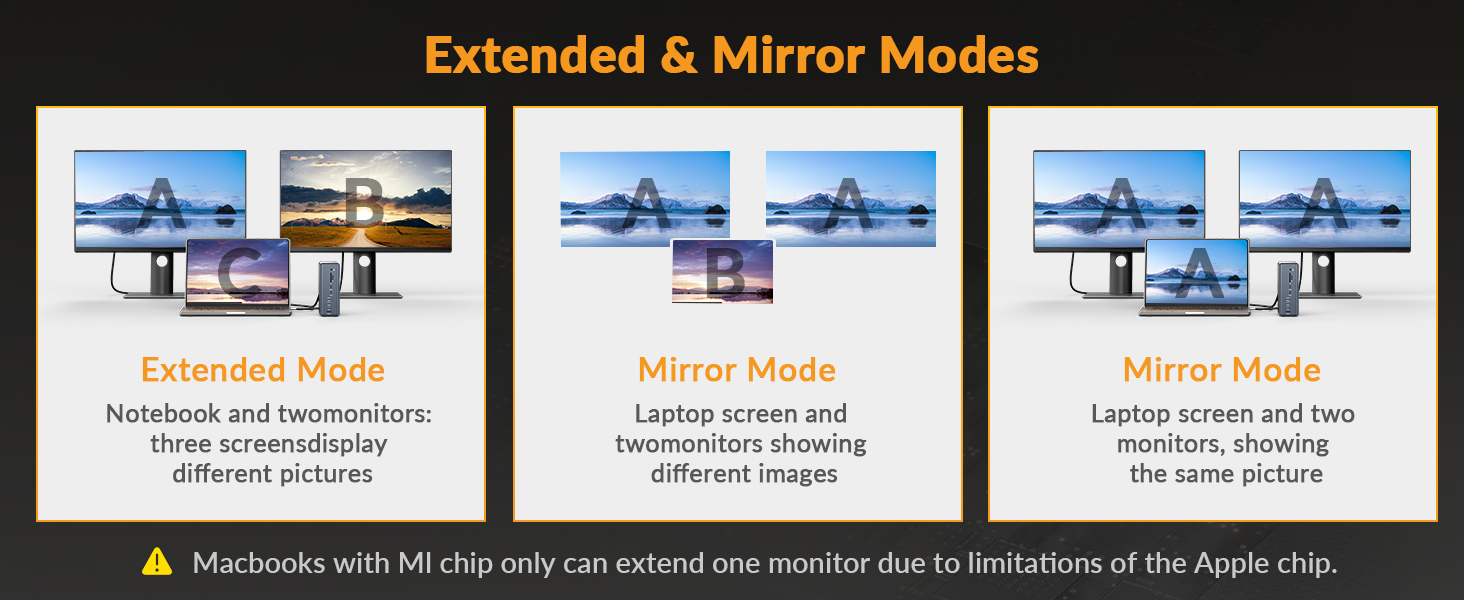

4. DP (1.4) interface can mirror or expand video display, supporting 4K@60Hz Clear resoluti;

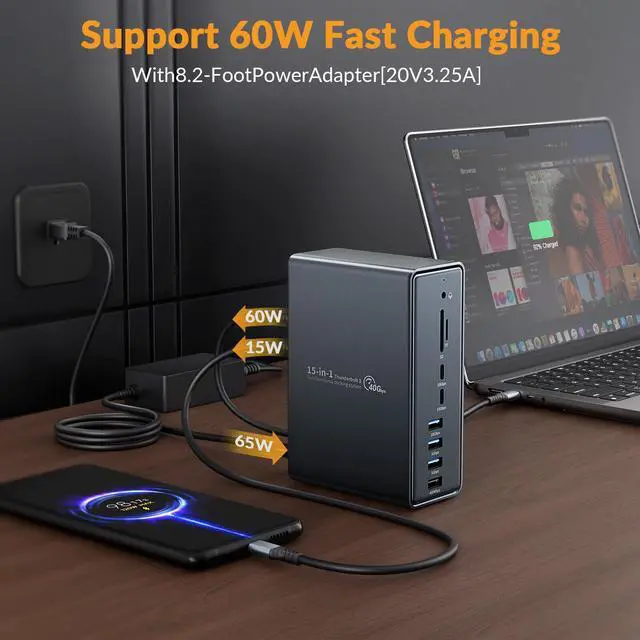

5. Thunderbolt input port supports PD 60W charging (5V/9V/15V/20V at 3A);

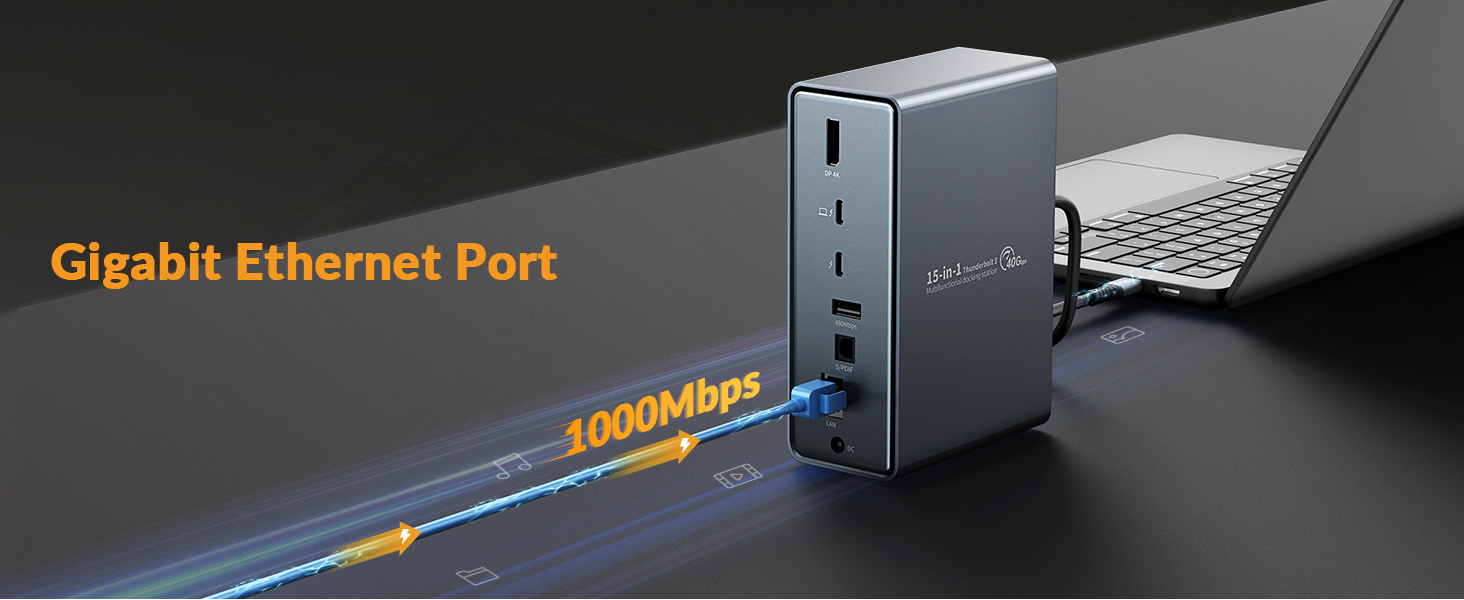

6. RJ45 network interface supports gigabit bandwidth at most;

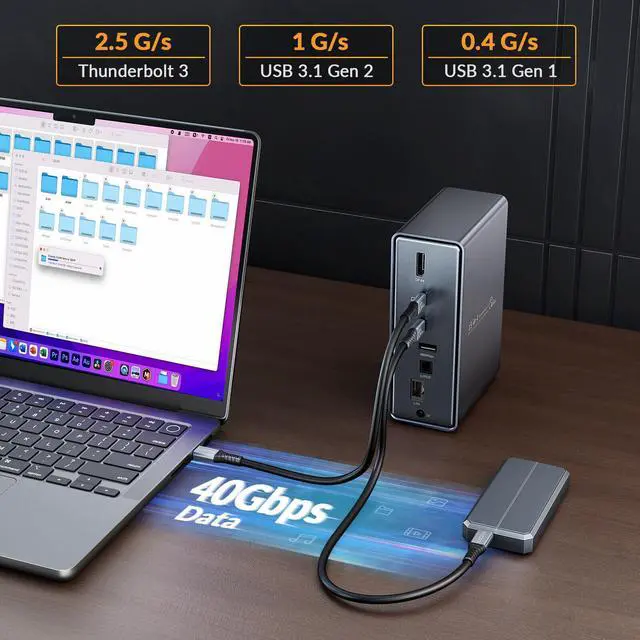

7. Thunderbolt 3 output port supports PD 15W charging (5V/3A), 40Gbps high-speed data transmission, and 3-layer daisy chain use;

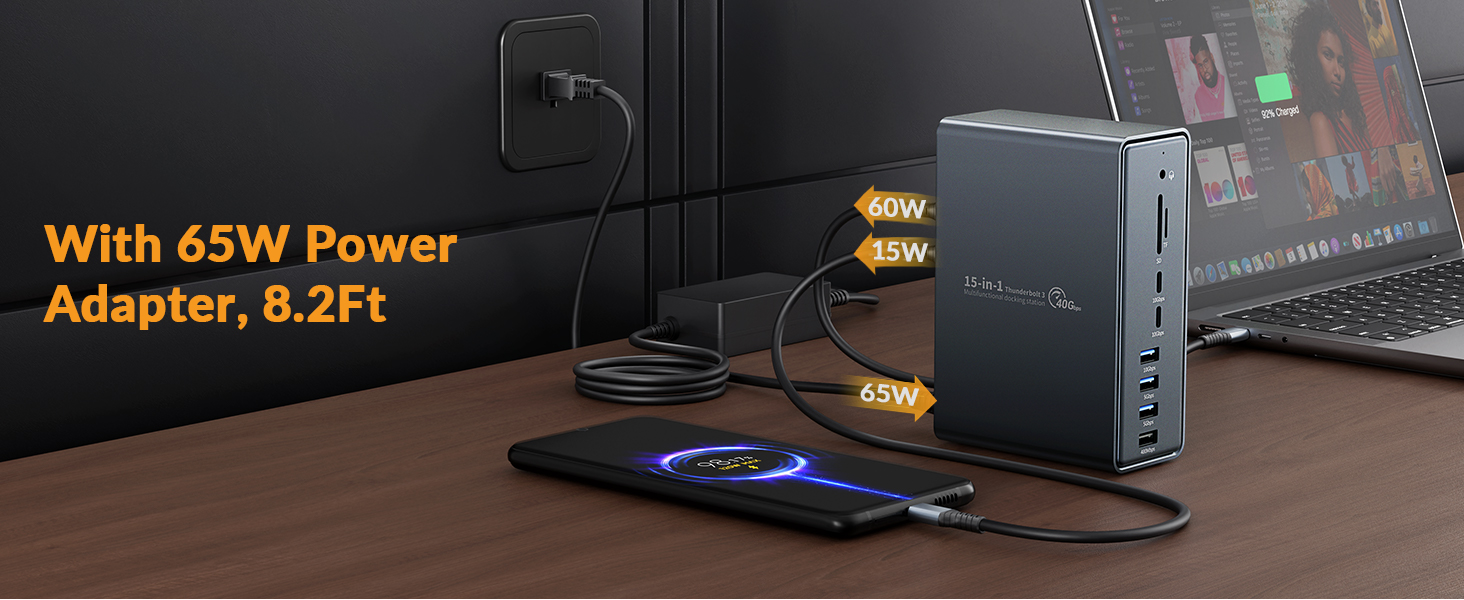

8. Equipped with 20V3.25A external power supply, sufficient power supply and stable transmission;

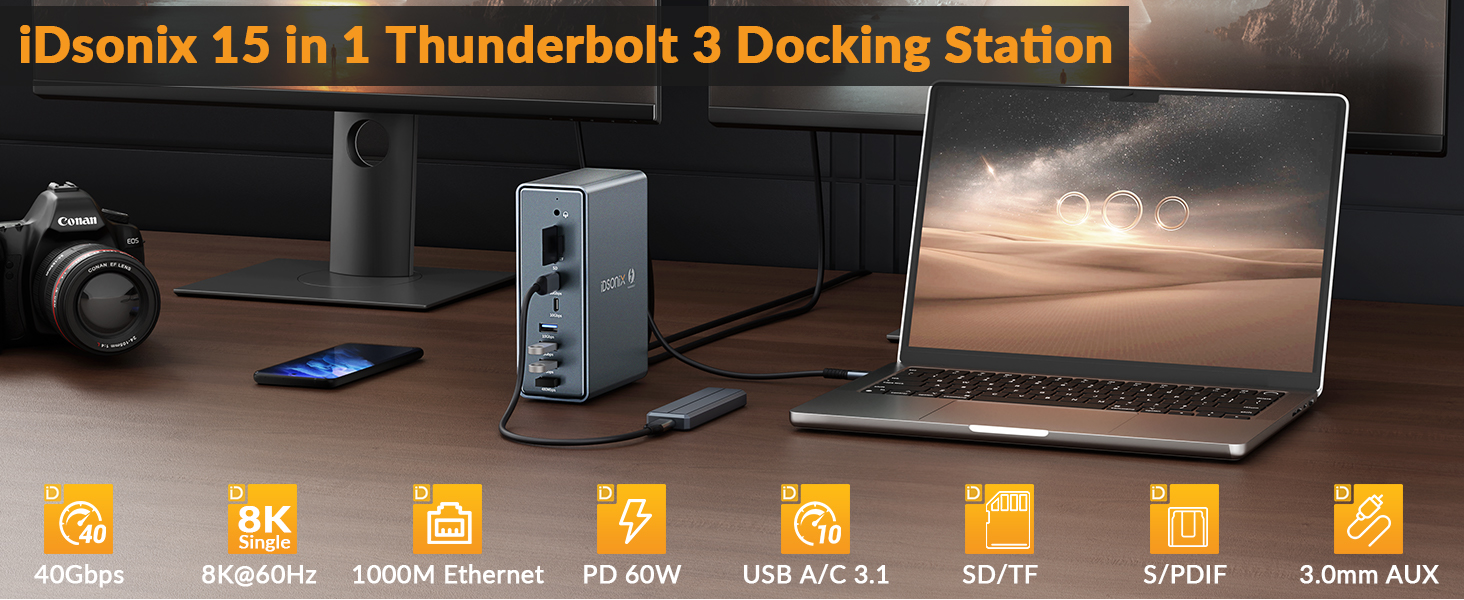

| Product Name | Thunderbolt 3 Multi-function Docking Station |
|---|---|
| Product Model | iDsonix-DA-TB3-GY-BP |
| Product material | Aluminum Alloy |
| Input Interface | Thunderbolt3*1(60W) |

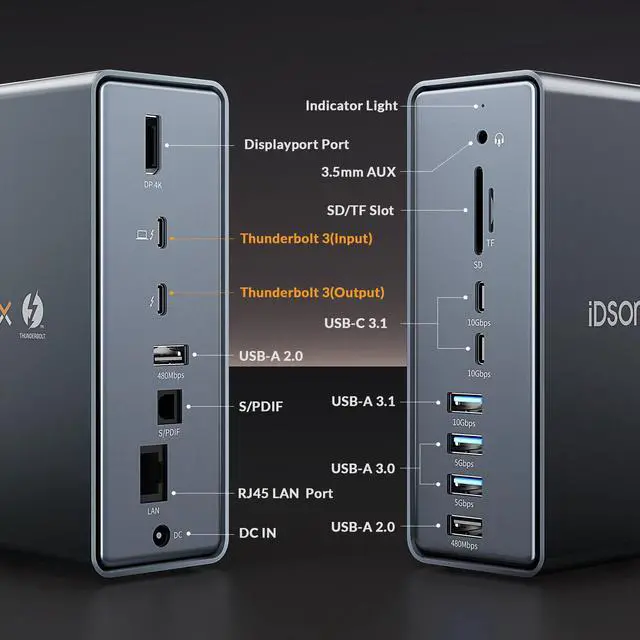

| Output interface | DC(20V3.25A)*1, USB-C3.1(10Gbps)*2, Thunderbolt 3(15W)*1, DP1.4*1, USB-A3.1(10Gbps)*1, |
| Output interface | USB-A3.0(5Gbps)*2, USB-A2.0*2, RJ45*1, SD/TF*1, 3.5mmAUX*1, S/PDIF*1 |
| Main control chip | HUB3.0:VL817 5Gbps, HUB3.1:VL822 10Gbps, Audio: SSS1530, Card Reader: GL823K, RJ45: RTL8153 |
| Main control chip | USB2.0:FE1.1 |
| Transfer rate | Thunderbolt 3: 40Gbps |
| Product power supply | 20V/3.25A external power adapter |
| indicator light | green |
| Packing list | Product body*1, lightning data cable*1, power adapter*1, power cord*1, manual*1, thank you card*1 |
| Support system | Windows, MAC OS |
| Implementation Standard | Q/SZYC 001-2018 |
| Certification | CE, UKCA, FCC, indoor use, recycling mark, export to Australia, WEEE |
