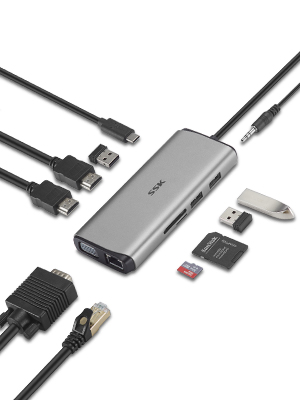

SSK 11 in 1 USB C Dock increasing the productivity of your device by expanding the female USB C port to multiple possibilities of connectivity. It supports Triple displays simultaneously, 2 HDMI support resolutions up to 3840 x 2160@30Hz, VGA port supports display resolutions up to 1920 x 1080@60Hz.
When VGA Port is connected or Two HDMI Ports are connected under Windows/Android OS, each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz.
For Mac OS
Since Mac OS does not support MST (multi-stream transmission) display, the docking station only supports extending one monitor, and the external monitor displays the same screen (A-AAA or A-BBB)
Clear 4K world on big Screen when you use the 2 HDMI ports at the same time. You can attachment VGA Cable to realize three-screen connection, all three screens will display the same picture dual to the Mac OS.
For Windows OS
It supports Mirror mode (A-AAA), Extend mode(A-BBB), and Extend mode (A-BBC); if connected 2 HDMI ports, each monitor will be limited to a maximum resolution of 1080P.
Please noted: To enable HDMI and VGA funciton, your Laptop and phone USB C port need to support "Display Port Alternate Mode" video output.
Clear 4K world on big Screen when you use the 2*HDMI port at the same time. Dual HDMI displays meets all your needs when you are working or looking at the data and the report, it greatly improves your work efficiency.You can attachment VGA Cable to realize three-screen connection, all three screens will display the same picture dual to the Mac OS.
Please noted: To enable HDMI and VGA funciton, your Laptop and phone USB C port need to support "Display Port Alternate Mode" video output.
SSK 11 in 1 Laptop Docking station can meets all of your needs, you don't need to worry about too many tasks, a computer screen can not meet the requirements. This 11 in 1 USB C Hub with Dual HDMI to display different images.
Noted: For Windows OS, if connected 2 HDMI ports, each monitor will be limited to a maximum resolution of 1080P.
Please noted: To enable HDMI funciton, your Laptop and phone USB C port need to support "Display Port Alternate Mode" video output.
Plug and play, no driver required, compatible with Mac OS, Windows, IOS and Android System with Type C interface. Compatibel with MacBook Pro (2016, 2017, 2018), Dell XPS, Dell ALIENWARE, ASUS laptop, HUAWEI MateBook, HP Spectre Notebook , HUAWEI P20, LG G5, HTC 10 etc.
(Note / Tips: Before purchasing,please check the interface of your laptop to make sure it has a Type c interface.USB C phone must required to support OTG function.)
The USB-C port with tiny lightning bolt leading to an arrow (Thunderbolt 3) means it is Full-featured, supporting video input or PD charging. If it is not Thunderbolt 3, we are happy to check if it can be used through USB-C hub.
Support reading SD Card and TF Card at the same time at speed up to 104MB/s, no more repeated plugging in and out. SD Slot: support UHS-I(SD,SDXC,SDHC,RS-MMC etc.), TF Slot: support UHS-I(Micro SD, Micro SDHC, Micro SDXC etc.)
Gigabit Ethernet port supports 10/100/1000Mbps network speeds.
Note: If your Macbook is the first time to use the Ethernet port, Macbook needs to be set up as follows:
Click 'system Preference'-'Network', click '+' and selecting usb 10/100/1000 LAN to create an application (click on the app to show USB10/100/1000 LAN green, connected successfully)
A: First, it is that the USB-C interface does not have a video output, Please check if the connected USB-C port of your device supports "DP Alt Mode", some USB C ports only can transfer data. To do this, please consult your device's user manual, contact the seller, or check the manufacturer's website.
Second, it is that WINDOWS has been set to 'PC screen only', so you need to select by pressing 'Win+P' to open the menu to select.
Third, please check if your HDMI or VGA plug is firmly inserted, and then ensure that the output resolution does not exceed the monitor resolution.
A: For Win OS laptops: Click the Graphic Settings or Win+P to choose mirror mode or extend mode
For Mac OS laptops: Apple logo-System Preferences-Displays-Select"Mirror Display"
Note: When MAC OS needs to extend the display, you need to click on "Display" in Preferences, select the Arrangement, and then click Cancel "Mirror displays".
A: For Win OS laptops: 1) If you connect 1 HDMI port, then it is 4K HD output. 2) If you connect 2 HDMI port, then the output will be both 1080P. 3) If you connect 1 HDMI port +1 VGA Port, the two displays Output are 1080P. 4) If you connect 2 HDMI Port +1VGA Port, the triple displays Output are 1080P.
For Mac OS laptops:
1) If you connect 1 HDMI or 2 (Dual)HDMI, one or two displays will be 4K HD output.
2) If you connect 1 HDMI port +1 VGA Port, the two displays Output are 1080P.
3) If you connect 2 HDMI Port +1VGA Port, the triple displays Output are 1080P.
A: Frist, please check if your device has a USB C port. Second, Our USB C hub is compatible with multiple systems.( Not a full list)
It is compatible with Mac OS: MacBook/MacBook Pro (2020/2019/2018/2017/2016), Macbook Air 2018-2020, Mac mini 2018-2020, iPad Pro 2018/2020,iPad Air
Compatible with Win OS: 1) For Dell: Dell XPS12(9250) /Dell XPS13(9350) /Dell XPS15(9550), Dell Latitude 13 7000/Latitude 13 E7370L; 2) For Lenovo: ThinkPad, Yoga 720-13IKB/ Yoga 900-13ISK/ Yoga 910/ Yoga 920/ Yoga 930 ; 3) For HP: HP Spectre Laptop 13-af001TU; 4) For ASUS: 13'' ASUS Zenbook UX330UA; 5) For Surface: Microsoft Surface Book 2/ Surface Go/ Surface Laptop 3; 6) For HUAWEI: Mate Book 14/13/X/X Pro(2019)/Mate Book E/E2019.MatePad/ MatePad Pro; 7) And for more LG G5, HTC 10, Linux System USB-C Laptops and Phone etc.
