Thunderbolt 3 Dock - 87W Charging, 7X USB 3.1 Ports, USB-C Gen 2, DisplayPort, UHS-II SD Card Slot, Gigabit Ethernet for Mac & PC, Thunderbolt 4 Compatible (0.8m/2.62ft Cable)
- 2x Thunderbolt 3 40Gb/s, DisplayPort 1.2, 5x USB-A & 1 USB-C 3.1 Gen 1 (5Gb/s), 1x USB-C 3.1 Gen2 (10Gb/s data only), Gigabit Ethernet, UHS-II SD Card Slot (SD 4.0), Optical Audio (S/PDIF), 3.5mm Stereo Audio In & Out. Vertical or horizontal orientation. Sturdy full aluminum construction with integrated heat sink without a fan.

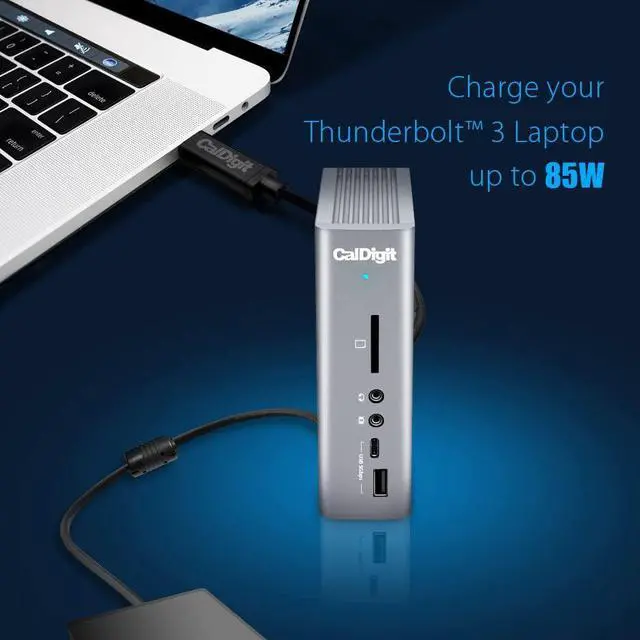

- Provides up to 87W to charge your laptop and power all of your USB peripherals. The secondary Thunderbolt 3 port provides 15W of power for downstream devices. Please note: Firmware update required for 87W
- Connect up to two 4K@60Hz (4096 x 2160 30-bit color) monitors via DisplayPort and Thunderbolt 3 / USB-C port, OR a Single 5K@60Hz display can be supported via the Thunderbolt 3 port.M1 Macs cannot support dual display over Thunderbolt! (DisplayPort to HDMI/DVI/VGA adapter / cable must be an ACTIVE type. Passive dongle/cable wil not work.)
- Ideal for M1 and M2 Macs, 2016+ MacBook Pro, 2017+ iMac Pro, on Mac OS 10.12 or Windows 8/10 with a Thunderbolt 3 or 4 port
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
15 Ports of Extreme Connectivity
With the TS3 Plus, a single Thunderbolt 3 port from your laptop expands to 15 ports! Power users need as many ports as they can get hold of and the TS3 Plus delivers on this promise. Whether you need multiple USB ports, dual 4K display connectivity, Digital Optical Audio out, or an SD Card Reader, the TS3 Plus packs everything into an incredibly compact unit. Dont compromise on connectivity with the TS3 Plus!

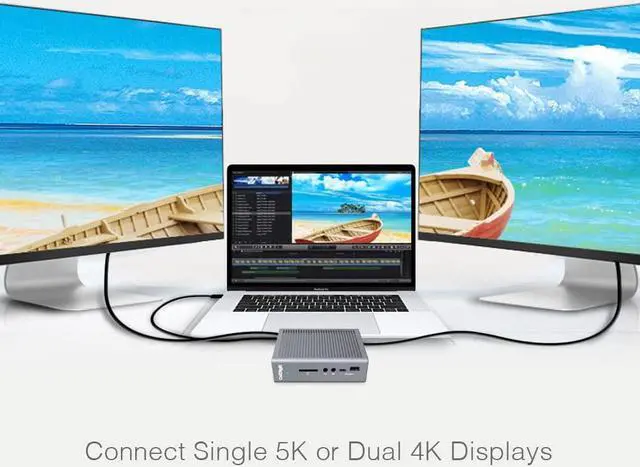

5K or Dual 4K Displays
The TS3 Plus' extreme connectivity is not just confined to data as it can also achieve extreme visual fidelity. Users have the option to connect dual extended 4K 60Hz monitors or a single 5K 60Hz monitor. The versatile DisplayPort connector can be used to connect to any monitor through the use of an active DisplayPort cable/adapter.

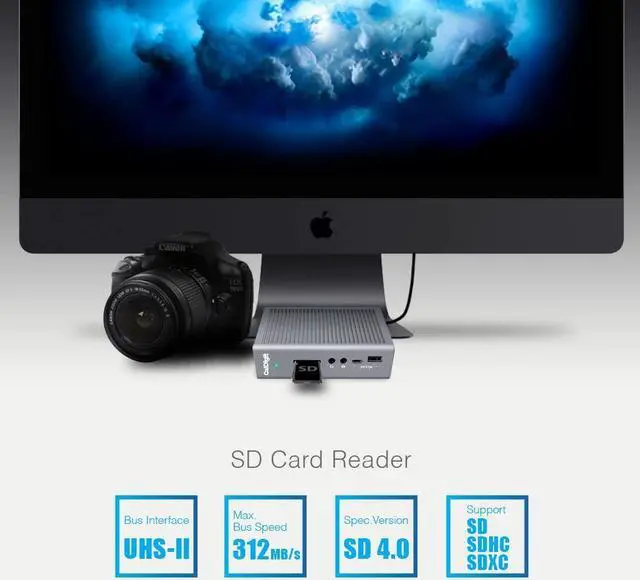

Fast SD Card Reader
With the advent of digital media, transferring data from SD cards to computers has become an integral part of any project, especially digital photography and 4K videography. TS3 Plus SD card reaper supports SD 4.0 and UHS-II speeds with a maximum theoretical throughput of 312MB/s, which means that transferring data from SD, SDHC or SDXC cards will be done in no time. Why use a USB card reader when you can connect through the most powerful interface available, Thunderbolt 3!

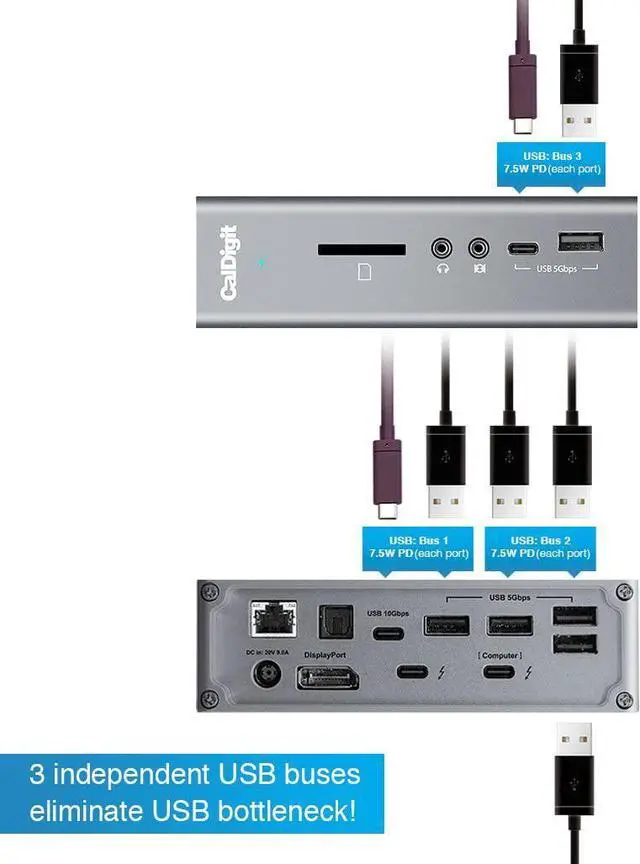

7 USB Ports
Thunderbolt 3 Ports
Horizontal or Vertical Orientation
Technical
System Requirements
Thunderbolt 3 Computer | MacOS 10.12 or later | Windows 8, 8.1, 10 or later
Dimensions and Weight
Height: 5.15 inches ( 131.0 mm) |
Width: 1.57 inches ( 40.0 mm) |
Depth: 3.87 inches ( 98.44 mm) |
Weight: 1.04 lbs ( 0.47 kgs)

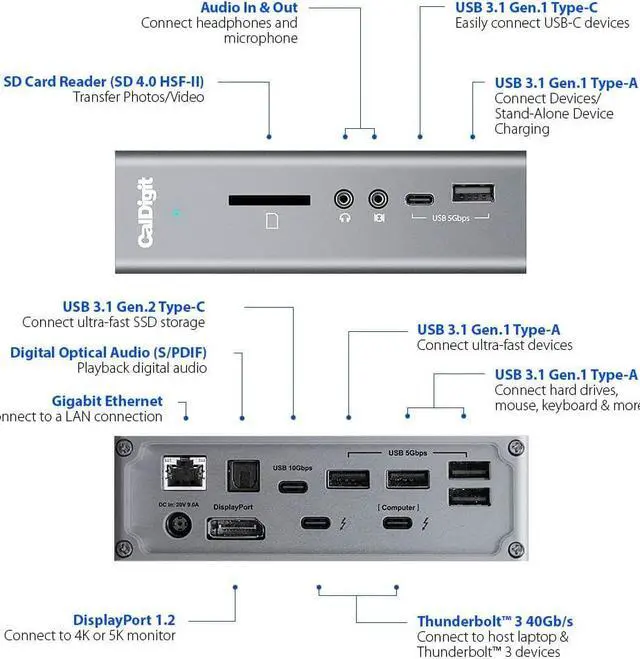

Interface
2 x Thunderbolt 3
1 x DisplayPort 1.2
5 x USB 3.1 Type-A (Gen1-5Gbps/5V 1.5A ) | 2 x USB 3.1 Type-C (5V 1.5A )(1 x Gen1-5Gbps) (1 x Gen2-10Gbps)
1 x SD Card Reader (SD 4.0 UHS-II)
1 x Digital Optical Audio (S/PDIF)
1 x Gigabit Ethernet
1 x Analog Audio In (Stereo) | 1 x Analog Audio Out (Stereo)
Max. Video Resolution
Thunderbolt 3: 5120 x 2880 60Hz | DisplayPort: 4096 x 2160 60Hz
In the Box: 1 x CalDigit TS3 Plus | 1 x Power Adapter | 1 x Power Cord | 1 x Thunderbolt 3 Cable
With the TS3 Plus, a single Thunderbolt 3 port from your laptop expands to 15 ports! Power users need as many ports as they can get hold of and the TS3 Plus delivers on this promise. Whether you need multiple USB ports, dual 4K display connectivity, Digital Optical Audio out, or an SD Card Reader, the TS3 Plus packs everything into an incredibly compact unit. Dont compromise on connectivity with the TS3 Plus!
5K or Dual 4K Displays
The TS3 Plus' extreme connectivity is not just confined to data as it can also achieve extreme visual fidelity. Users have the option to connect dual extended 4K 60Hz monitors or a single 5K 60Hz monitor. The versatile DisplayPort connector can be used to connect to any monitor through the use of an active DisplayPort cable/adapter.
Fast SD Card Reader
With the advent of digital media, transferring data from SD cards to computers has become an integral part of any project, especially digital photography and 4K videography. TS3 Plus SD card reaper supports SD 4.0 and UHS-II speeds with a maximum theoretical throughput of 312MB/s, which means that transferring data from SD, SDHC or SDXC cards will be done in no time. Why use a USB card reader when you can connect through the most powerful interface available, Thunderbolt 3!
7 USB Ports
Thunderbolt 3 Ports
Horizontal or Vertical Orientation
Technical
Specifications
System Requirements
Thunderbolt 3 Computer | MacOS 10.12 or later | Windows 8, 8.1, 10 or later
Dimensions and Weight
Height: 5.15 inches ( 131.0 mm) |
Width: 1.57 inches ( 40.0 mm) |
Depth: 3.87 inches ( 98.44 mm) |
Weight: 1.04 lbs ( 0.47 kgs)
Interface
2 x Thunderbolt 3
1 x DisplayPort 1.2
5 x USB 3.1 Type-A (Gen1-5Gbps/5V 1.5A ) | 2 x USB 3.1 Type-C (5V 1.5A )(1 x Gen1-5Gbps) (1 x Gen2-10Gbps)
1 x SD Card Reader (SD 4.0 UHS-II)
1 x Digital Optical Audio (S/PDIF)
1 x Gigabit Ethernet
1 x Analog Audio In (Stereo) | 1 x Analog Audio Out (Stereo)
Max. Video Resolution
Thunderbolt 3: 5120 x 2880 60Hz | DisplayPort: 4096 x 2160 60Hz
In the Box: 1 x CalDigit TS3 Plus | 1 x Power Adapter | 1 x Power Cord | 1 x Thunderbolt 3 Cable
