    10-in-1 USB C Hub with M.2 SSD Enclosure Docking Station, PD 100W, 10Gbps NVMe Sata Enclosure, 10Gbps USB C/A Ports, 2*5Gbps USB A Ports, 4K@60HZ HDMI, 1000Mbps Ethernet, SD/TF Card Reader

    Be the first to review this product...

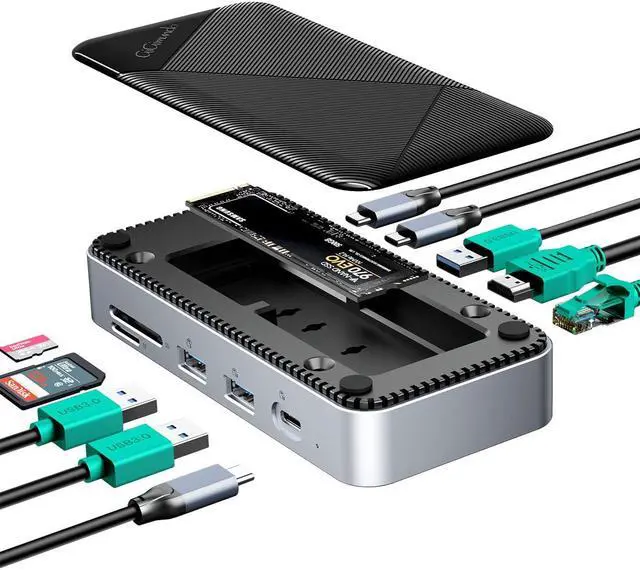

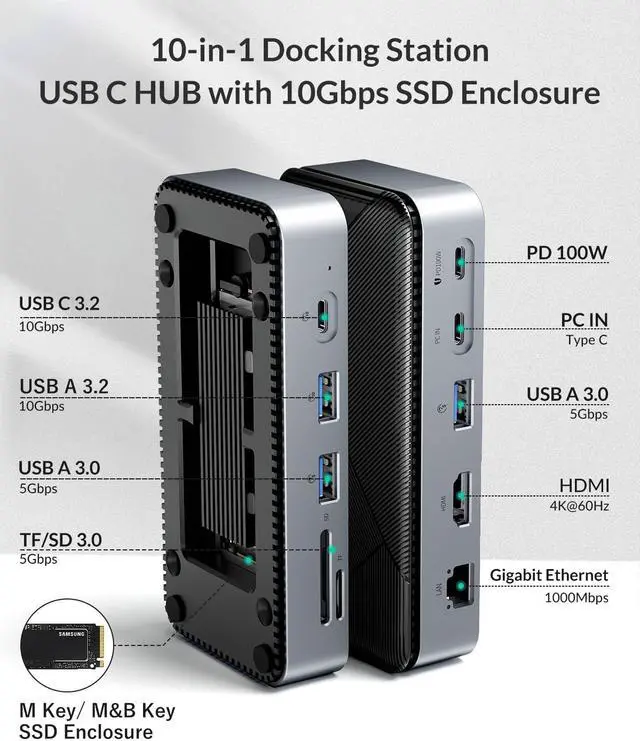

    • 10-in-1 USB-C Docking Station:Use this Docking Station to add 10 powerful things to your laptop's USB-C port: 2*10Gbps USB C/A data ports, 4K/60HZ HDMI, USB C PD100W , 2*USB3.0 5Gbps, 1000M Ethernet, SD/TF3.0, M.2 SSD. Plug and Play.

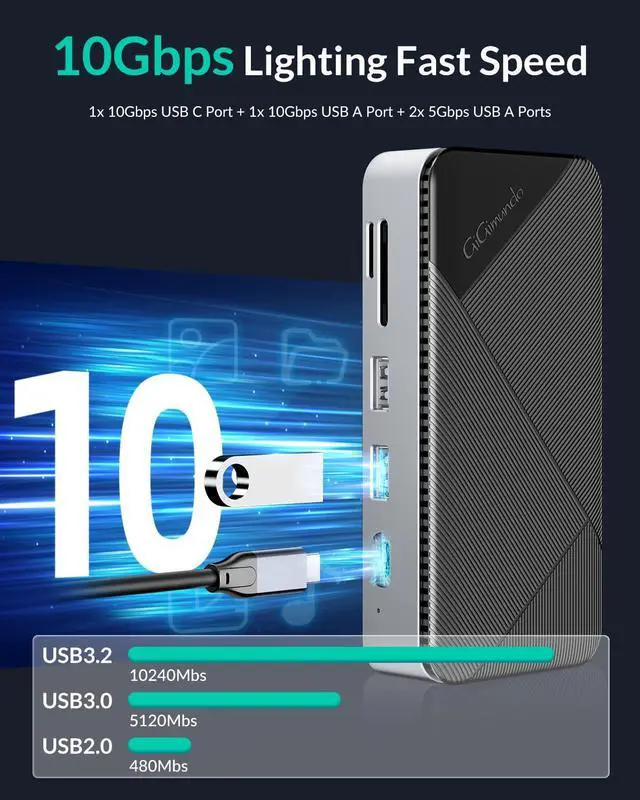

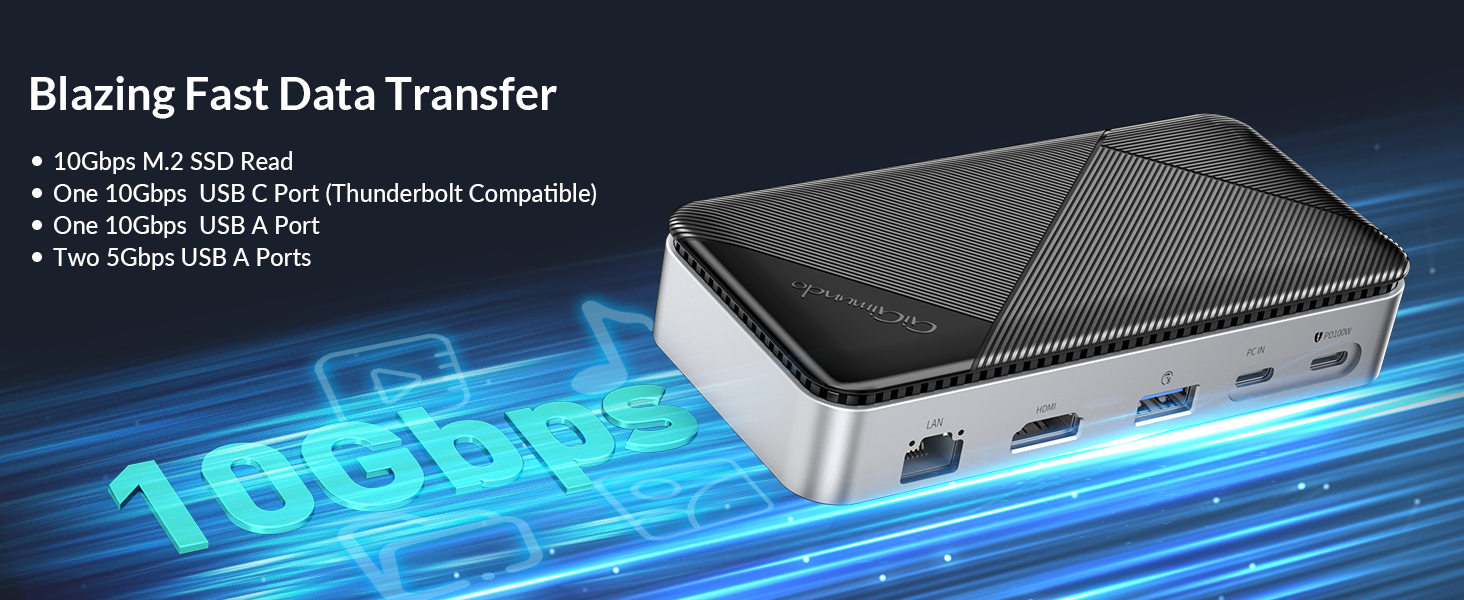

    • 10Gbps Super Data Transfer:Provides 10Gbps high-speed data transfer ports with the highest specification - USB C&A ports, it only takes 2-5 seconds to transfer a high-definition 4K movie, Also included are two USB 3.0 5Gbps ports.
    • PD100W & 4K UHD Display:It supports pass-through charging up to 100W, and it can also mirror or extend the laptop screen to an external big screen to display ultra high definition 4K@60Hz images.
    • NVME SATA SSD Enclosure:M.2 NVME SATA enclosure adopts the latest USB-C 3.2 Gen2 interface and transfer speed up to 10Gbps NVME and 6Gbps SATA. Compatible with M.2 NVMe/SATA PCIe M key / PCIe B key / PCIe B+M key SSD. Applicable to sizes 2230 / 2242 / 2260 / 2280 solid state drivers.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Feature:


    Plug and Play:
    no driver required, it allows your laptop to break the limit and play more functions.

    M. 2 SSD Enclosure with
    Quick Capacity Expansion:

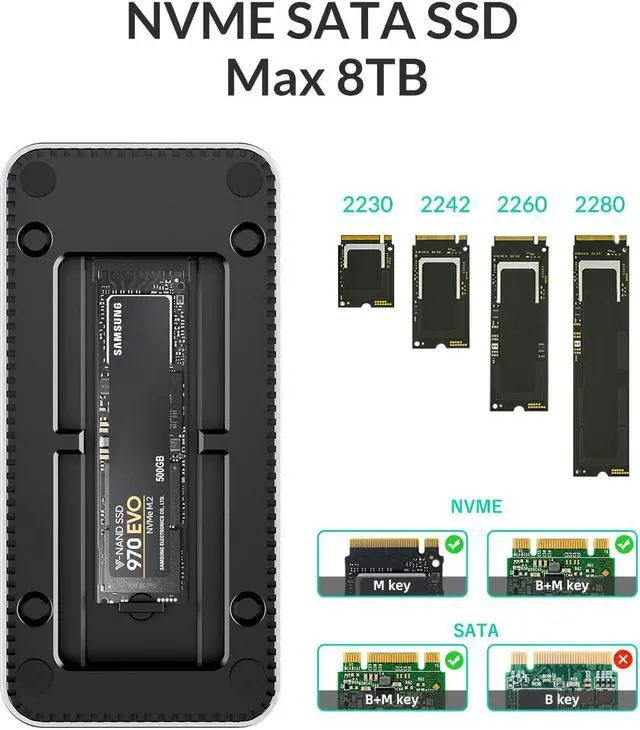

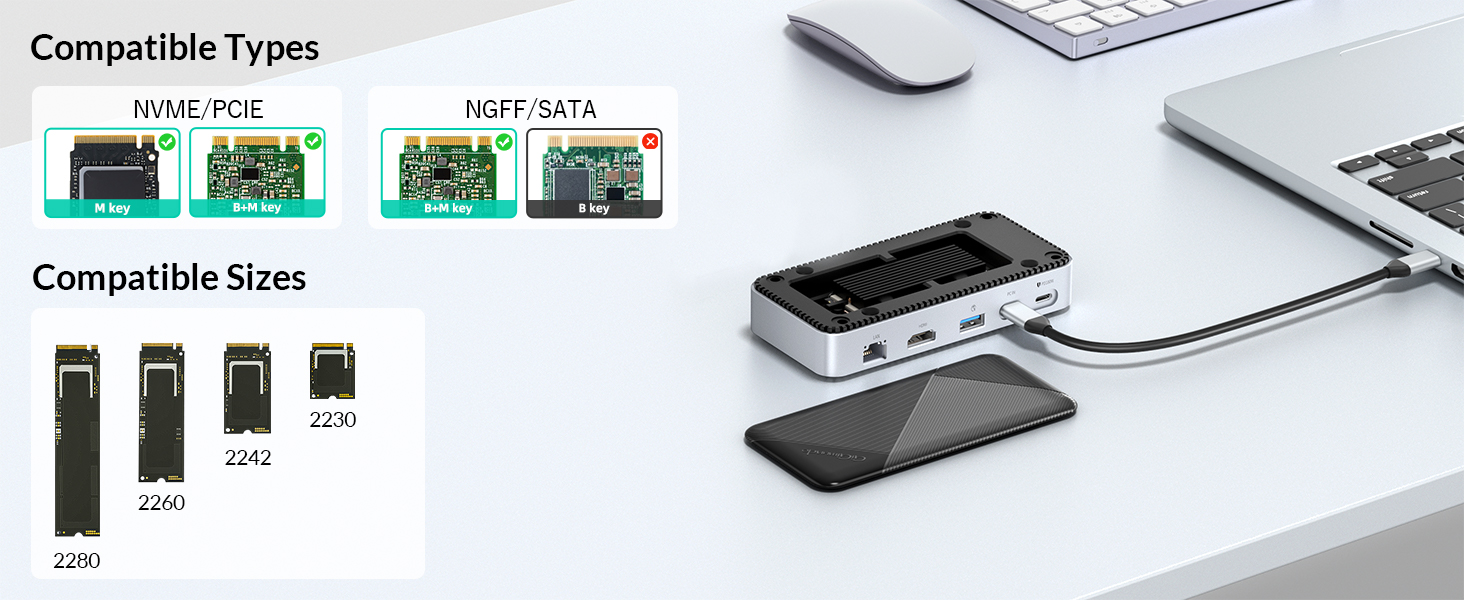

    This enclosure compatible with M. 2 NVMe/SATA dual protocol SSD to expand digital space for your laptop and tablet. It support M-Key/B&M-Key interfaces of SSD and maximum support for 4T SSDs. It is suitable for SSDs of 4 different sizes (2280/2260/2242/2230 mm).

    High Speed Transmission:

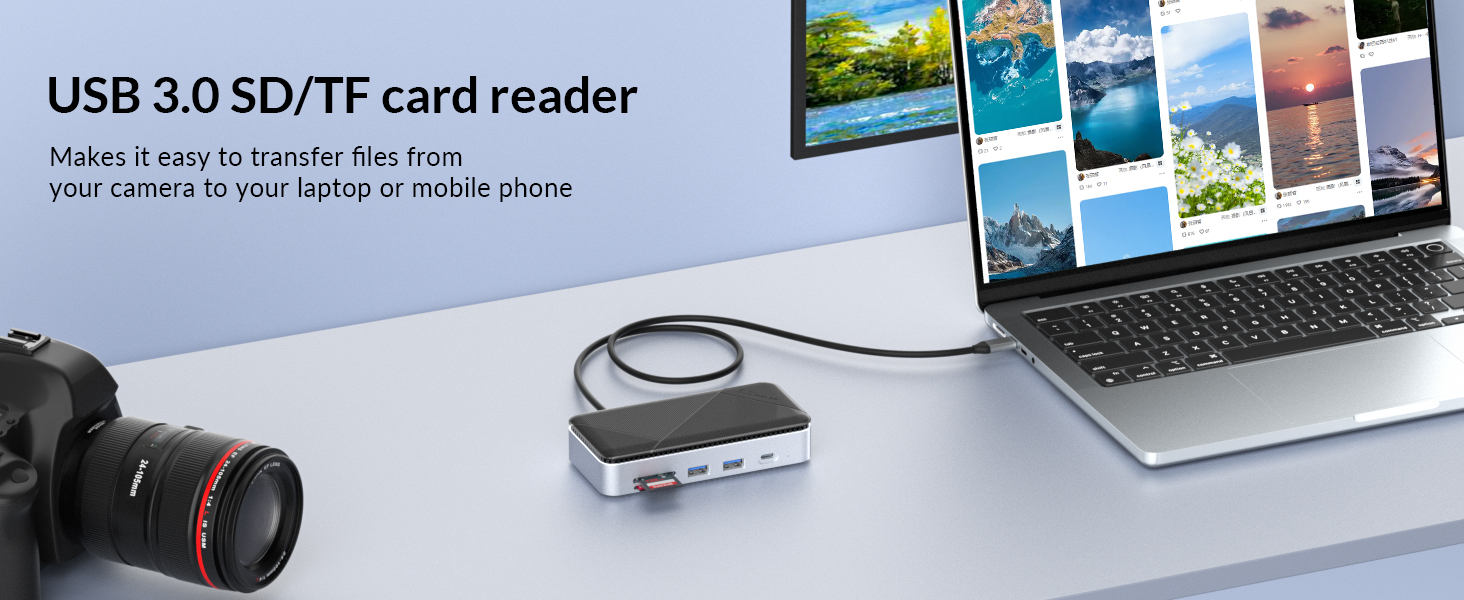

    USB 3.2 Gen2 and USB-C 10Gbps to transmit 1G files only need 1 second. Built in SD and TF card reader slots for easy access to files from universal SD and TF Memory Card,
    PS: Due to the limitation of Apple M1 chip, the reading and writing speed is lower than that of non M1 chip computer.

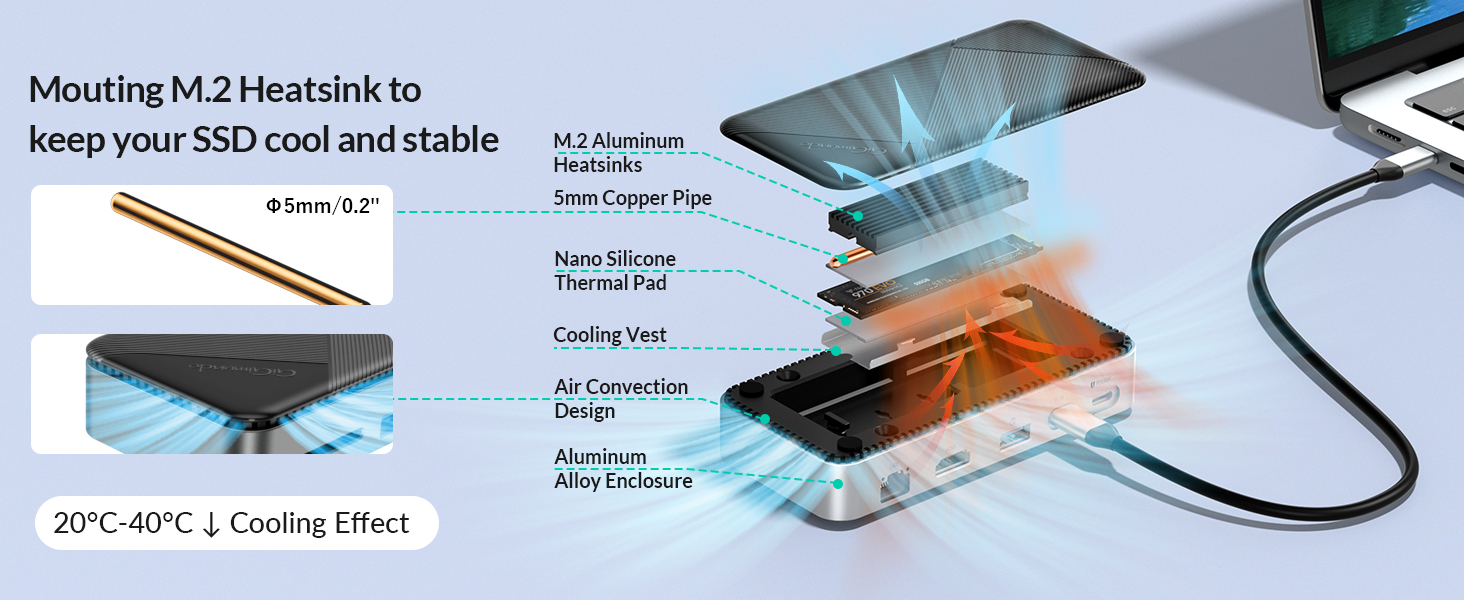

    Fast Heat Dissipation:
    Triple heat dissipation design: Aluminum alloy body, Aerodynamic duct design, with a copper tube heatsink for SSD, 40% more efficient than ordinary heatsink. Effective heat dissipation avoid speed reduction, data loss etc.

    HDMI-compatible Port for 4K Feast:
    Mirror or extend your screen with idsonix USB C to HDMI-compatible adapter to directly stream 4K HDMI 4K@60Hz, monitor, or projector. You could not only enjoy movies with your family on a bigger screen, but also make a vivid presentation in a meeting.

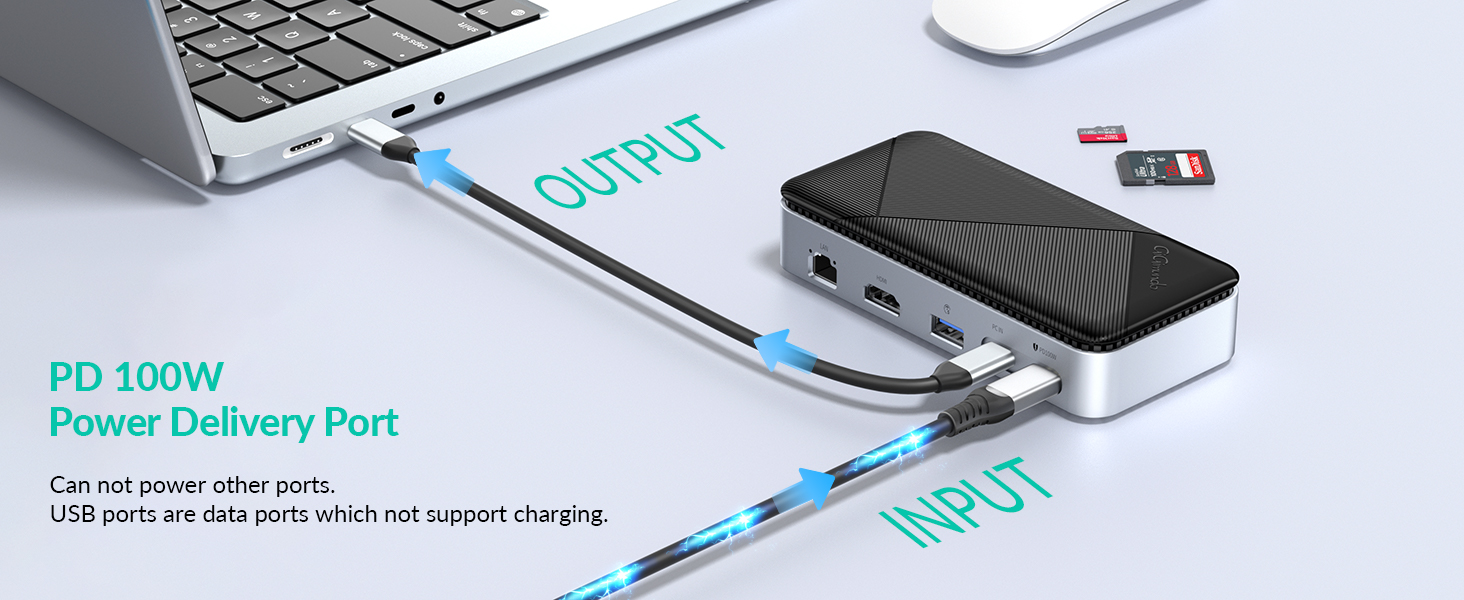

    PD100W Fast Power Delivery:
    Charging power up to 100W, Charging while playing with continuous power supply.

    High-Speed and Stable Wired Ethernet:
    This USB C docking station is equipped with an RJ45 gigabit ethernet network port definitely provides stable and faster network connection, automatically adapts to 10M/100M/1000Mbps network transmission. NOT more wait for streaming movies, downloading large files or playing games.

    Included a Storage Bag:
    The package contains a storage bag for easy storage and carrying on the go.

    Warm Reminder:


    1. This M. 2 SSD enclosure not support B key SSD.

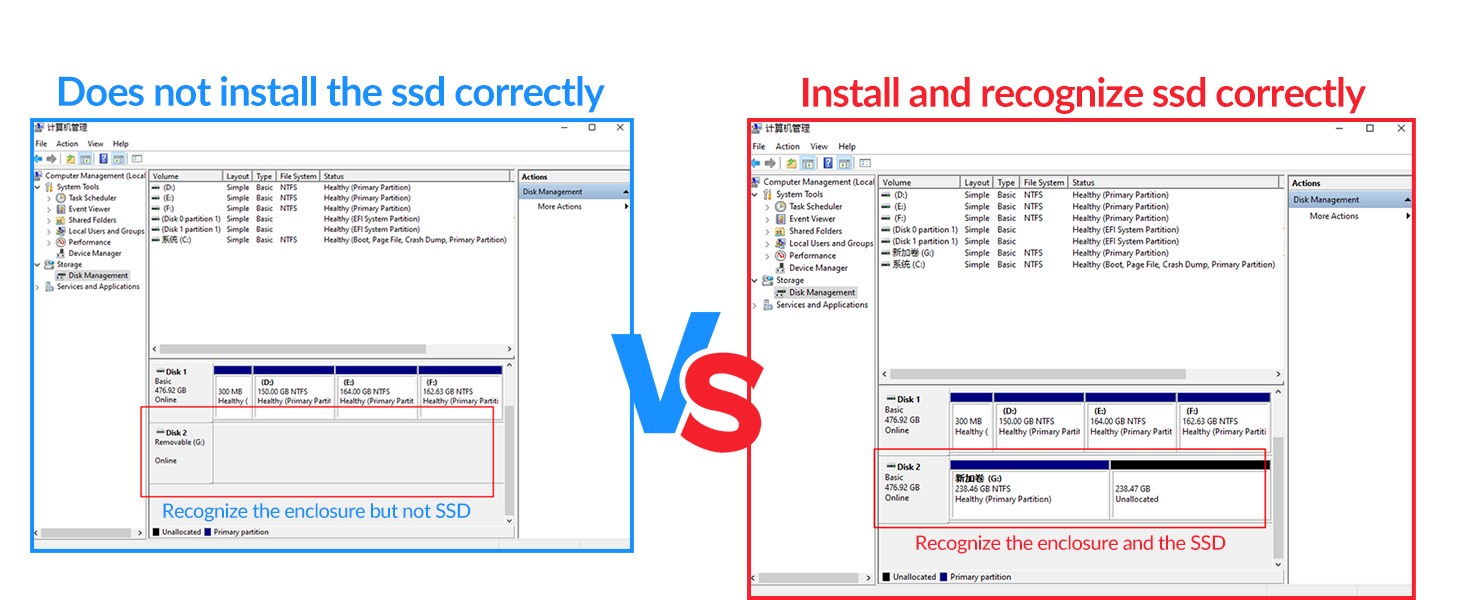

    2 For new unused SSD, it's necessary to make a partition at first, otherwise it can not be recognized.


    3. It is normal that the aluminum case heats up when using, and it doesn't affect normal use.

    Specification:



    Name M. 2 Disk Box Expansion Dock
    material aluminum alloy +ABS
    color Black
    size 135*65* 30.2 mm
    Input interface Type-C

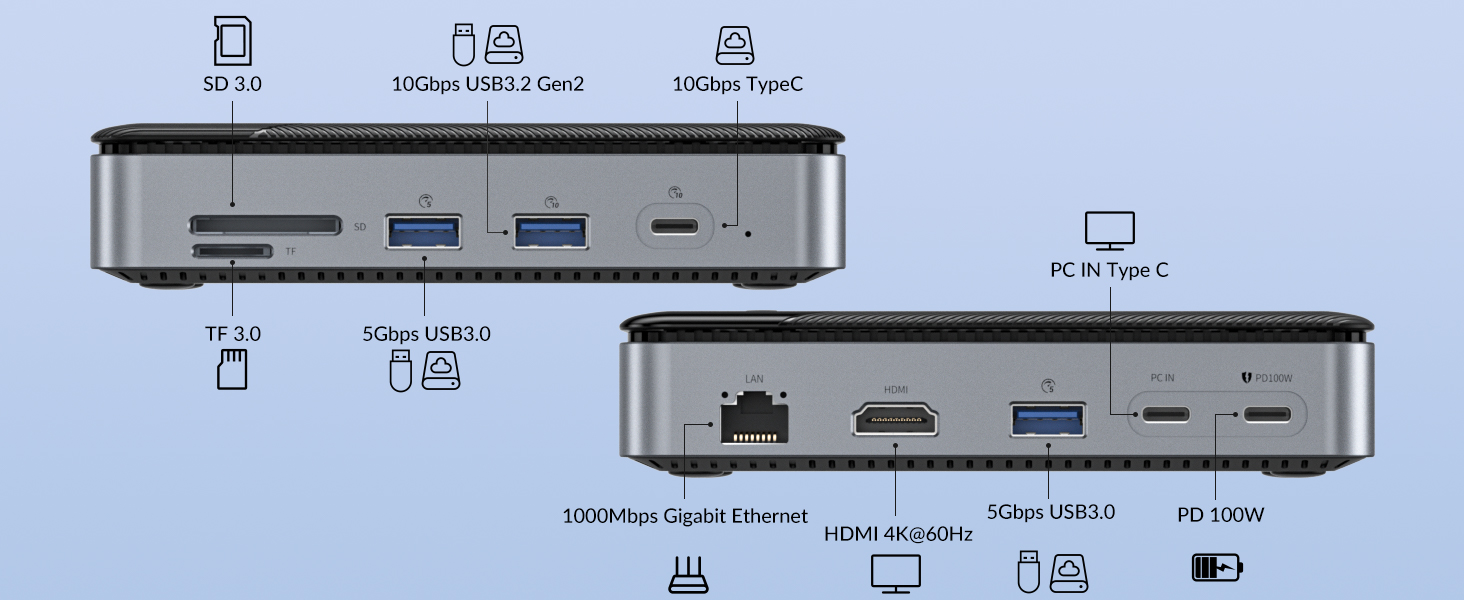

    Output interface Type-C PD100W×1, Type-C 10Gbps×1,
    USB 3.2 Gen2×1, USB 3.0 ×2,
    HDMI 4K@60Hz ×1, 1000M RJ45×1,
    SD/TF 3.0 x 1 and M. 2 ports x 1

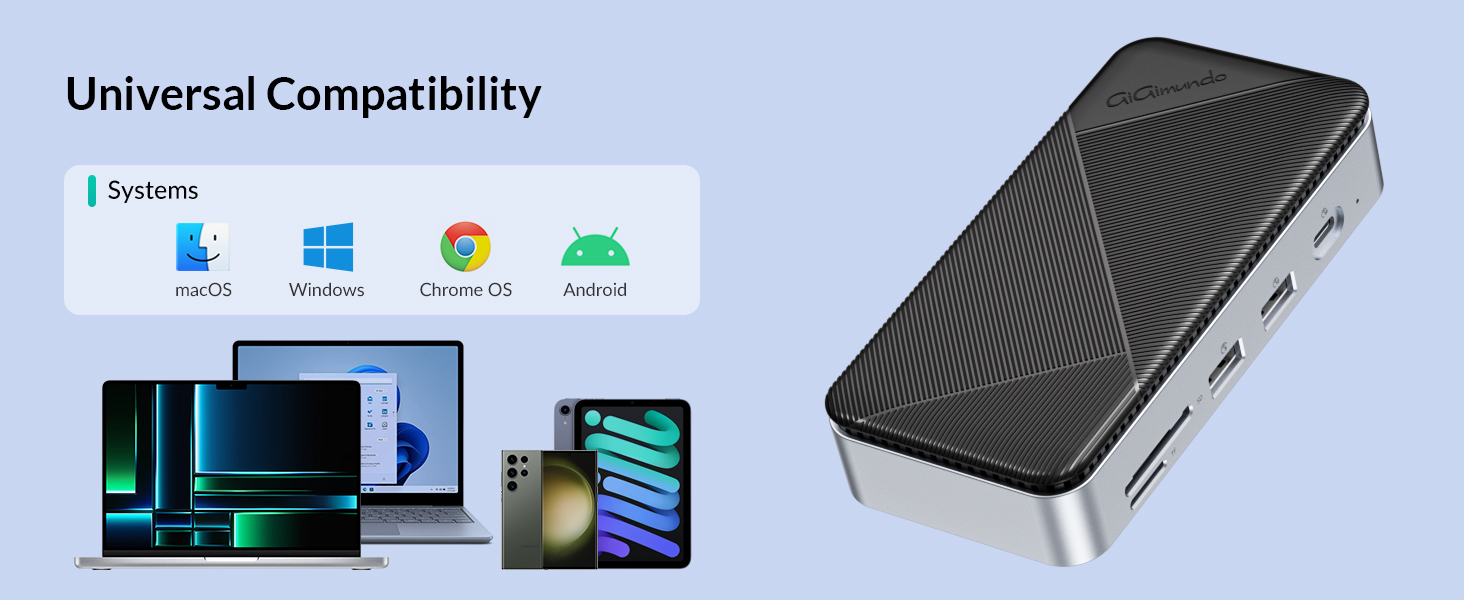

    Support system Windows 8/10 or later and Mac os
    Supports capacity Up To 4TB
    Enclosure support interface M-Key/B&M-Key

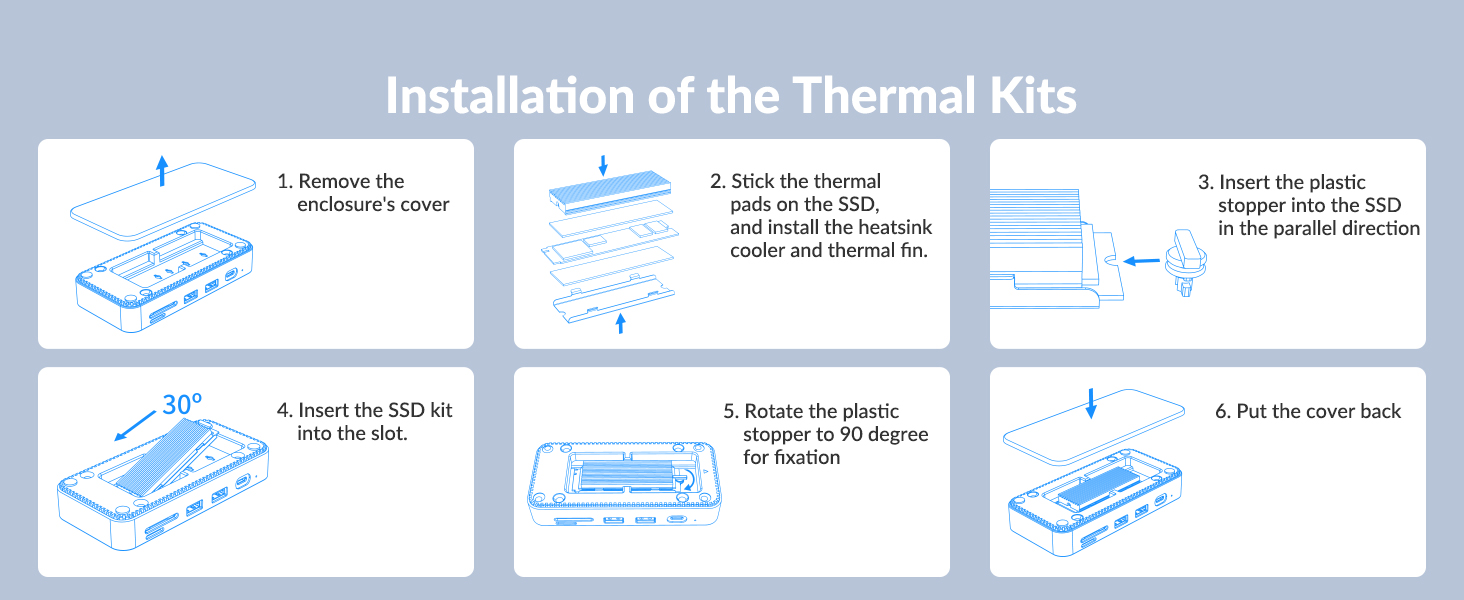

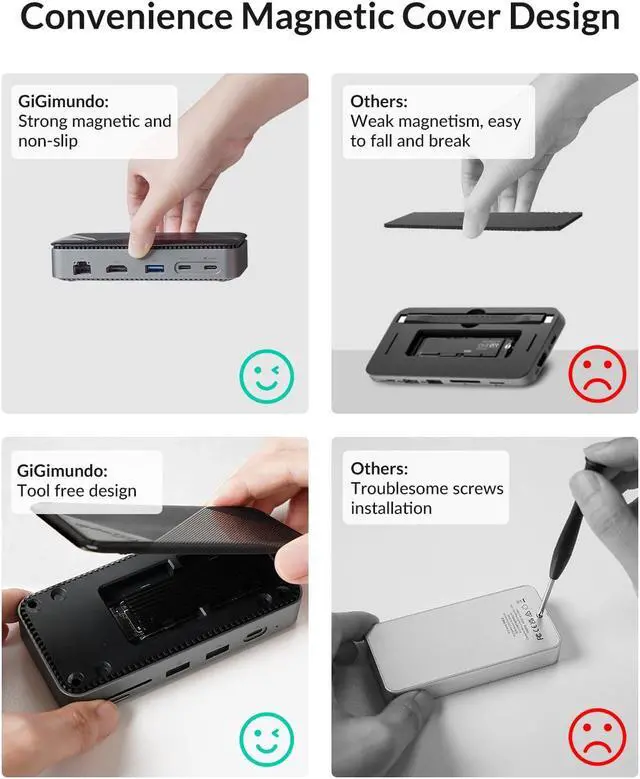

    Installation model Tool-free
    Date Cable USB-C TO USB-C/USB-A 10Gps( 0.5 m)
    Package Included:

    1. Product

    2. Package Box

    3. Storage Bag
    4. Data Cable

    5. Plastic Stopper*2

    6. Thermal Pad

    7. Heatsink

    8. Instruction Book
    1

    Please add a USB-C charging block and cable to power the PD100W Input port of this M.2 docking to ensure stable operation of each function.

                                                                                                   10-in-1 USB C Hub Docking Station
    2

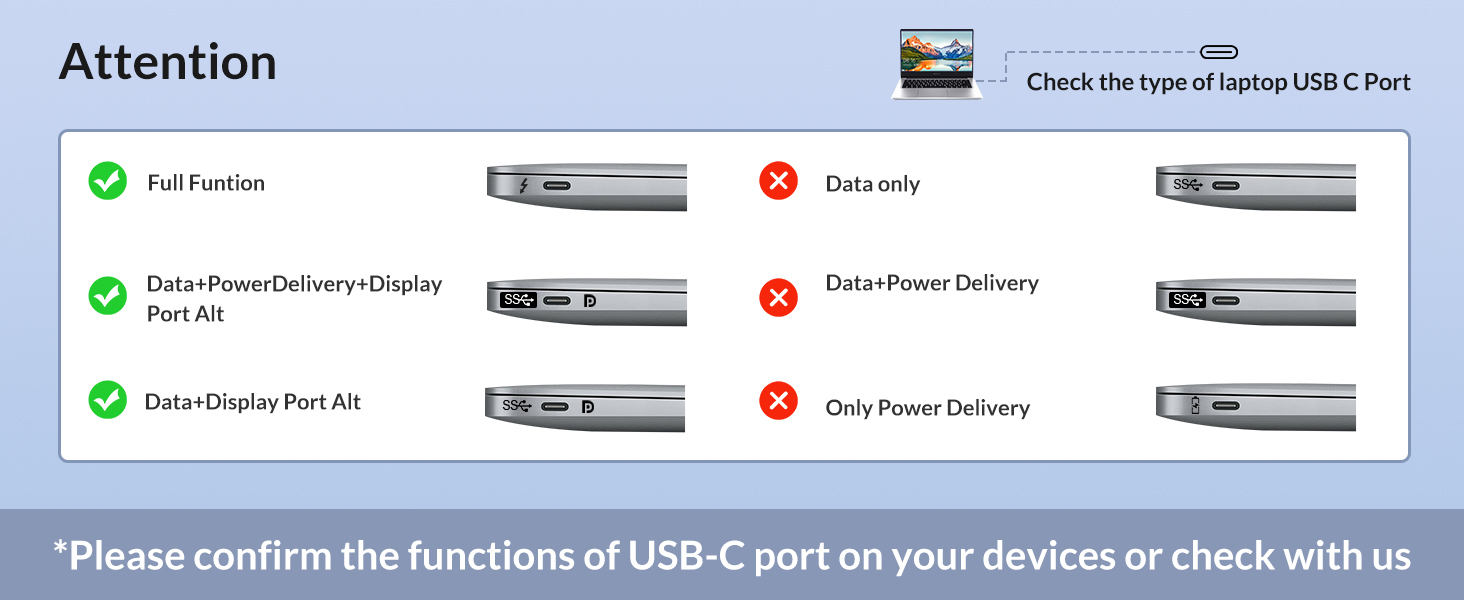

    Note: Please use full-featured USB-C to USB-C cable, otherwise the PD100W and HDMI will not work properly.

                                                                                        USB-C with DisplayPort Alt Mode was Required
    3
                                                                                                     PD100W Fast Charging was Ready
    4

    Please add a USB-C charging block and cable to power the PD100W Input port of this M.2 docking to ensure stable operation of each function.

    5
    6
    7
    8
    9
    10
    11
    12
