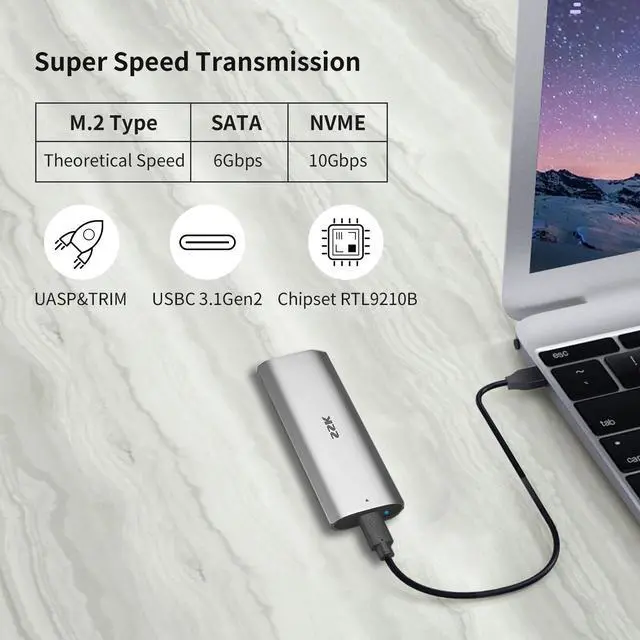

SSK M.2 NVME SATA SSD Enclosure adopts high performance controller Chipset RTL9210B, with high-speed data transmission speeds up to 10Gbps . 1GB file only takes1 second ;

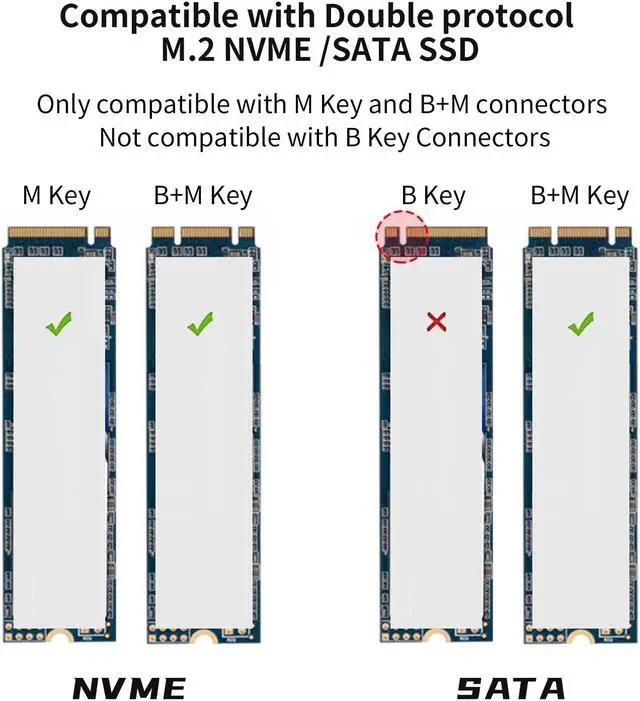

Attention: It supports PCI-E based M key / (B&M) key M.2 NVME SSD read/write speed up to 10Gbps; SATA-based B&M Key M.2 SSD read/write speed up to 5bps. Not compatible with B Key Connectors. Does not support M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs.

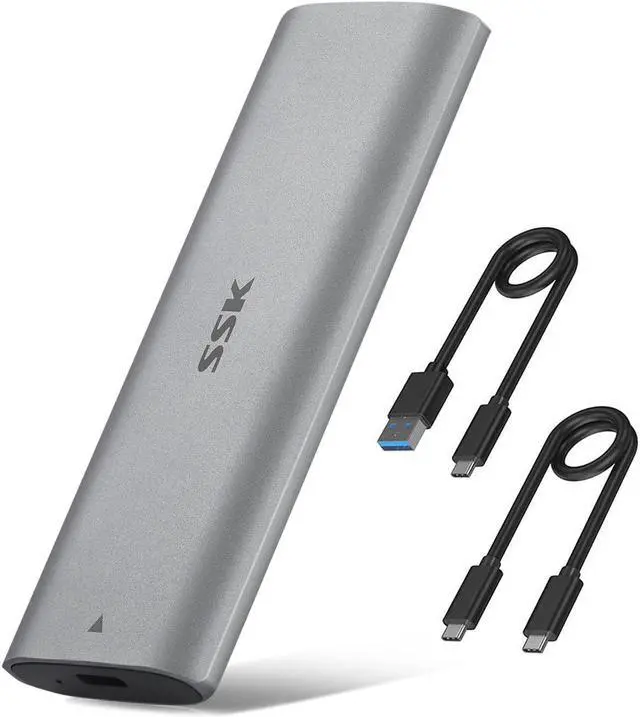

Tool-Free,No tool required Interface type: M.2 NVME and SATA to USB 3.1 Gen 2 Support SSD Drivers Size: 2242, 2260, 2280mm Cable 1 : USB C to USB C(150MM) Cable 2 : USB3.0 AM to USB C(150MM) Color: Si
- Compatible with M.2 NVMe and SATA NGFF SSDs
- Not compatible with B Key Connectors. M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs
- NVMe SSDs use exceptionally high performance storage media that will run hot when under load.
- The rubber SSD retention peg can be moved to support multiple M.2 NVMe SATA NGFF SSD lengths including: 2280, 2260, 2242.
Plug and play, no driver required. With USB 3.1 Gen2 interface,provides transfer speeds of up to 1000MB/s,1GB file1 second. Backward compatible with USB 2.0 and USB 1.1.

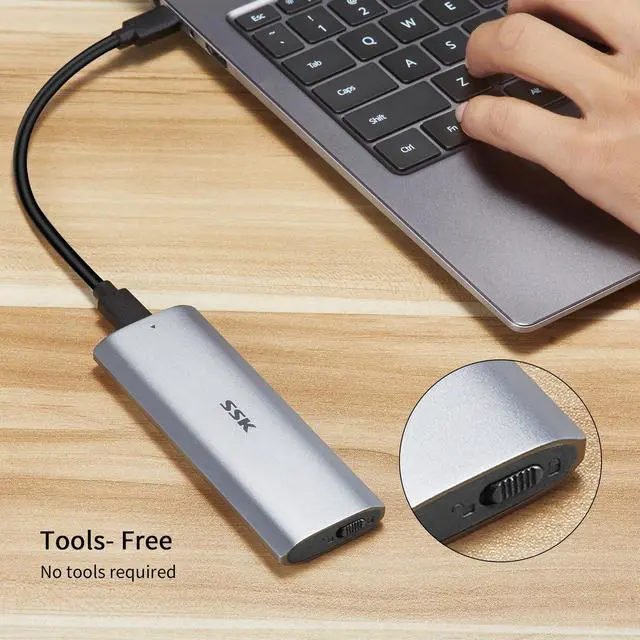

Tool-free design and no additional tools required. With two cables, USB A to C and USB C to C which suitable for all Host PC ports.
Supports Plug & Play and Hot-Swapping.

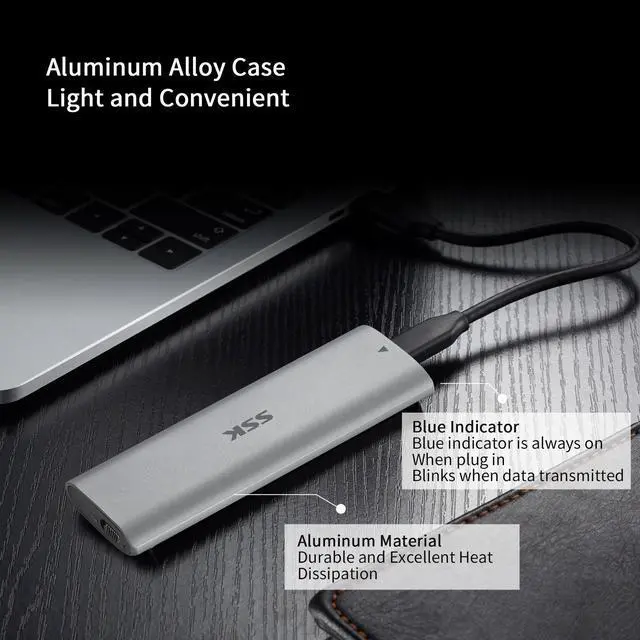

Adopts aluminum alloy shell, Slim design, durable and excellent heat dissipation, be portable and easy to carry.It will be the best choice for trip and business travel.

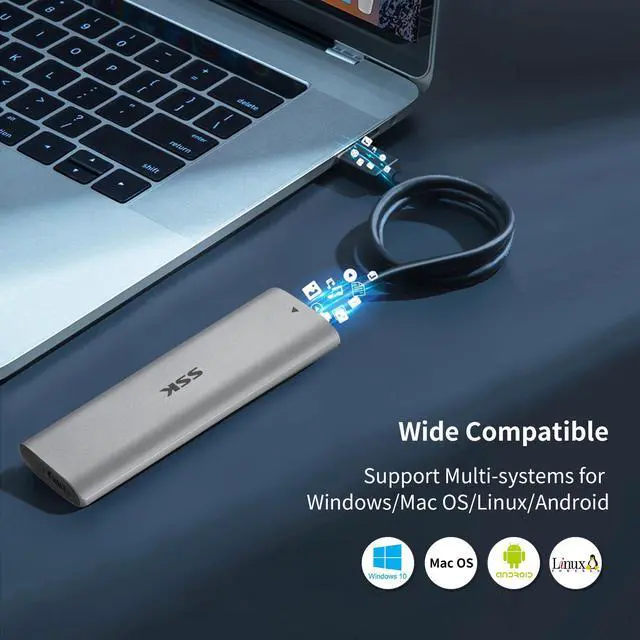

Windows 7 or above, Mac OS 10.10.5 or above, Linux, and Type C Android Phones.Blue Indicator is always on when plug in, and flash when read or write data.
Everything you need in one package, included 2* thermal pads, you can paste one thermal pad or two side by side to achieve rapid heat dissipation.

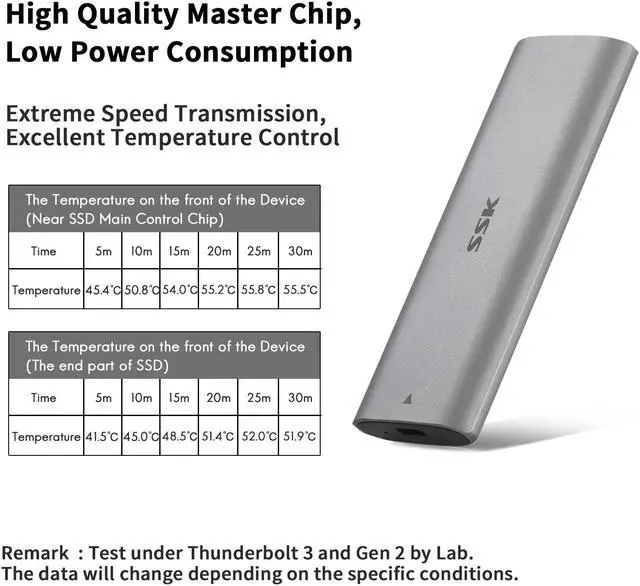

Attention: Due to the nvme SSD extreme transmission speed, the temperature is higher than USB3.0 HDD, we tested ours is around 50 °C in writing and below 40 °C in reading, even after a long time R/W, the speed will not drop down or device will not shut down.
1. Please slid to open and take the middle frame out of the enclosure.
2. Place the SSD at and angle of 45 degress into the PCB.
3. Insert the fixing hole at the end of the M.2 SSD into the slot in the middle of screw B, insert screw A and tighten it. Otherwise, there will be large screws preventing the installation of the enclosure.
4. Put the thermal pad on the SSD, leave the sheet on the thermal pad.
5. Inserting in the direction of the arrow, the end with the hook goes slowly slide into the shell first. When you hear a bang, it means that it is locked
