LSDT M.2 NVME Enclosure USB C Gen2 10Gbps PCIe SSD Case M2 SATA NGFF 5Gbps SSD Case Tool Free For 2230/2242/2260/2280 SSD

LSDT STANDARDThere is awide variety of transmission and charging protocols released by USB-IF,that makes them hard to recognize by users, customers and manufacturers.

Therefore,as a technology enterprise that constantly exploring and developing USB technology,the LSDT (Lightning-Speed Transmission) standard hasffcially introduced by Yuanchuang Era.The LSDT technology standard is based on USB Type C interface,which is divided into four standards: 5,10,20 and 40,corresponding to the ultra-high transmission speeds of 5Gbps,10Gbps,20Gbps and 40Gbps respectively.

Important Note

There are 2 models optional, please confirm your M.2 SSD protocol before ordering.

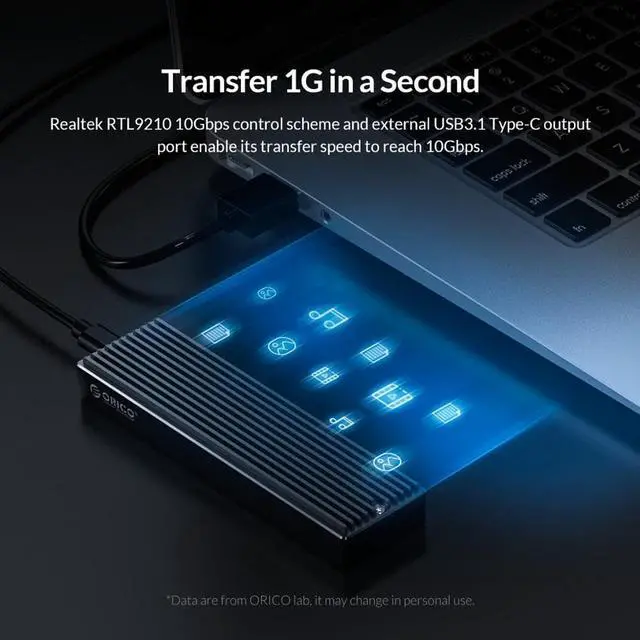

1)NVMe 10Gbps Model

Only support NVME PCI-E protocol M key/M+B Key SSD, with 15cm type-c to type-c cable and 15cm type-c to usb3.0 cable.

2)NGFF 5Gbps Model

Only support NGFF SATA protocol B key/M+B Key SSD, with 15cm type-c to USB 3.0 cable.

Product Specification-WIDE COMPATIBILITY:Support M.2 SSD with size of 2230/2242/2260/2280mm up to 2TB

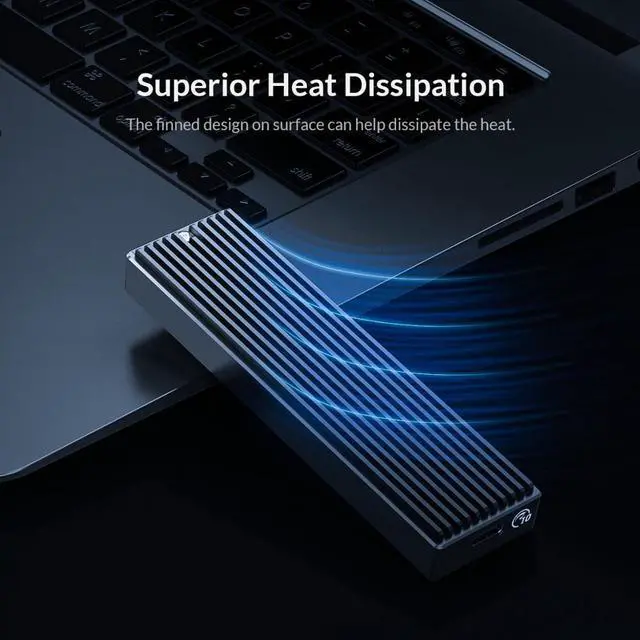

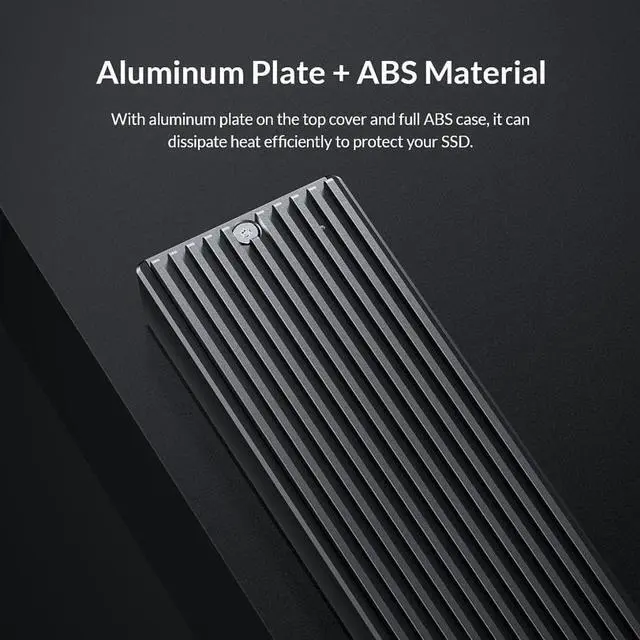

EXCELLENT HEAT DISSIPATION: The copper bars with holes on the PCBA board and the thermal pad attached to the m.2 external enclosure, with the aluminum alloy case can ensure a perfect cooling performance for the solid-state Drive.

PLUG and PLAY: NVME M.2 SSD Adapter SUPPORT Hot-swappable, Plug and Play, No Driver required.

SAFETY WARRANTY:18-month worry-free service and lifetime technical service support.

Warm Reminder1.M.2 SSD is NOT included.

2.NVMe model case is not compatible with NGFF SATA M.2 SSD, vice versa.

3.For new unused SSD, it's necessary to make a partition at first, otherwise it can not be recognized.

1M.2 NVME Model

2M.2 NGFF Model
