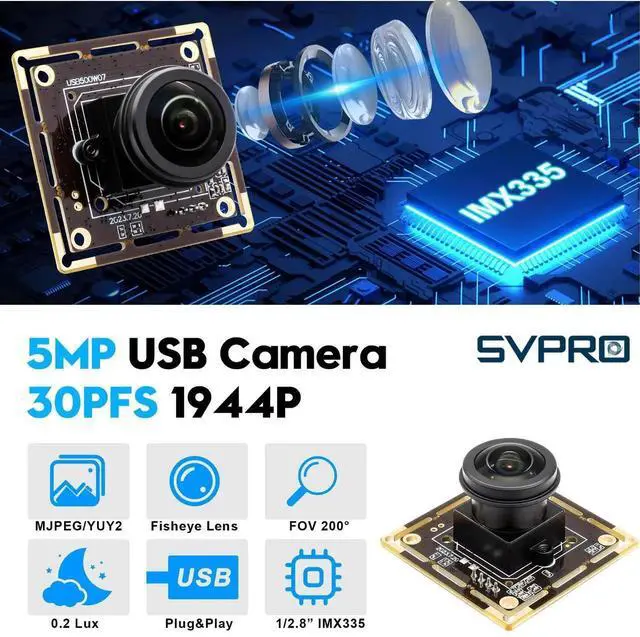

SVPRO 5MP 30FPS Fisheye USB Camera Module 200 Degree Ultra Wide Angle Webcam Board IMX335 Sensor Low Light Computer Vision Industrial Security Camera for PC,Raspberry Pi, Jeston Nano(M12 Lens)
- 5MP USB camera high definition 2595x1944 resolution 30fps webcam board ensure your videos and image are always sharp and crystal clear with vivid color.
- Adopt 1/2.8 IMX335 CMOS Sensor, good performance in low-light environment, fine shooting images with high sensitivity, low noise.
- Ultra Wide Fisheye Viewing: This 5MP USB camera module features with a M12 lens, capture ultawide angle 200° (HFOV) and 150° (VFOV) for exceptional image quality.

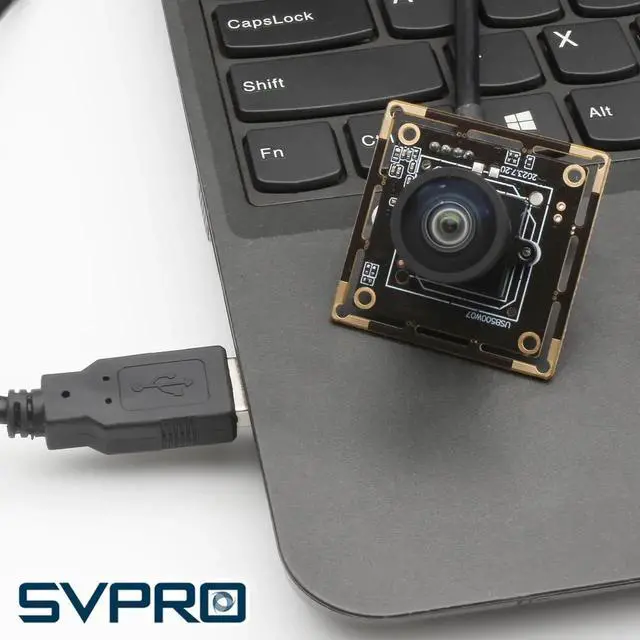

- Camera board USB port, uvc plug and play for computer,raspberry pi. No extra driver or software required. Compatible with Windows,Linux,MacOS,Android.
- Small size for embedded applications. Great for all kinds of computer vision,machine vision,lightburncamera,laser engraver camera,dash cam,industrial use, security camera.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Svpro 5MP 30FPS USB Camera with IMX335 Low Light Industrial Camera for Machine Vision
Camera Specification:
Image Sensor: SONY IMX335 (1/ 2.8 )
Pixel Size: 2.0 µm x 2.0 µm
Video Compression: MJPEG / YUY2 (YUYV)
S/N (Signal Noise Ratio): 30dB
Sensitivity: 0.65V /lux-sec@550nm
Min Illumination: 0.2 Lux
Shutter Type: Electronic Rolling Shutter/Frame Exposure
Maximum Resolution: 2592 (H) *1944 (V)
Resolution,
Frame Rate:
2592x1944 MJPEG 30fps/ YUY2 1fps
2048x1536 MJPEG 30fps/ YUY2 3fps
1920x1080 MJPEG 30fps/ YUY2 3fps
1600x1200 MJPEG 30fps/ YUY2 5fps
1280x960 MJPEG 30fps/ YUY2 5fps
1280x720 MJPEG 30fps / YUY2 5fps
1024 x 768 MJPEG 30fps/ YUY2 5fps
800 x 600 MJPEG 30fps / YUY2 20fps
640x480 MJPEG 30fps / YUY2 30fps
320x240 MJPEG 30fps / YUY2 30fps
Lens
Size: 1/ 2.3, HFOV: 200 Degree, VFOV: 150 Degree
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast
Power Supply & Connector: USB BUS POWER 4P- 2.0 mm socket
Power: DC 5V
Current: 210mA

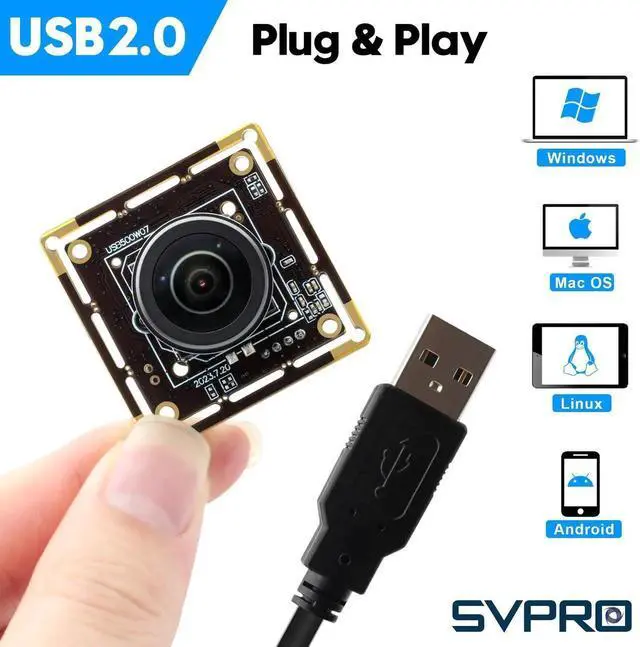

USB 2.0 Type A port, Plug and Play without extra driver or specific software.
Compatible Windows, MacOS, Linux, Android
