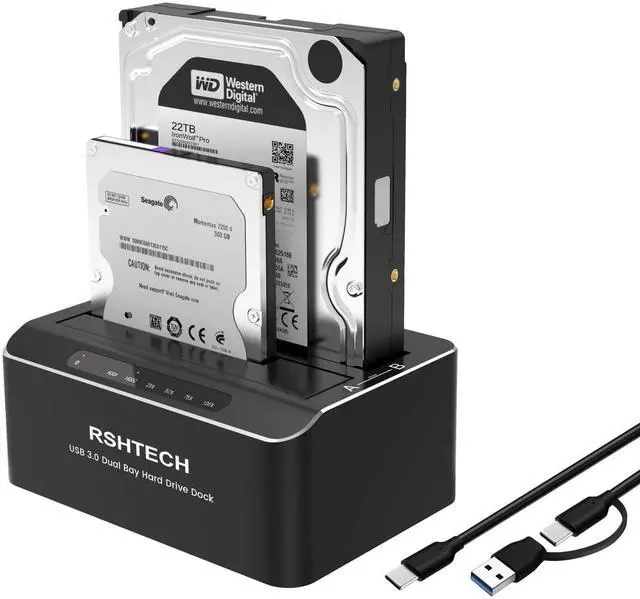

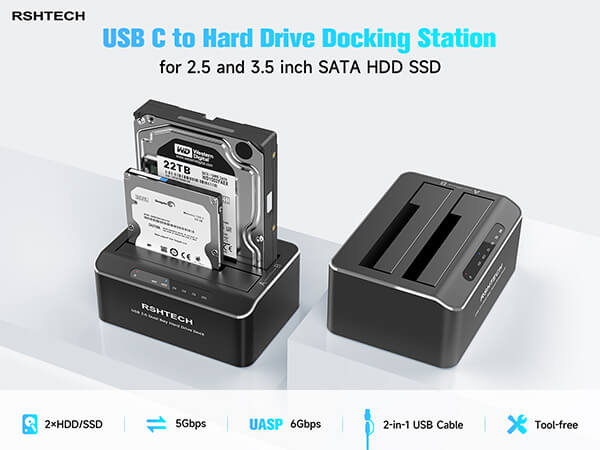

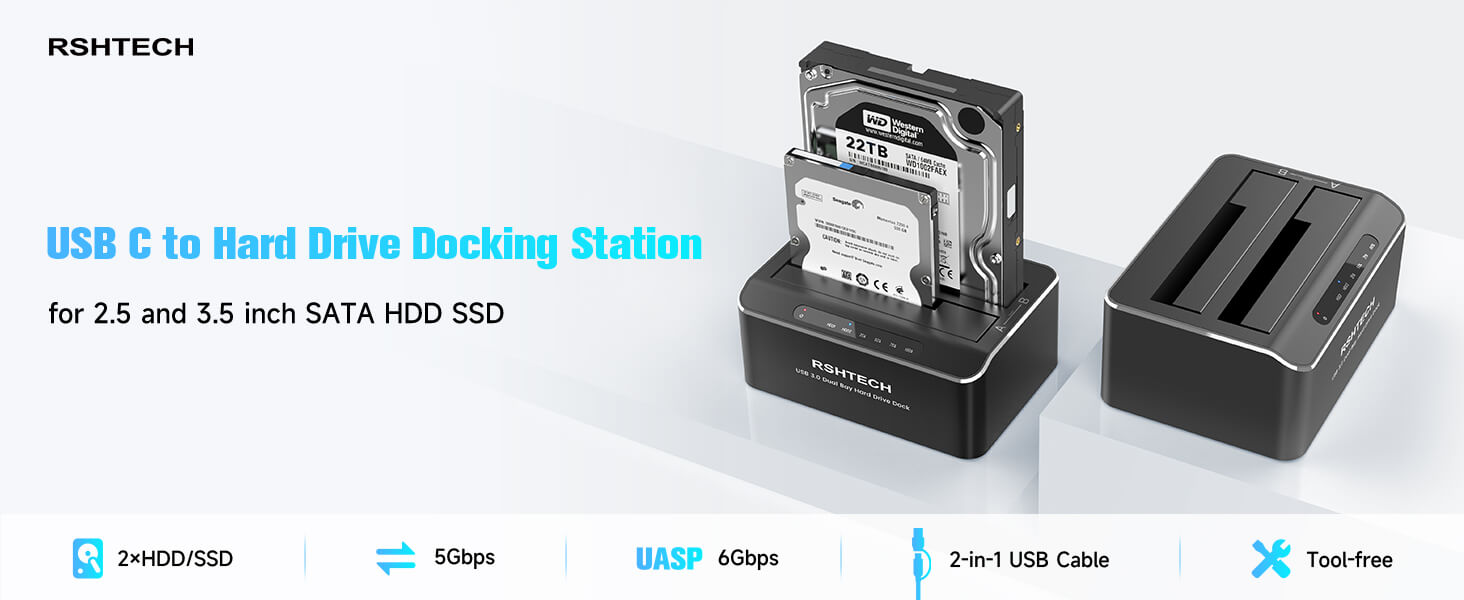

RSHTECH Dual Bay Hard Drive Dock [New Version]

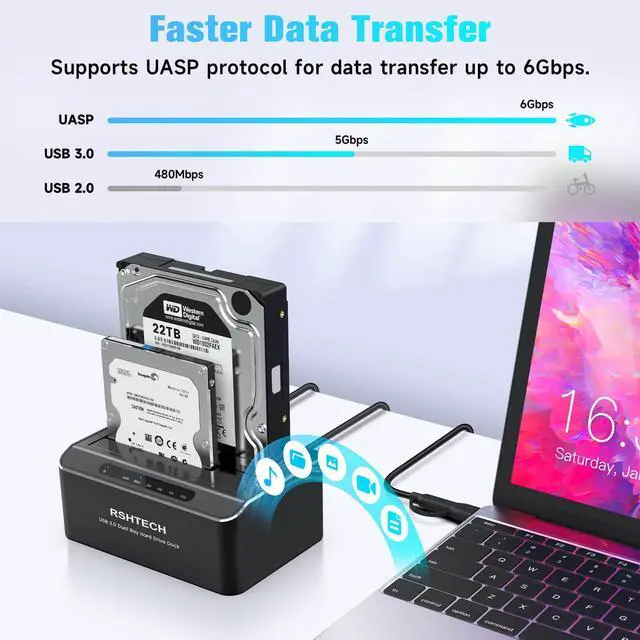

Faster & Larger Capacity

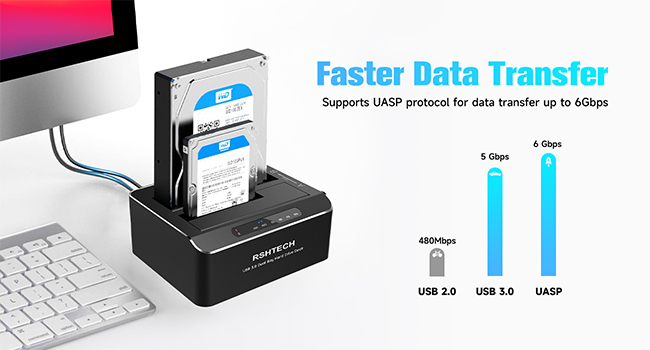

- Supports data transfer up to 5Gbps and UASP up to 6Gbps. (Make sure the device and operating system support the UASP feature)

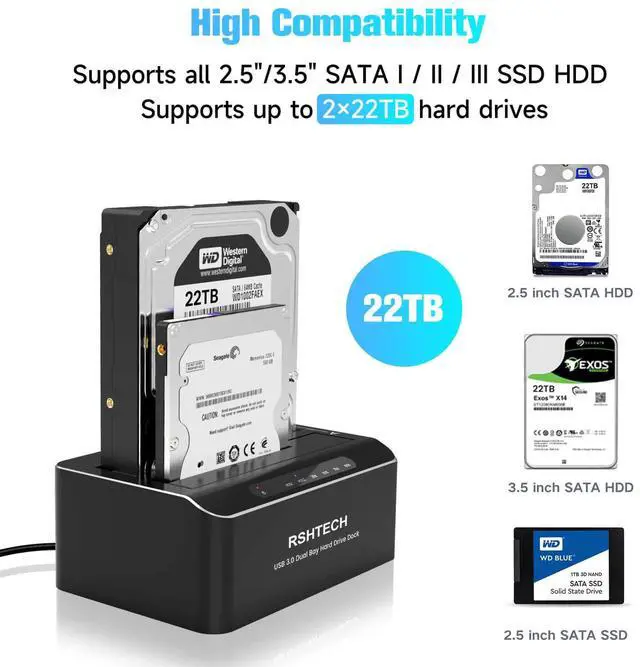

- Supporst 2.5"/3.5" SATA I/II/III SSDs or HDDs up to 22TB.

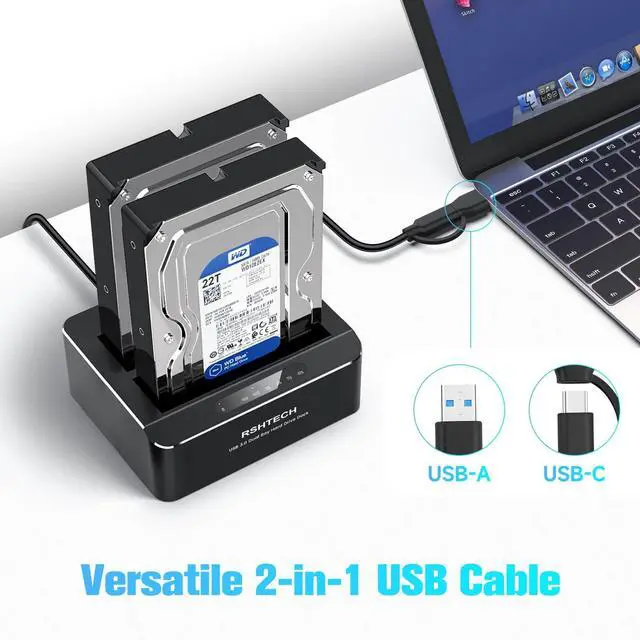

2-IN-1 USB Cable
- Equipped with 2-in-1 connector, is highly compatible with desktops, laptops and more hosts/console with USB-A, USB Type-C or Thunderbolt ports, 3.3ft detachable cable is easy to store and carry.

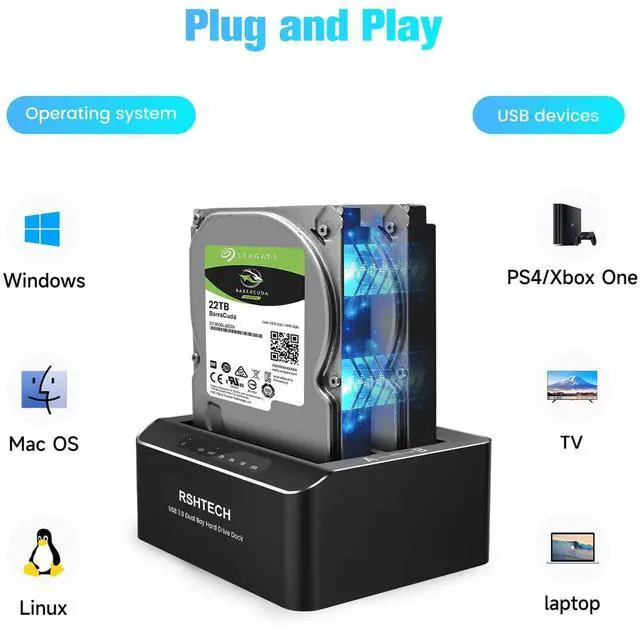

- Compatible Systems: Windows 11/10/8/7, Mac OS 9/10 (and above), Chrome OS, Linux, Android.

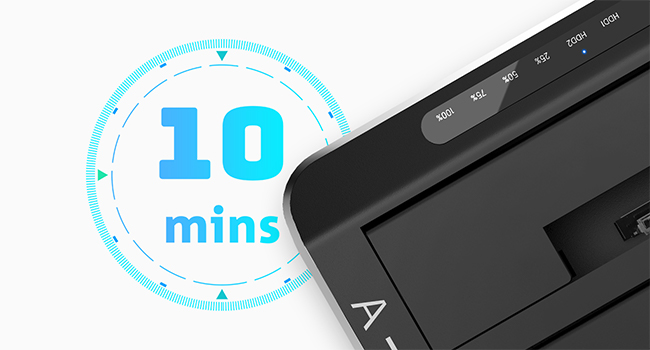

Smart Hibernation
- After 10 minutes of inactivity, the hard drive reader sleep mode is automatically activated, reducing power consumption.
- In automatic sleep mode,the hard disk does not stop completely, it runs at low speed.

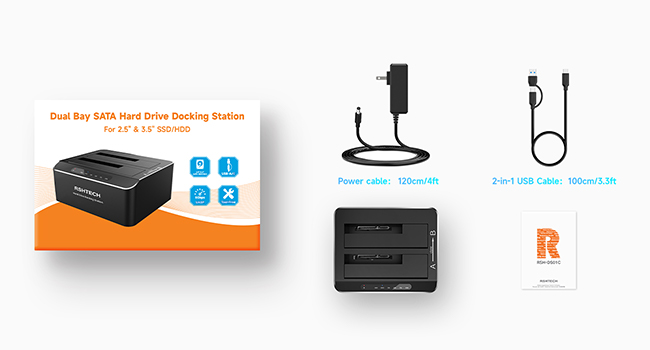

Package List
- 1× Dual-Bay USB C/USB 3.0 to SATA Hard Drive Docking Station(RSH-DS01C)
- 1× USB C to USB-A/USB-C Cable (3.3ft)
- 1× 12V/3A DC Power Adapter (4ft)
- 1 x User Manual

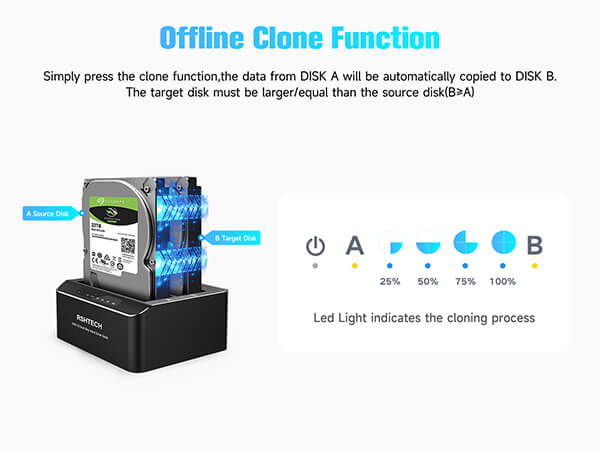

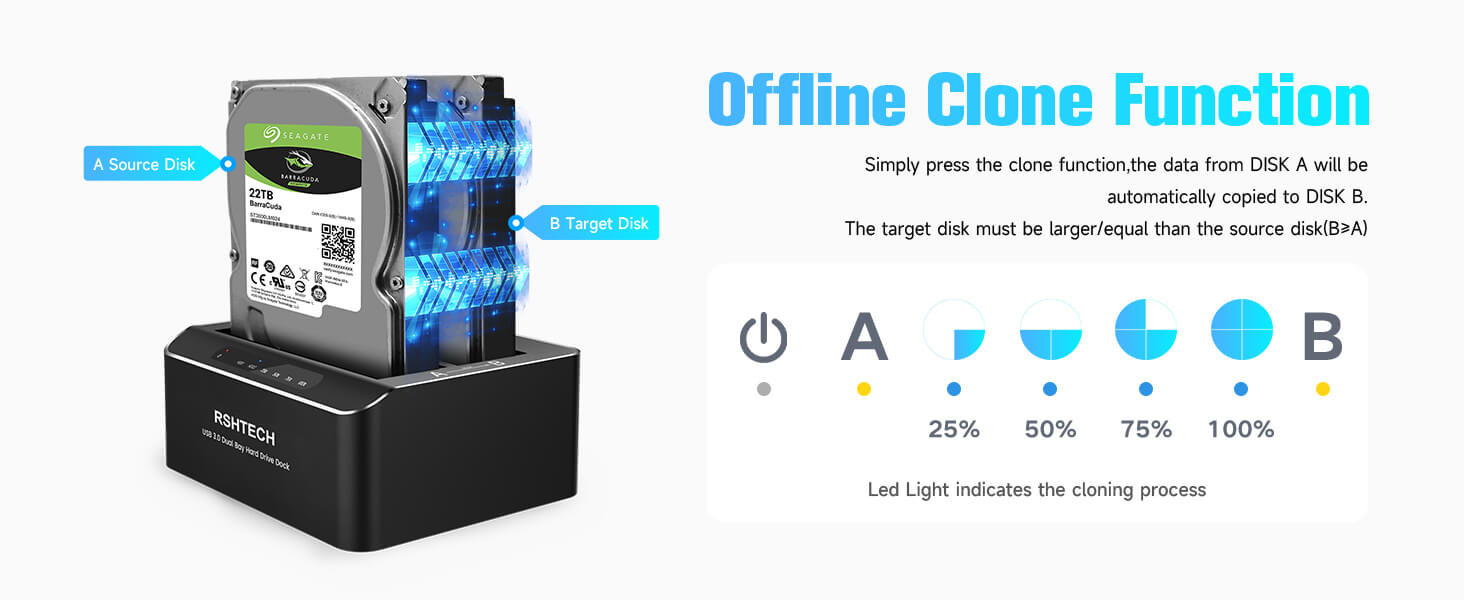

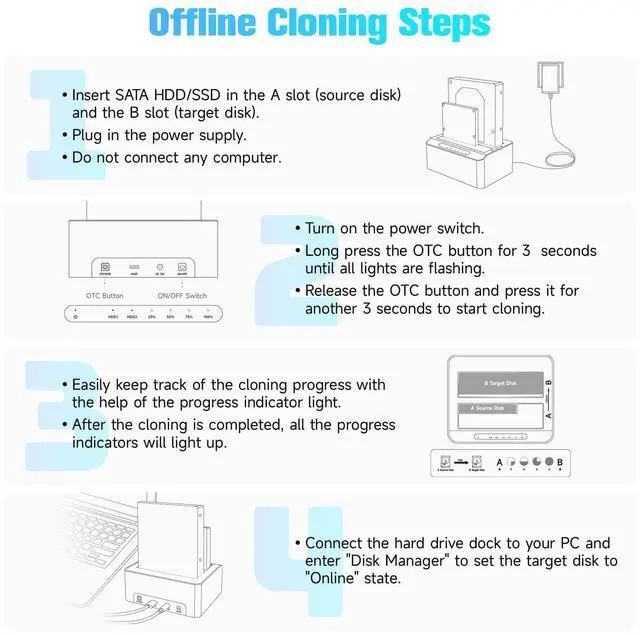

How to use the offline clone function?
- Ensure the Power Switch on the rear is in the OFF Position and plugged in properly.
- Insert Both hard drives and identify Source Disk and Target Disk (Make sure the memory capacity of B drive is larger/equal than A drive)
- Make sure that the USB cable is disconnected from any computer during the cloning.
- Turn on the power switch. Long press the OTC button for 3 secondsuntil all lights are flashing. Release the OTC button and press it foranother 3 seconds to start cloning.
- Progress indicator with LED: 25%-50%-75%-100%. When offline clone operation is fully completed, all LEDs will constant on.
Note:
- During the cloning process, the lights of HDD1 and HDD2 will keep flashing until the cloning process is completed.
- When the cloning progress indicator is stuck in one place for too long, please check the hard drive for bad sectors/tracks.

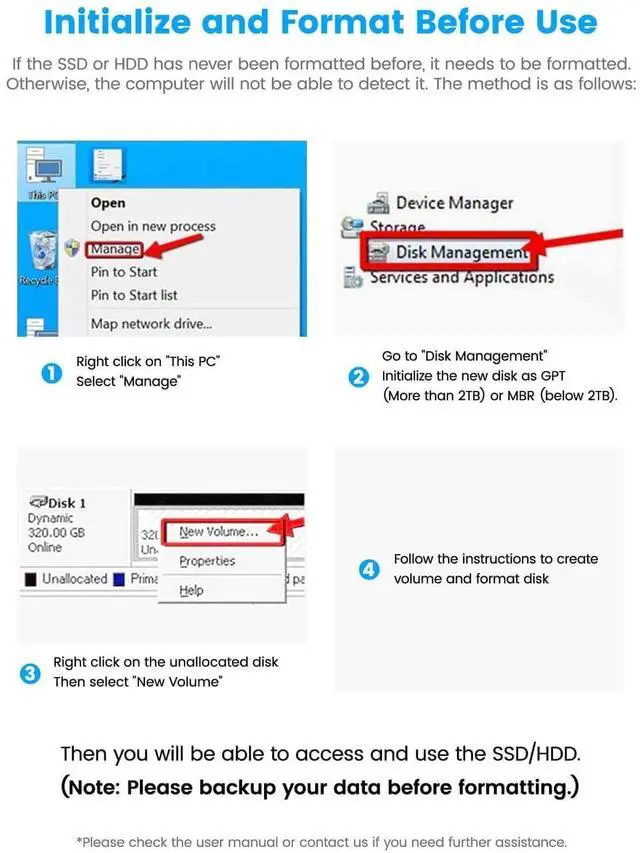

1. HDD is not recognized by the Computer
-New or old HDD may not be initialized or formatted(if there is data on the hard drive, please backup it in advance).
-There is unallocated space on the hard drive.
-The hard drive is the right format use GPT format when capacity larger than 2TB.
2. Automatic sleep function is abnormal
-The hdd dock case is connected to a device such as a router and continuously exchanges data, so it does not enter sleep mode.
-Download the firmware update and reinstall it.
3. How to prevent files on the drive from being damaged
-Always safely eject the hard drive from the system before closing the hard drive enclosure.
-When connecting a second hard disk, please eject the first hard disk securely first.
RSHTECH Hard Drive Dock

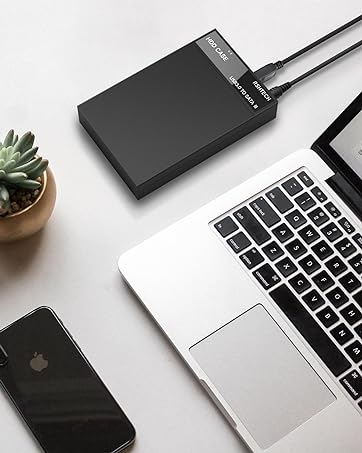

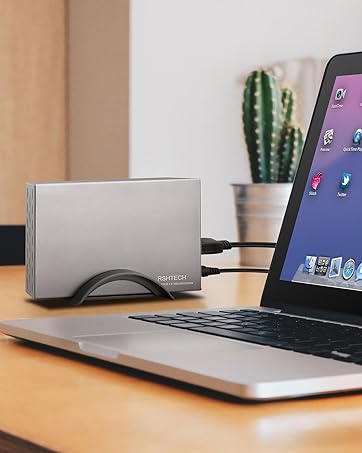

 HDD Dock(RSH-DS01C) |  HDD Dock(RSH-DS01) |  HDD Dock(RSH-DS02) |  HDD Dock(RSH-339STC) |  HDD Dock(RSH-339) |  HDD Dock(RSH-319) |  Magnetic M.2 Enclosure | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Interface Type | 2.5/3.5 inch SATA I/II/III | 2.5/3.5 inch SATA I/II/III | 2.5/3.5'' HD+USB ports+SD/TF | 2.5/3.5 inch SATA I/II/III | 2.5/3.5 inch SATA I/II/III | 2.5/3.5 inch SATA I/II/III | 2230/2242 NVMe M-Key/M+B Key |
Transfer Speed | 5Gbps(UASP 6Gbps) | 5Gbps(UASP 6Gbps) | 5Gbps(UASP 6Gbps) | 5Gbps(UASP 6Gbps) | 5Gbps(UASP 6Gbps) | 5Gbps(UASP 6Gbps) | 10Gbps |
Cable Type | 3.3ft USB-A/USB-C cable | 3.3ft USB-A cable | 3.3ft USB-A cable | 3.3ft USB-A/USB-C cable | 3.3ft USB-A cable | 3.3ft USB-A cable | 0.43ft USB-C cable |
Power Adapter | 36W(12/3A) | 36W(12/3A) | 36W(12/3A) | 24W(12/2A) | 24W(12/2A) | 24W(12/2A) | / |
Hibernation Function | ? | ? | ? | ? | ? | ? | ? |
Offline Clone Function | ? | ? | ? | ? | ? | ? | ? |
