With over 7 years of experience in the automotive tools field, AWBLIN focuses on building influential brands and products in the automotive parts industry.
Aiming to provide customers worldwide with high-quality automotive diagnostic test probes, battery switches and replacement parts tools.
Best Sellers from AWBLIN
Automotive Circuit Tester
Power Probe Kit
Battery Disconnect Switch
AWBLIN Upgrade Battery Cutoff Switch , Used For Battery To Isolate And Secure The Electrical System.
- This Battery Disconnect Switch helps prevent electrical accidents and theft. They also provide a reliable way to turn off power during maintenance, and protect against excessive battery consumption and disconnect the battery safely.

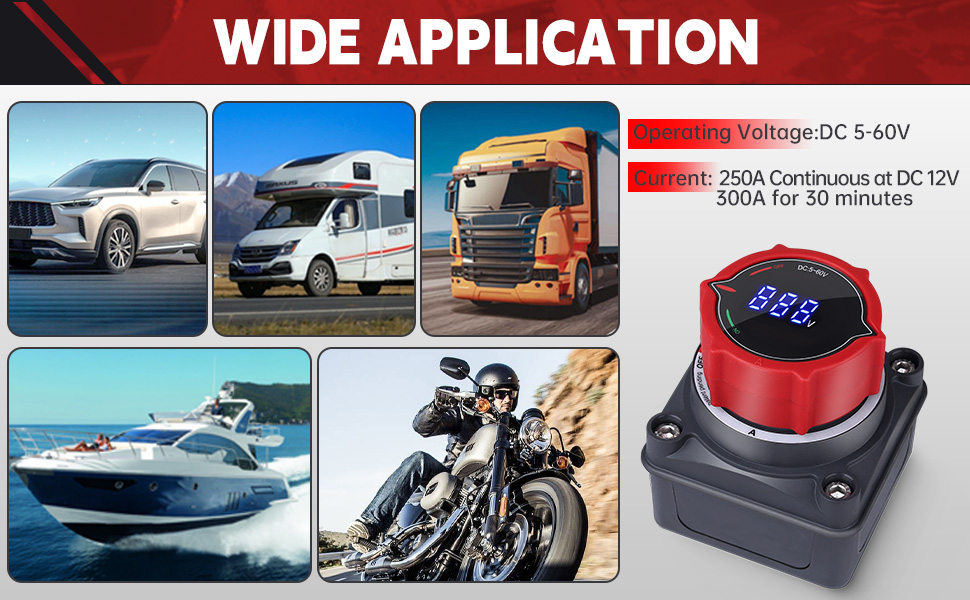

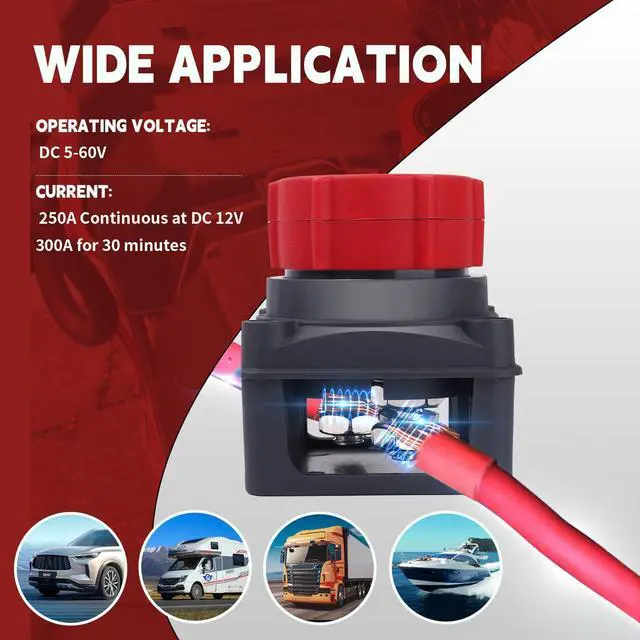

- Universal used for RV, Marine, Car, Boat, Camper, Travel Trailer, Truck, ATV, UTV battery and other engine application, makes it an effortless job of turning the battery on and off.

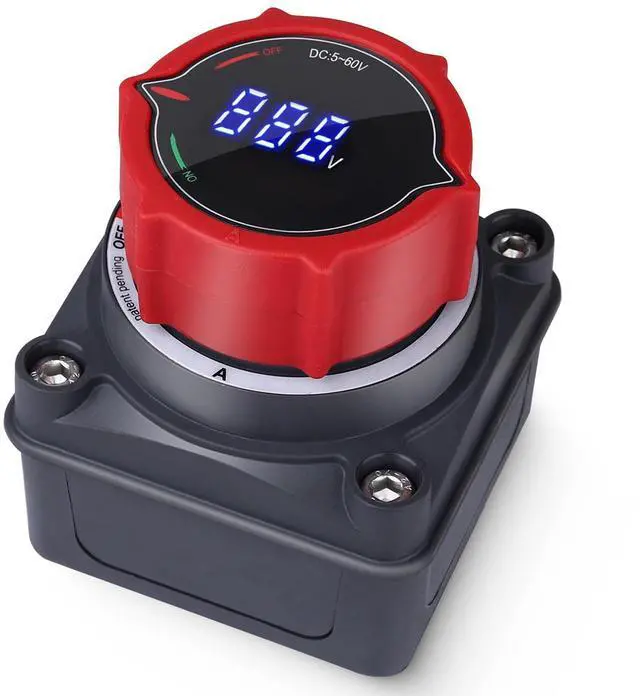

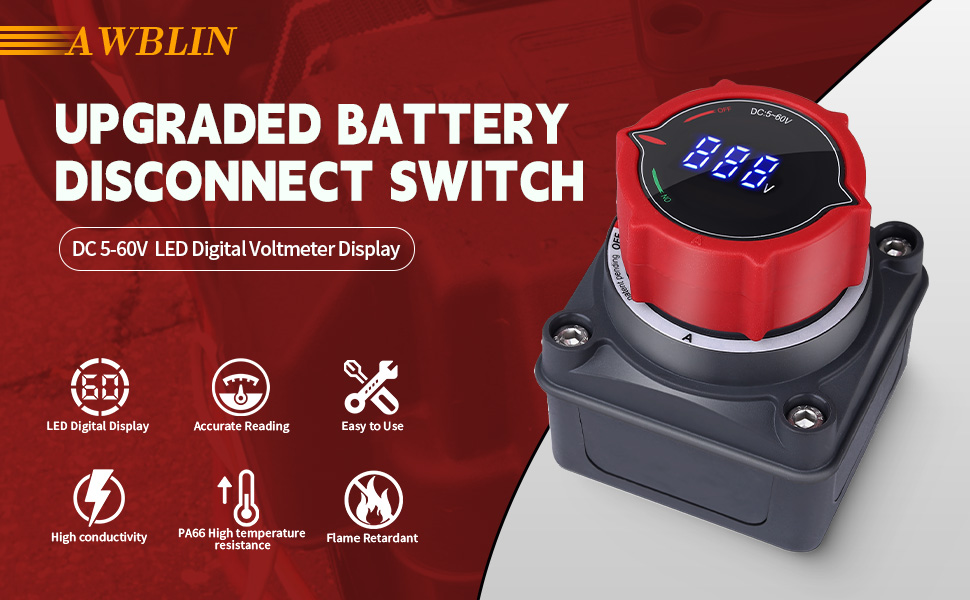

UPGRADE 5-60V BATTERY POWER SWITCH

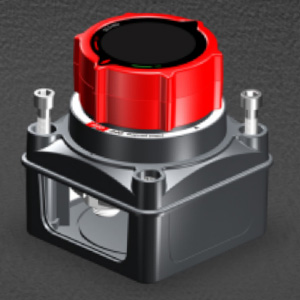

REMOVABLE PLATES
4 removable side plates provided access for battery cables. Rear cover insulates terminals against any short of circuits.
ADD A RUBBLE GASKET
Different from the ordinary switch, we added a black rubber pad to facilitate the installation of the lock plane plate, sealing and shock absorption effect is better.

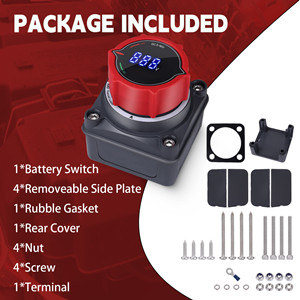

PACKAGE INCLUDE
- 1*Battery Switch
- 4*Removeable Side Plate
- 1*Rubble Gasket
- 1*Rear Cover
- 4*Nut
- 4*Screw
- 1*2/8" Terminal

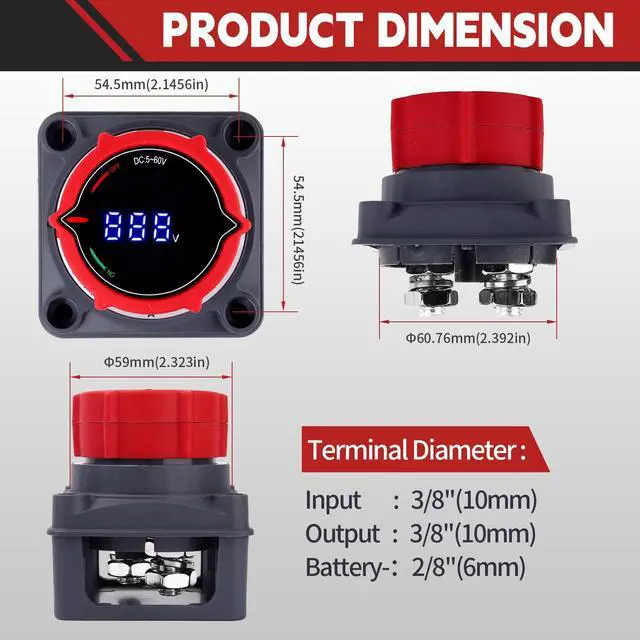

SPECIFICATION
- Operating Voltage: DC 5-60V
- Current: 250A Continuous at DC 12V, 300A for 30 minutes
- Resolustion: 0.1V
- Accuracy: 1%+2digitals
- Terminal Material: Silver-Plated Copper
- 2 Positions: ON/OFF
- Operating Temperature: -40°C--80°C
- Operating Humidity:<90%

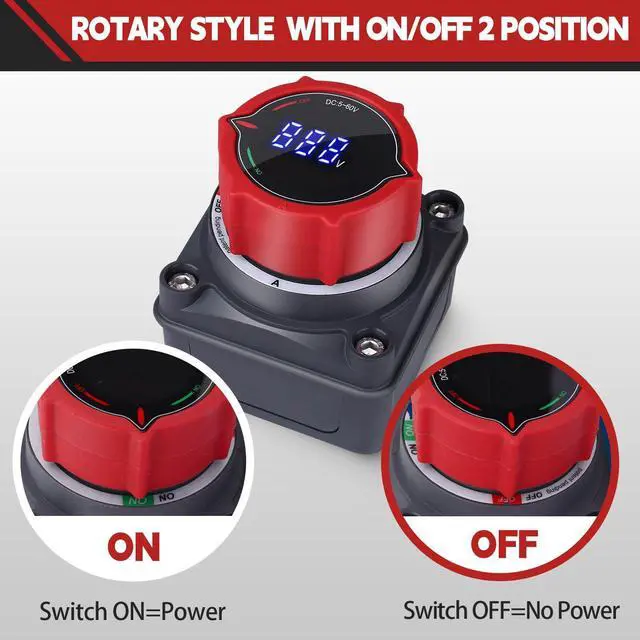

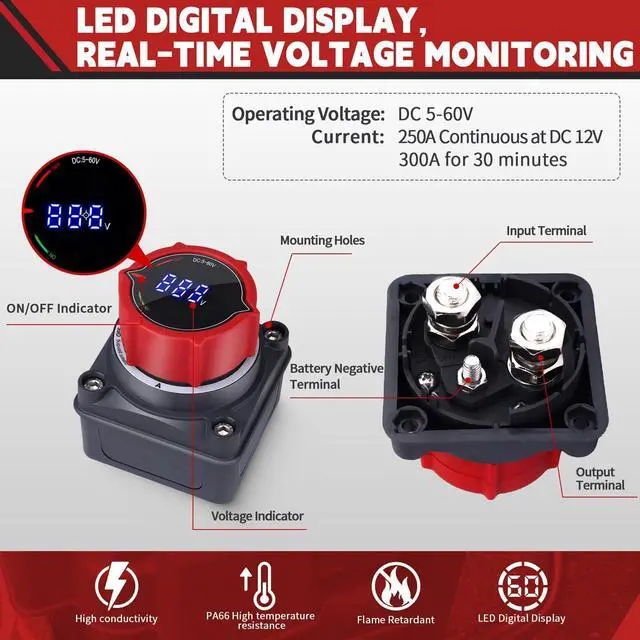

ROTARY SWITCH

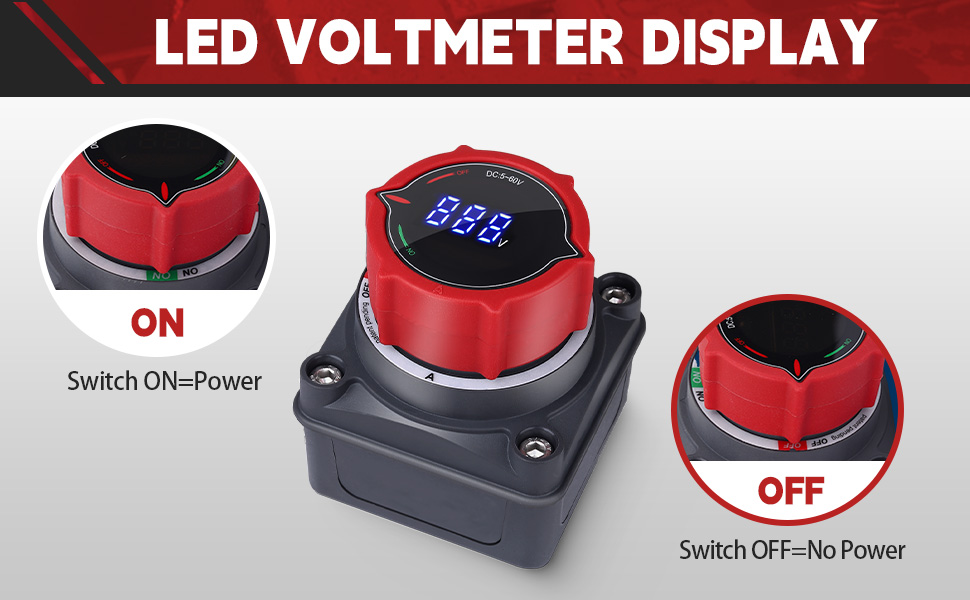

LED DIGITAL VOLTMETER DISPLAY, BETTER MONITOR THE BATTERY STATUS AT ANY TIME.
ON/OFF 2 POSTIONS:
- Clear ON/OFF color labels, easy to use.
- ON (green) represents the closed circuit and OFF (red) represents the cut-off circuit.
NOTE: If the display is always on, it means that you have incorrectly connected the input and output lines backwards

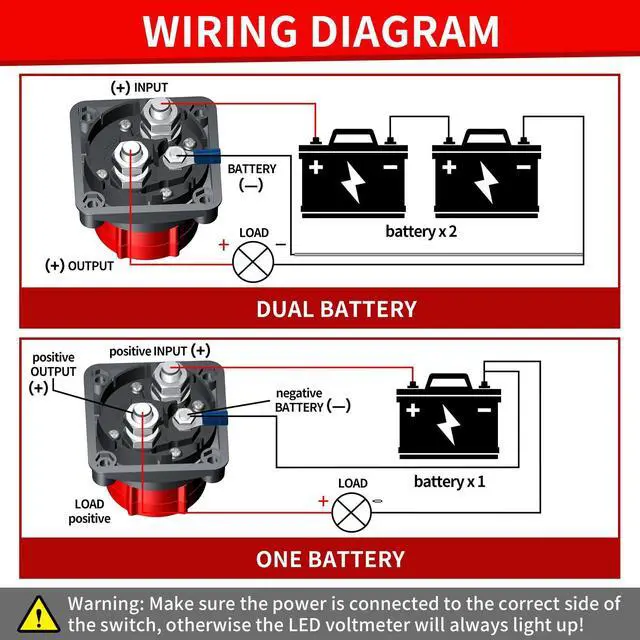

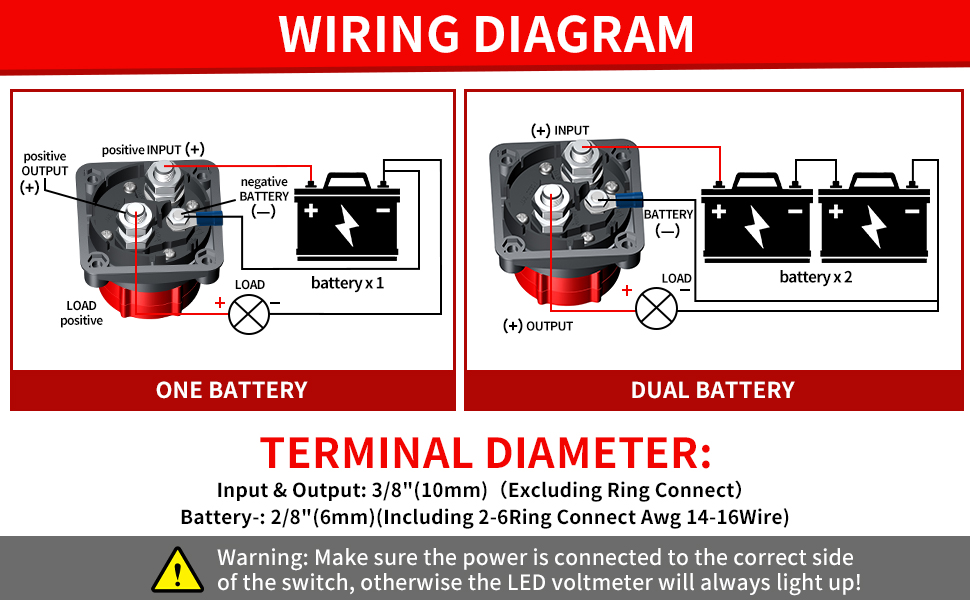

WIRING DIAGRAM
NOTE:
- The available voltage range of the product is DC 5-60V, do not use over the range.
- The rated current of the switch is 250A, please do not exceed this value for a long time! Otherwise the switch will burn out! !
- Please use the switch strictly according to the wiring diagram! Incorrect wiring will not have the effect of disconnecting the power.
- Do not short circuit the” BATTERY-” terminal with the ”INPUT” or “OUTPUT” terminal.
- If the DIGITAL LED DISPLAY is always on, that means the INPUT and OUTPUT are connected in reverse.

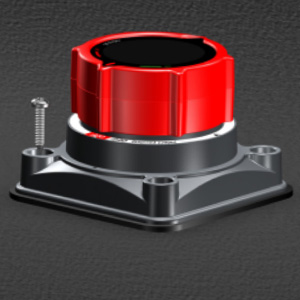

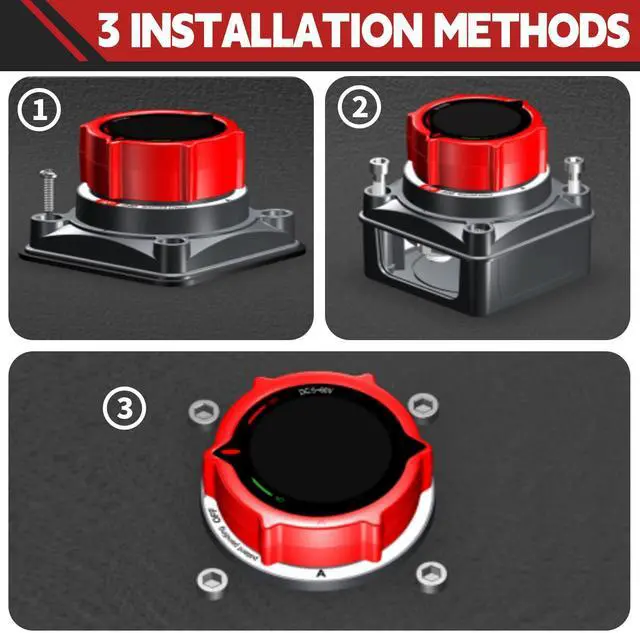

3 INSTALLATION METHODS

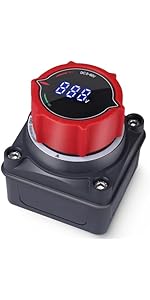

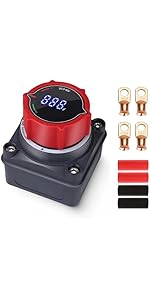

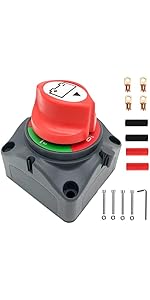

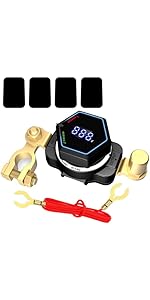

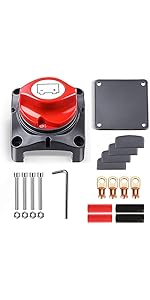

 Upgrade Battery Disconnect Switch with Voltmeter |  Top Post Battery Disconnect Switch with Voltmeter, DC 5-60V Master Iso... |  Upgrade Battery Disconnect Switch with Voltmeter and Terminals |  Upgrade Battery Disconnect Switch with Terminals |  Battery Disconnect Switch with Terminals | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Voltage Display | ? | ? | ? | no data | no data |
| Terminal Material | Silver-plated Copper | Silver-plated Copper | Silver-plated Copper | Copper | Copper |
| Shell Material | Nylon | Nylon | Nylon | ABS | ABS |
| Operation Mode | ON/OFF | TOP POST ON/OFF | ON/OFF | ON/OFF | ON/OFF |
| Current Rating | 250 Amps | 250 Amps | 250 Amps | 275 Amps | 275 Amps |
| Operating Voltage | DC 5-60V | DC 5-60V | DC 5-60V | DC 12-48V | DC 12-48V |
AWBLIN Upgrade Battery Cutoff Switch , Used For Battery To Isolate And Secure The Electrical System.
- This Battery Disconnect Switch helps prevent electrical accidents and theft. They also provide a reliable way to turn off power during maintenance, and protect against excessive battery consumption and disconnect the battery safely.
- Universal used for RV, Marine, Car, Boat, Camper, Travel Trailer, Truck, ATV, UTV battery and other engine application, makes it an effortless job of turning the battery on and off.
UPGRADE 5-60V BATTERY POWER SWITCH
REMOVABLE PLATES
4 removable side plates provided access for battery cables. Rear cover insulates terminals against any short of circuits.
ADD A RUBBLE GASKET
Different from the ordinary switch, we added a black rubber pad to facilitate the installation of the lock plane plate, sealing and shock absorption effect is better.
PACKAGE INCLUDE
- 1*Battery Switch
- 4*Removeable Side Plate
- 1*Rubble Gasket
- 1*Rear Cover
- 4*Nut
- 4*Screw
- 1*2/8" Terminal
SPECIFICATION
- Operating Voltage: DC 5-60V
- Current: 250A Continuous at DC 12V, 300A for 30 minutes
- Resolustion: 0.1V
- Accuracy: 1%+2digitals
- Terminal Material: Silver-Plated Copper
- 2 Positions: ON/OFF
- Operating Temperature: -40°C--80°C
- Operating Humidity:<90%
ROTARY SWITCH
LED DIGITAL VOLTMETER DISPLAY, BETTER MONITOR THE BATTERY STATUS AT ANY TIME.
ON/OFF 2 POSTIONS:
- Clear ON/OFF color labels, easy to use.
- ON (green) represents the closed circuit and OFF (red) represents the cut-off circuit.
NOTE: If the display is always on, it means that you have incorrectly connected the input and output lines backwards
WIRING DIAGRAM
NOTE:
- The available voltage range of the product is DC 5-60V, do not use over the range.
- The rated current of the switch is 250A, please do not exceed this value for a long time! Otherwise the switch will burn out! !
- Please use the switch strictly according to the wiring diagram! Incorrect wiring will not have the effect of disconnecting the power.
- Do not short circuit the” BATTERY-” terminal with the ”INPUT” or “OUTPUT” terminal.
- If the DIGITAL LED DISPLAY is always on, that means the INPUT and OUTPUT are connected in reverse.
3 INSTALLATION METHODS
Upgrade Battery Disconnect Switch with Voltmeter | Top Post Battery Disconnect Switch with Voltmeter, DC 5-60V Master Iso... | Upgrade Battery Disconnect Switch with Voltmeter and Terminals | Upgrade Battery Disconnect Switch with Terminals | Battery Disconnect Switch with Terminals | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Voltage Display | ? | ? | ? | no data | no data |
| Terminal Material | Silver-plated Copper | Silver-plated Copper | Silver-plated Copper | Copper | Copper |
| Shell Material | Nylon | Nylon | Nylon | ABS | ABS |
| Operation Mode | ON/OFF | TOP POST ON/OFF | ON/OFF | ON/OFF | ON/OFF |
| Current Rating | 250 Amps | 250 Amps | 250 Amps | 275 Amps | 275 Amps |
| Operating Voltage | DC 5-60V | DC 5-60V | DC 5-60V | DC 12-48V | DC 12-48V |
