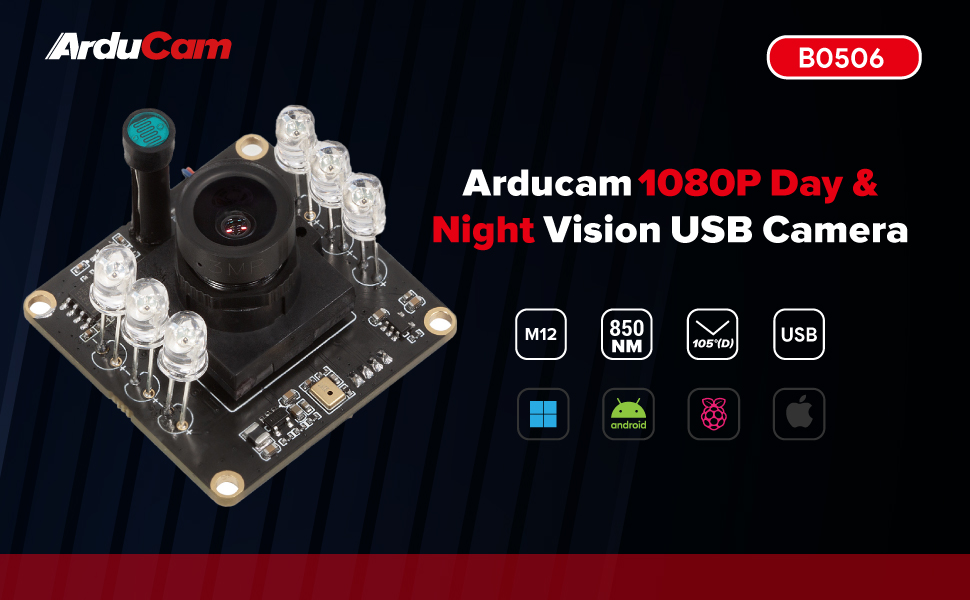

Introducing the latest Arducam USB2.0 camera, featuring a 1/2.7" CMOS OV2710 sensor for seamless 30fps@1080P video capture. With its exceptional day and night performance, this camera ensures clear and sharp imagery around the clock.
Equipped with a built-in IR LED and photoresistor, it seamlessly transitions between day and night modes, automatically activating IR light for optimal low-light performance. Coupled with its starlight-rated wide-angle M12 lens, it maximizes light intake for superior surveillance capabilities.
Forget about driver installations – simply connect via USB to your PC, laptop, Android device, or Raspberry Pi. Versatile and adaptable, this mini USB camera is perfect for home surveillance, 3D printer monitoring, video conferencing, dashcam, and more.

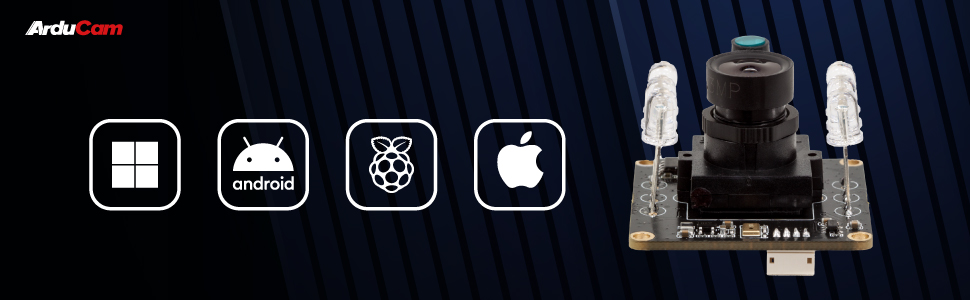

Plug-and-Play
UVC compliant, connect to PC, laptop, Android, or Raspberry Pi for versatile surveillance.

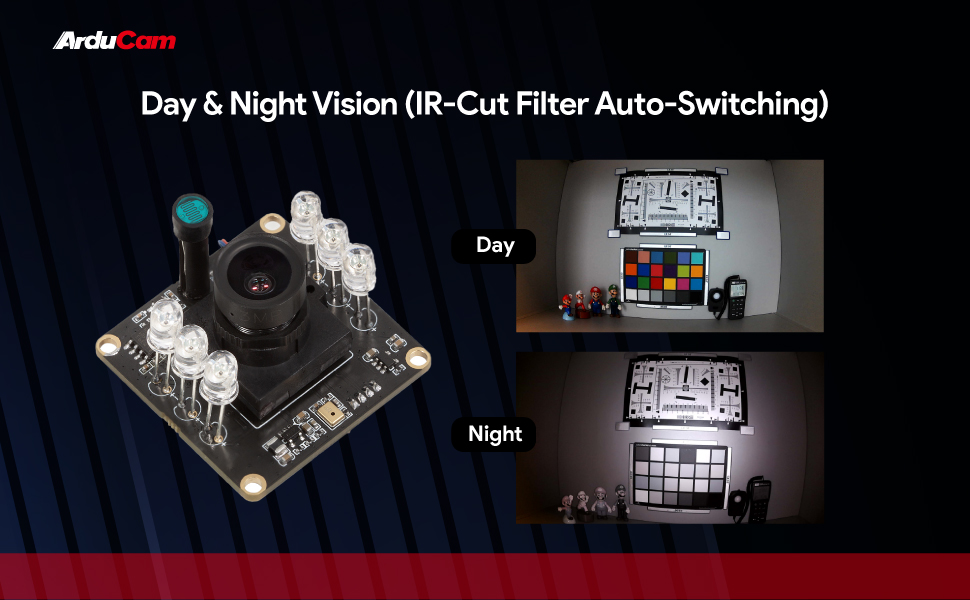

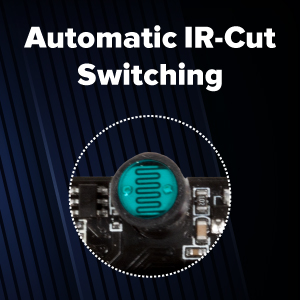

Automatic IR-Cut Switching
Seamless day-night transitions for enhanced vision.
Day/Night Vision

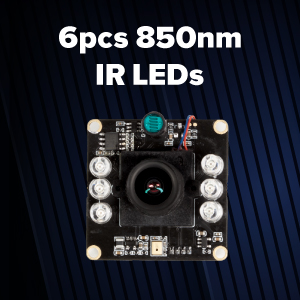

6pcs 850nm IR LEDs & photoresistor for clear imagery in low light

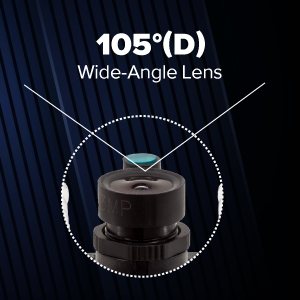

Wide-Angle Lens
105° starlight lens with F1.6 aperture captures intricate details.
Frame Rate
MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080

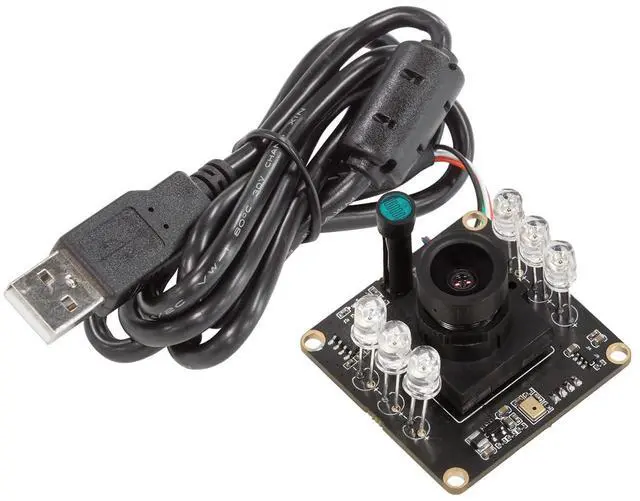

- 1 x OV2710 USB2.0 Camera
- 1 x 1m USB 2.0 Cable
Highlights
SENSOR: OV2710 2 Megapixels
Optical Size: 1/2.7"
Color Filter Type: Color/Mono
Output Format: MJPG/YUY2
Pixel Size: 3 µm x 3 µm
Sensor Active Area: 1920(H)×1080(V)

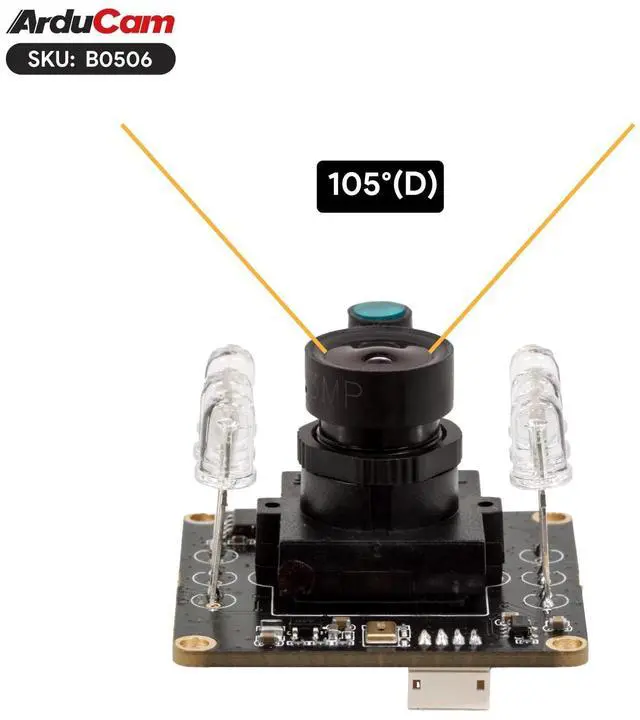

FoV: 105°(D) × 92°(H) × 76°(V)
Lens Mount: M12 (S-mount)
Default Focus Range: 2m-8
IR Sensitivity: Integral IR-Cut Filter (Only sensitive to visible light during the day, sensitive to IR at night with 850 IR LEDs on)
Specifications
Applications
- Animal Monitoring
- Video Surveillance
- 3D Scanning and Metrology
- Home Surveillance System
- Dashcam
 Arducam 1080P USB Camera, Day & Night Vision Webcam for Computer, 2MP Automat... |  Arducam 2.4MP Day & Night Vision USB Camera Module, 1080P Automatic IR-Cut Sw... |  Arducam 1080P Day & Night Vision USB Camera for Computer, 2MP Automatic IR-Cu... |  Arducam Starvis USB Camera Module, 1080P Low Light Webcam, Mini UVC USB2.0 Li... |  Arducam 1080P IMX291 Low Light USB Camera, 120° Wide Angle Lightburn Camera M... | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Sensor | OV2710 | STARVIS 2 Image Sensor | IMX462 | STARVIS 2 Image Sensor | IMX291 |
| Resolution | 2MP | 2.4MP | 2MP | 2.4MP | 2MP |
| Field of View | 105°(D) × 92°(H) × 76°(V) | 102°(D)×86°(H)×47°(V) | 95°(D)×83°(H)×67°(V) | 102°(D)×86°(H)×47°(V) | 120°(D) |
| Lens Mount | M12 | M12 | M12 | M12 | M12 |
| Frame Rate | MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080 | MJPG/H.264: 1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS;YUV: 640x480@30FPS, 320x240@30FPS; 320x320@30FPS, 128x128@30FPS; 96x96@30FPS; | YUY2: 30fps320×240, 640×480 MJPG: 30fps@320×240,640×480,1280×720,1920×1080 H264: 30fps@1920×1080,1280×720, 640×480, 640×360 | MJPG/H.264: 1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS; AI Resolution: 640x480@30FPS,320x320@30FPS, 320x240@30FPS, 128x128@30FPS; 96x96@30FPS; | H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x480 |
| IR LEDs | 6pcs 850nm IR LEDs | 8pcs 850nm IR LEDs | 6x 940nm IR LEDs | / | / |
| IR illumination distance | 3-5m | 18m | 3m | / | / |
| SKU | B0506 | B0590 | B0490 | B0576C | B0448 |
Introducing the latest Arducam USB2.0 camera, featuring a 1/2.7" CMOS OV2710 sensor for seamless 30fps@1080P video capture. With its exceptional day and night performance, this camera ensures clear and sharp imagery around the clock.
Equipped with a built-in IR LED and photoresistor, it seamlessly transitions between day and night modes, automatically activating IR light for optimal low-light performance. Coupled with its starlight-rated wide-angle M12 lens, it maximizes light intake for superior surveillance capabilities.
Forget about driver installations – simply connect via USB to your PC, laptop, Android device, or Raspberry Pi. Versatile and adaptable, this mini USB camera is perfect for home surveillance, 3D printer monitoring, video conferencing, dashcam, and more.
Plug-and-Play
UVC compliant, connect to PC, laptop, Android, or Raspberry Pi for versatile surveillance.
Automatic IR-Cut Switching
Seamless day-night transitions for enhanced vision.
Day/Night Vision
6pcs 850nm IR LEDs & photoresistor for clear imagery in low light
Wide-Angle Lens
105° starlight lens with F1.6 aperture captures intricate details.
Highlights
Frame Rate
MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080
- 1 x OV2710 USB2.0 Camera
- 1 x 1m USB 2.0 Cable
SENSOR: OV2710 2 Megapixels
Optical Size: 1/2.7"
Color Filter Type: Color/Mono
Output Format: MJPG/YUY2
Pixel Size: 3 µm x 3 µm
Sensor Active Area: 1920(H)×1080(V)
FoV: 105°(D) × 92°(H) × 76°(V)
Lens Mount: M12 (S-mount)
Default Focus Range: 2m-8
IR Sensitivity: Integral IR-Cut Filter (Only sensitive to visible light during the day, sensitive to IR at night with 850 IR LEDs on)
Specifications
| F.NO | F1.6±10% |
| E.F.L | 4.3±5% |
| Interface | USB 2.0 Device |

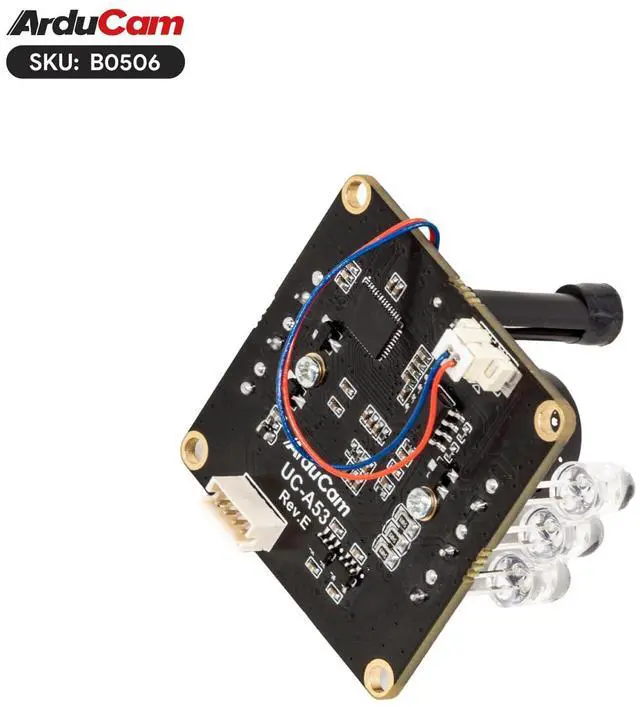

| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 2.0W |

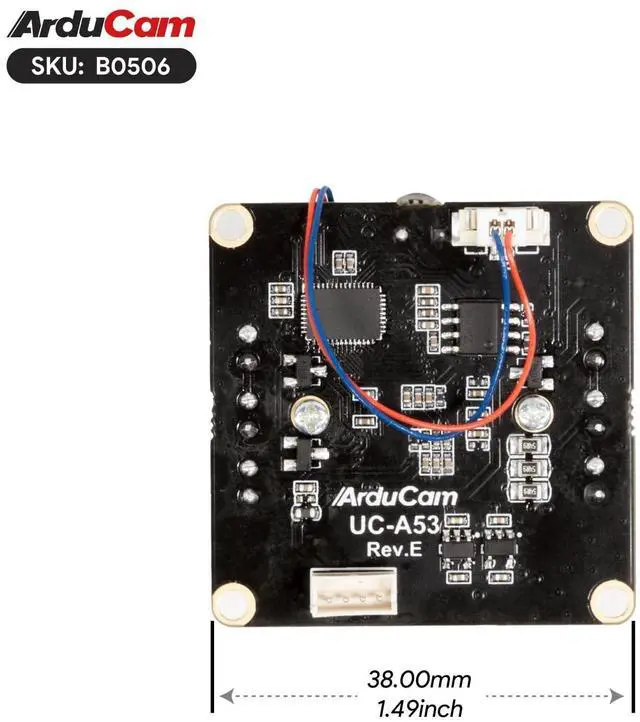

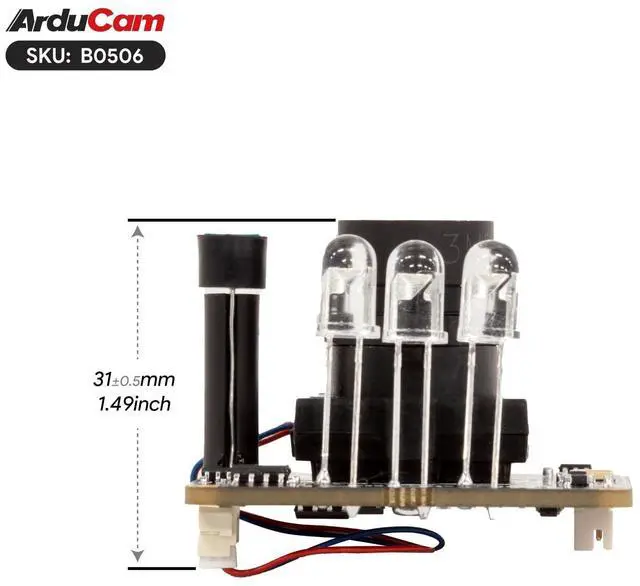

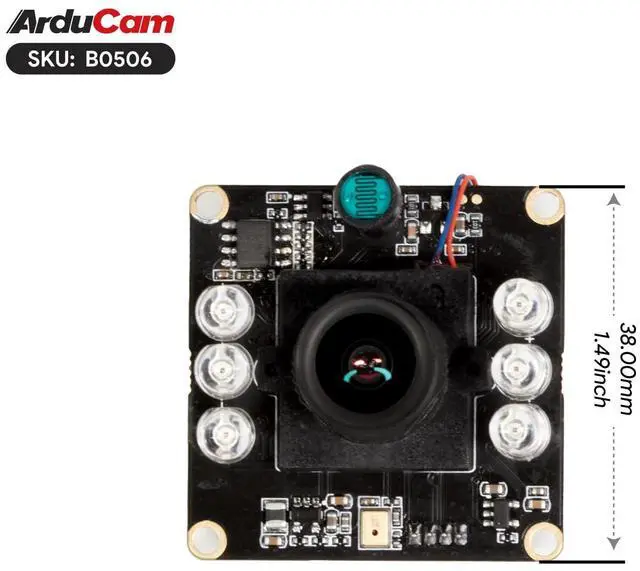

| Camera Board Size | 38×38 mm |
| Audio | Single Microphone |

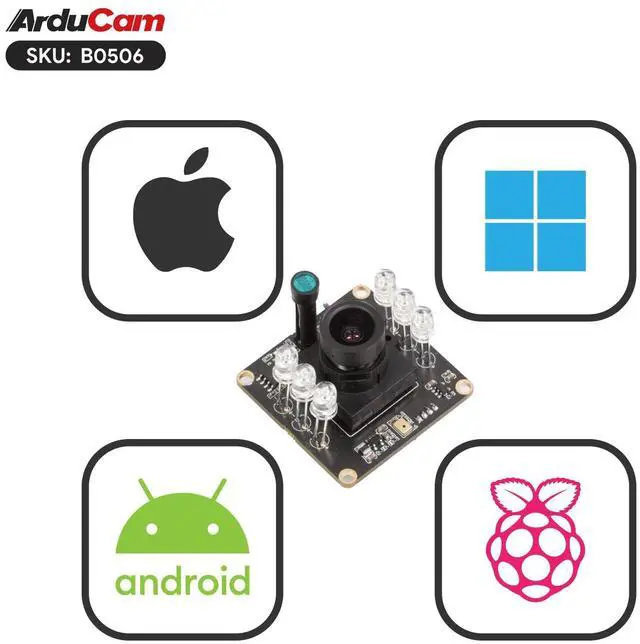

| Supported OS | Windows, Linux, Android and MAC OS |
| Sample Application | Amcap for Windows |
| UVC Controls | Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto) |
Applications
- Animal Monitoring
- Video Surveillance
- 3D Scanning and Metrology
- Home Surveillance System
- Dashcam
Arducam 1080P USB Camera, Day & Night Vision Webcam for Computer, 2MP Automat... | Arducam 2.4MP Day & Night Vision USB Camera Module, 1080P Automatic IR-Cut Sw... | Arducam 1080P Day & Night Vision USB Camera for Computer, 2MP Automatic IR-Cu... | Arducam Starvis USB Camera Module, 1080P Low Light Webcam, Mini UVC USB2.0 Li... | Arducam 1080P IMX291 Low Light USB Camera, 120° Wide Angle Lightburn Camera M... | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Sensor | OV2710 | STARVIS 2 Image Sensor | IMX462 | STARVIS 2 Image Sensor | IMX291 |
| Resolution | 2MP | 2.4MP | 2MP | 2.4MP | 2MP |
| Field of View | 105°(D) × 92°(H) × 76°(V) | 102°(D)×86°(H)×47°(V) | 95°(D)×83°(H)×67°(V) | 102°(D)×86°(H)×47°(V) | 120°(D) |
| Lens Mount | M12 | M12 | M12 | M12 | M12 |
| Frame Rate | MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080 | MJPG/H.264: 1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS;YUV: 640x480@30FPS, 320x240@30FPS; 320x320@30FPS, 128x128@30FPS; 96x96@30FPS; | YUY2: 30fps320×240, 640×480 MJPG: 30fps@320×240,640×480,1280×720,1920×1080 H264: 30fps@1920×1080,1280×720, 640×480, 640×360 | MJPG/H.264: 1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS; AI Resolution: 640x480@30FPS,320x320@30FPS, 320x240@30FPS, 128x128@30FPS; 96x96@30FPS; | H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x480 |
| IR LEDs | 6pcs 850nm IR LEDs | 8pcs 850nm IR LEDs | 6x 940nm IR LEDs | / | / |
| IR illumination distance | 3-5m | 18m | 3m | / | / |
| SKU | B0506 | B0590 | B0490 | B0576C | B0448 |
