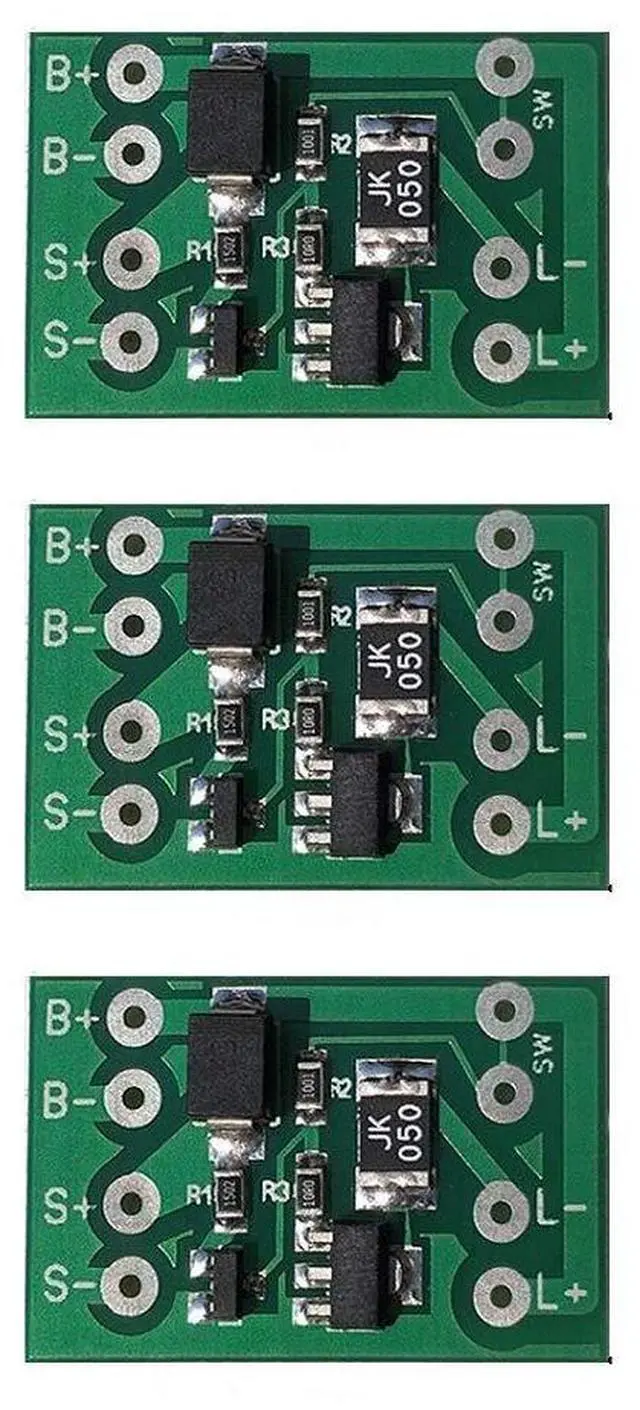

3Pcs Solar Charge Controller Board Lithium Battery Charging Controller Auto ON/OFF Light Control Switch For DIY Street Lights Garden Lights

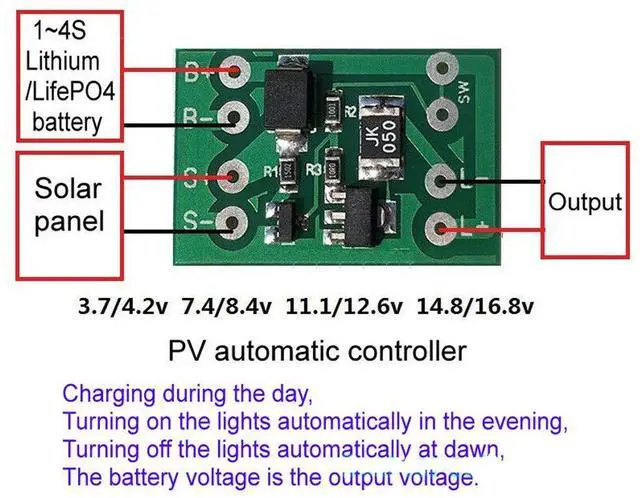

- Charging during the day, turning on the lights automatically in the evening, turning off the lights automatically at dawn, and the battery voltage is the output voltage.

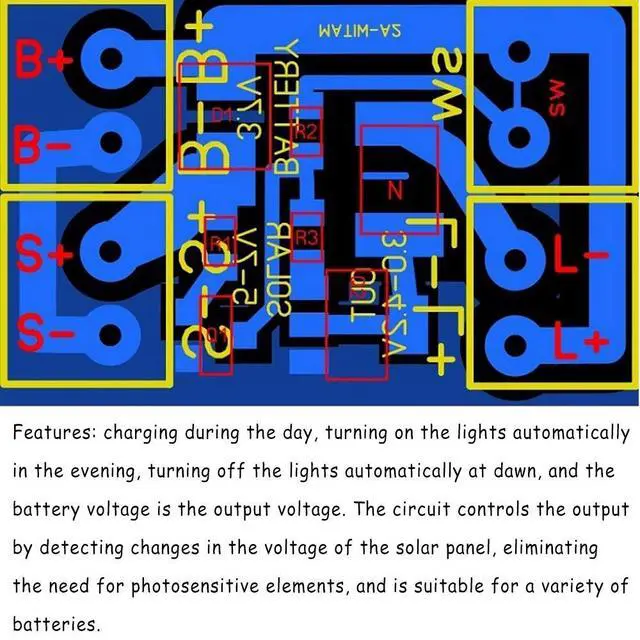

- The circuit controls the output by detecting changes in the voltage of the solar panel, eliminating the need for photosensitive elements, and is suitable for a variety of batteries.
- Scope of application: solar lawn lights, landscape lights, garden lights, corridor lights, DIY street lights, etc.
- Input voltage (solar): 4.5V-28V DC.
- Note: Batteries must be used with protective plates. Battery voltage and solar panel voltage and power must match. The LED operating voltage and power connected to the output must match the battery voltage.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Charge voltage:
Lithium battery: 3.6V-16.8V (1-4 String )
When input voltage 22-28V(20w,2A), access lithium battery: 4S
When input voltage 18-22V(18w,2A), access lithium battery: 3S
When input voltage 10-14V(15w,2A), access lithium battery: 2S
When input voltage 5-7V(12w,2A), access lithium battery: 1S
LiFePO4 battery: 3.2V-12.8V (1-4 String )
When input voltage 18-22V(20w,2A), 4S
When input voltage 12-14V(18w,2A), 3S
When input voltage 9-12V(15w,2A), 2S
When input voltage 4.5-7V(12w,2A), 1S
LED lights requirements:
4S can not exceed 12w
3S can not exceed 9w
2S can not exceed 5w
1S can not exceed 3w
Note
The board stable working output current: 600mA
Anti-reverse charging prevents over-charge and over-discharge protection. Batteries need to be protected.
The control board needs to pay attention to waterproof and insulation
The LED lamp can't use boost drive
The controller battery voltage is the output voltage, unlimited current limit voltage

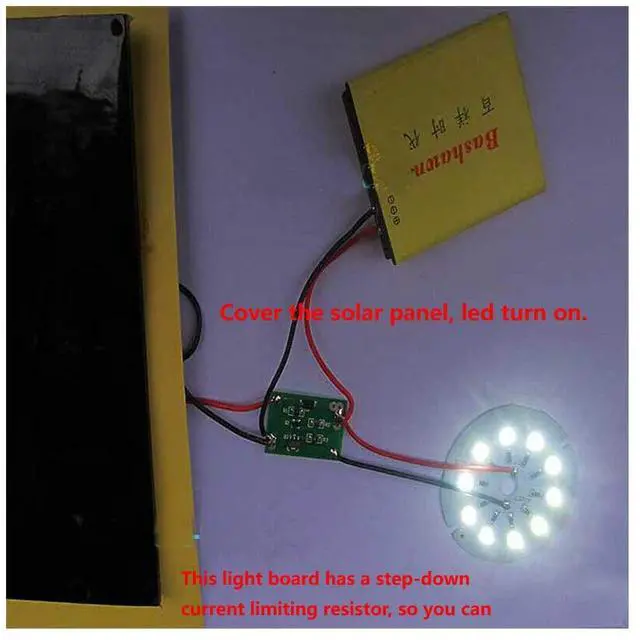

The LED lamp beads can not be used directly and need to be driven by a step-down drive or a series current limiting resistor
The LED lamp beads can not be used step up driver
If you need to close at night or transport storage,the switch interface SW has been reserved, and the opening can be installed by cutting
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Package Includes: 3pcs
