Available in all capacities

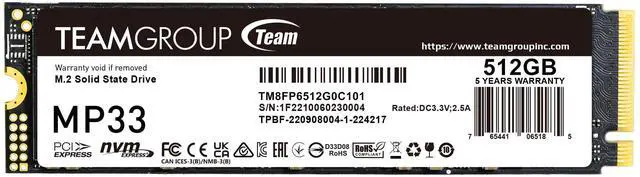

MP33 M.2 Solid State Drive are available in capacities of 256GB to 2TB.Using the size of current mainstream specification 2280(W:22mm,L:80mm), can be directly installed in the M.2 slot on the latest Intel and AMD motherboards. It is lightweight,thin,compact and supports Intel and AMD’s new platform.
The best bargain for upgrading
TEAMGROUP MP33 M.2 PCIe Solid State Drive. It uses high-speed PCIe Gen3 x4 interface and complies with the NVMe 1.3 standard. With 3D nand flash memory, it is a great bargain and the performance is excellent. Both laptop and PC users can afford it easily, making it the best choice for upgrading.
3 times faster than SATA III
The maximum read/write speed of MP33 M.2 PCIe Solid State Drive is 1,800/1,500MB/s, which is three times faster than SATA 6Gb/s interface. It is able to reduce operating delays while gaming and loading software that gives computer workers and gamers the finest and smoothest gaming experience.
SSD Comparison
 MP33 M.2 PCIe SSD |  MP44Q M.2 PCIe SSD |  MP44L M.2 PCIe 4.0 SSD |
|---|---|---|
Form Factor M.2 2280 | Form Factor M.2 2280 | Form Factor M.2 2280 |
Interface PCIe 3.0 x4 with NVMe 1.3 | Interface PCIe 4.0 Gen4x4 with NVMe | Interface PCIe 4.0 Gen4x4 with NVMe |
Capacity 256GB / 512GB / 1TB/ 2TB | Capacity 1TB / 2TB / 4TB | Capacity 500GB / 1TB / 2TB |
2TB Performance ( Read/Write ) 2TB Read/Write: up to 1,800/1,500 MB/s | 2TB Performance ( Read/Write ) 2TB Read/Write: up to 7,000/5,900 MB/s | 2TB Performance ( Read/Write ) 2TB Read/Write: up to 4,800 / 4,400MB/s |
Refer to the latest version on the official website. In case of discrepancies, the official website prevails.
TEAMGROUP Flash SSDs
• Supporting SLC Cache enhancing work efficiency drastically.
• Diversified optimization technology for stability, durability, and enhanced reliability.
• Supporting the latest NVMe 1.4 / 1.3 standards.
• S.M.A.R.T. monitoring software.
• Trustworthy and reliable service
TEAMGROUP NVME PCIe SSDs
M.2 SSD Installation Instructions
1. First, please turn off the computer and unplug the power cord
2. Find the M.2 SSD slot on the motherboard
Since each motherboard is designed differently, please refer to the user manual of the motherboard for exact location
M.2 SSD Installation Instructions
3. Insert the M.2 SSD
Due to differences in motherboards, before installing the M.2 SSD product, please remove the heat spreader or screws on the motherboard *(Note 1), and make sure the M.2 SSD matches the slot interface
Please remove all screws from the M.2 SSD slot and make sure there is no other interference
When installing the SSD, please carefully hold the left and right sides of the M.2 SSD product and align the product connector with the slot notch, then insert into the M.2 Slot at a 20-degree angle and screw into the mounting holes on the motherboard
M.2 SSD Installation Instructions
4. Complete assembly & start up the computer
Before starting, please check that no screws, parts, or foreign objects falling on the motherboard
Precautions:
*Avoid direct contact with PCB parts during installation to avoid damage caused by static electricity
*When screwing, be careful to avoid colliding with the IC parts on the motherboard and causing them to fall off
Available in all capacities
MP33 M.2 Solid State Drive are available in capacities of 256GB to 2TB.Using the size of current mainstream specification 2280(W:22mm,L:80mm), can be directly installed in the M.2 slot on the latest Intel and AMD motherboards. It is lightweight,thin,compact and supports Intel and AMD’s new platform.
The best bargain for upgrading
TEAMGROUP MP33 M.2 PCIe Solid State Drive. It uses high-speed PCIe Gen3 x4 interface and complies with the NVMe 1.3 standard. With 3D nand flash memory, it is a great bargain and the performance is excellent. Both laptop and PC users can afford it easily, making it the best choice for upgrading.
3 times faster than SATA III
The maximum read/write speed of MP33 M.2 PCIe Solid State Drive is 1,800/1,500MB/s, which is three times faster than SATA 6Gb/s interface. It is able to reduce operating delays while gaming and loading software that gives computer workers and gamers the finest and smoothest gaming experience.
| Model | MP33 M.2 PCIe SSD |
|---|---|
| Interface | PCIe 3.0 x4 with NVMe |
| Capacity | 256GB / 512GB / 1TB / 2TB |
| Voltage | DC +3.3V |
| Storage Temperature | -40°C ~ 85°C |
| DRAM Cache | No |
| Terabyte Written | 256GB - 65TBW, 512GB - 120TBW, 1TB - 240TBW, 2TB - 480TBW |
| Crystal Disk Mark Performance | 256GB Read/Write-1,600/1,000 MB/s, 512GB Read/Write-1,700/1,400 MB/s, 1TB Read/Write-1,800/1,500 MB/s, 2TB Read/Write-1,800/1,500 MB/s |
| Dimensions | 80(L) x 22(W) x 3.8(H) mm |
| MTBF | 1,500,000 hours |
| Operating System | System Requirements: Windows 11 / 10 / 8.1 / 8 / 7 Linux 2.6.33 or later |
SSD Comparison
Refer to the latest version on the official website. In case of discrepancies, the official website prevails.
TEAMGROUP Flash SSDs
• Supporting SLC Cache enhancing work efficiency drastically.
• Diversified optimization technology for stability, durability, and enhanced reliability.
• Supporting the latest NVMe 1.4 / 1.3 standards.
• S.M.A.R.T. monitoring software.
• Trustworthy and reliable service
TEAMGROUP NVME PCIe SSDs
M.2 SSD Installation Instructions
1. First, please turn off the computer and unplug the power cord
2. Find the M.2 SSD slot on the motherboard
Since each motherboard is designed differently, please refer to the user manual of the motherboard for exact location
M.2 SSD Installation Instructions
3. Insert the M.2 SSD
Due to differences in motherboards, before installing the M.2 SSD product, please remove the heat spreader or screws on the motherboard *(Note 1), and make sure the M.2 SSD matches the slot interface
Please remove all screws from the M.2 SSD slot and make sure there is no other interference
When installing the SSD, please carefully hold the left and right sides of the M.2 SSD product and align the product connector with the slot notch, then insert into the M.2 Slot at a 20-degree angle and screw into the mounting holes on the motherboard
M.2 SSD Installation Instructions
4. Complete assembly & start up the computer
Before starting, please check that no screws, parts, or foreign objects falling on the motherboard
Precautions:
*Avoid direct contact with PCB parts during installation to avoid damage caused by static electricity
*When screwing, be careful to avoid colliding with the IC parts on the motherboard and causing them to fall off
