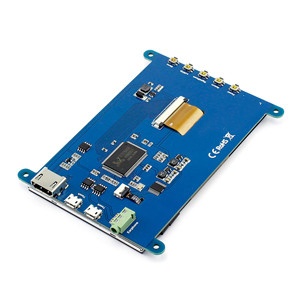

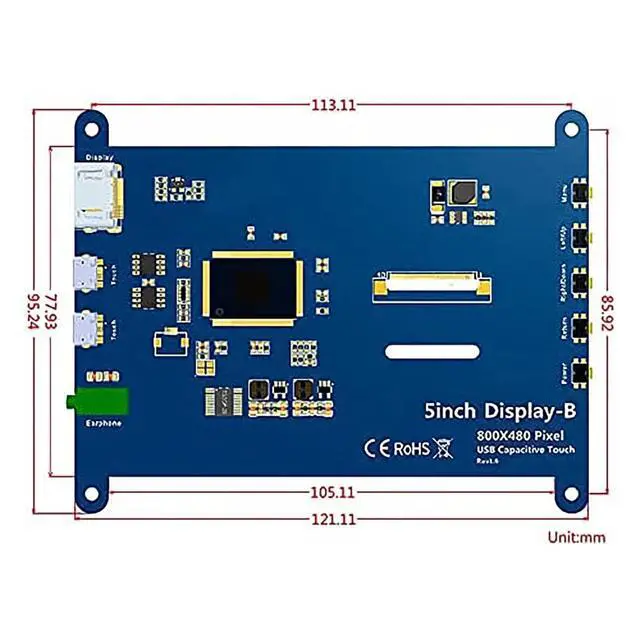

Hareware Description
Earphone: 3.5mm audio outputinterface
Touch: USB connector for power supply & touch output
HD interface: For signal transmission
Power: Controls the backlight to save power
Return: Return (Only valid in the OSD menu)
Up/Down: Direction & Backlight shortcut
Menu: Open the OSD/Select (Only valid in the OSD Settings menu)

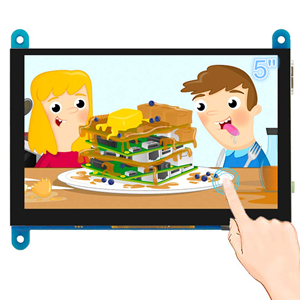

Small HDMI-compatble Screen
It's a 5 inch tiny screen equipped with a very useful HD port.
Generally it works with most HDMI-compatible device with standard HD interface, but please note that the touch function is just for windows and RPi system.

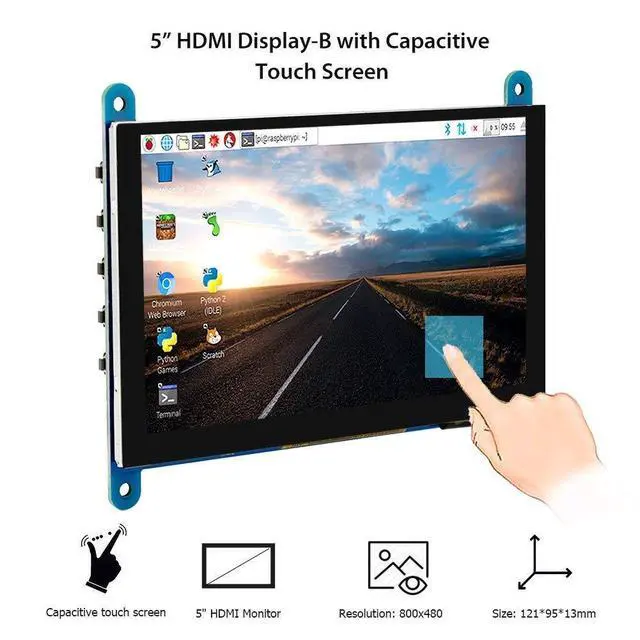

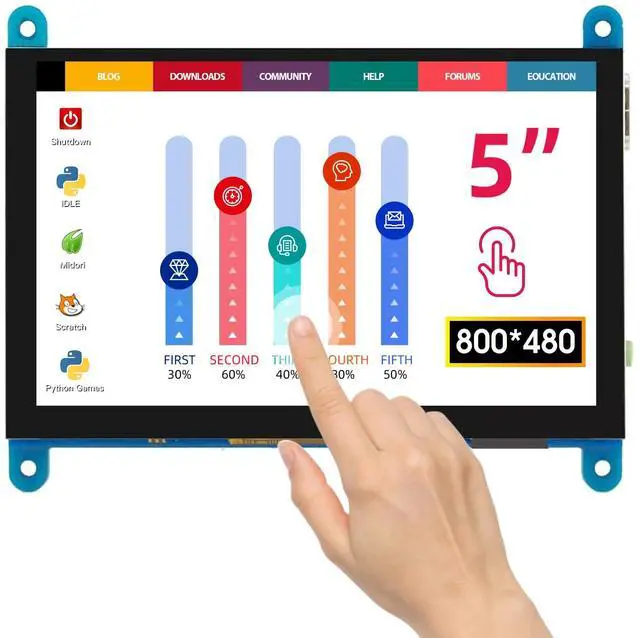

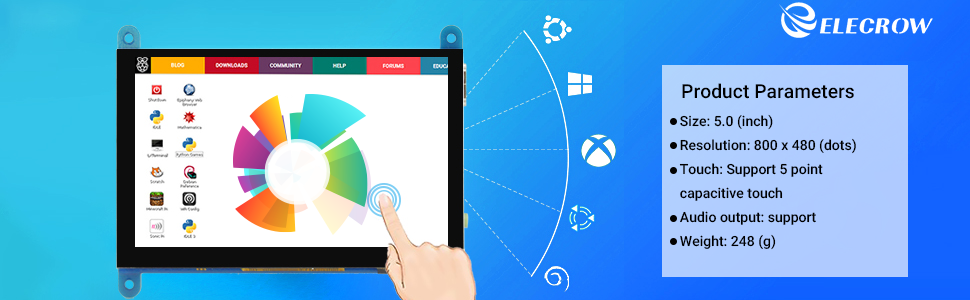

5 Inch 800 x 480 Capacitive Mini Monitor
The resolution of the LCD display is 800 x 480, you can configure the resolution via software, the maximum resolution it supports is 1920 x 1080.
It supports five touch control, besides that, the LCD screen comes with an OSD menu adjustment function.
You can adjust the contrast, brightness, switch button.

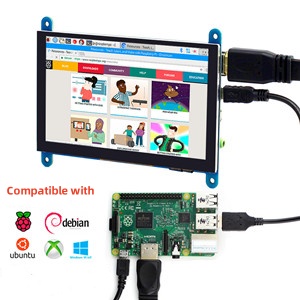

Wide Applications

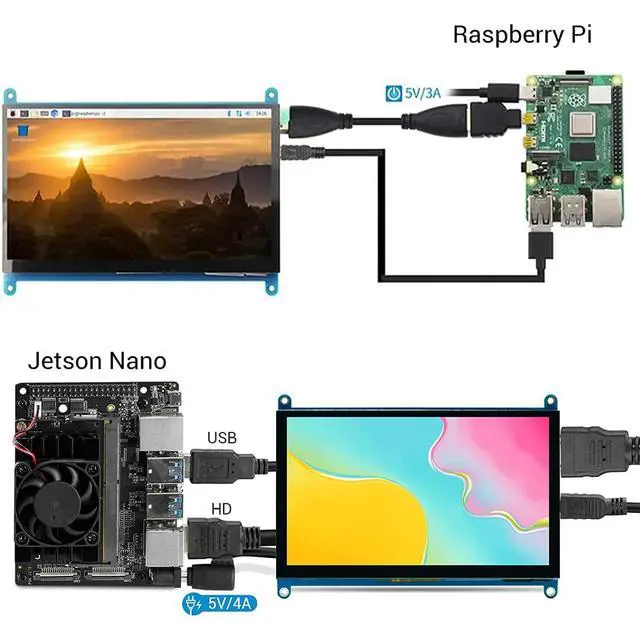

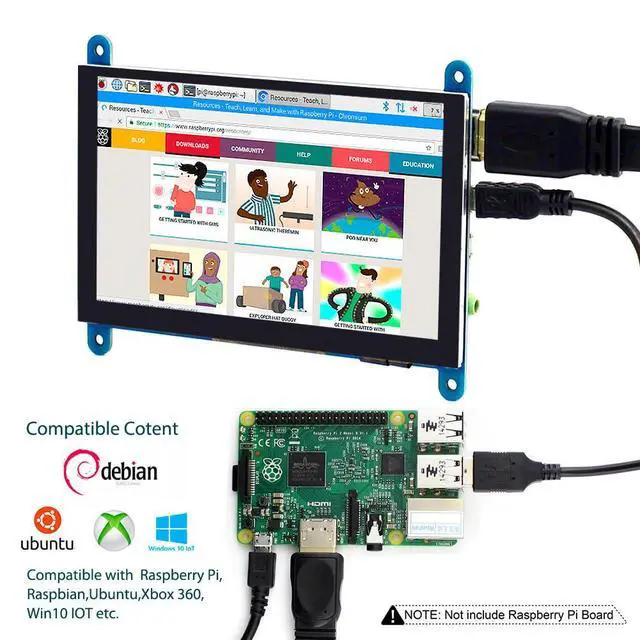

- When works with Raspberry Pi, supports Raspbian, Ubuntu, Kodi, Win10 IOT (need to be configured first), single touch, free driver.
- When work as a computer monitor, supports Windows 10/8/7, plug & play, 5 point touch, free driver.
- Supports popular game consoles, compatible with XBOX, PS, Switch etc, plug & play, no touch.

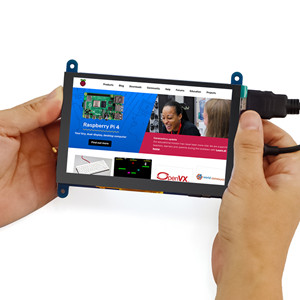

- When intended for Raspberry Pi 4, please connect to HDMI-0 port.

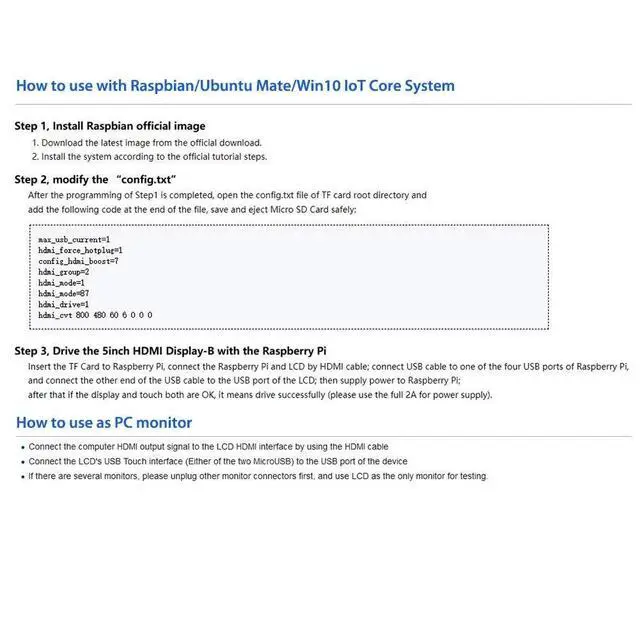

- When intended for Raspberry Pi 4, for the system after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

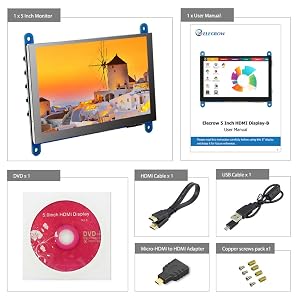

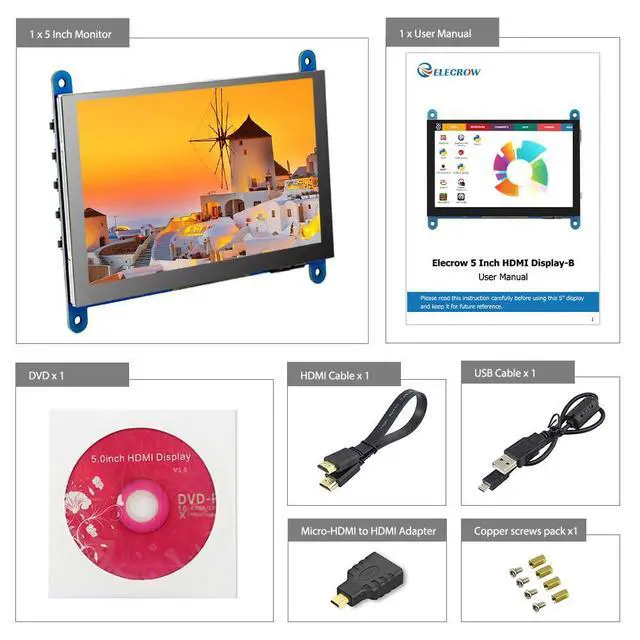

Package list
- 1 x 5 inch HD Display
- 1 x HDMI-compatible cable
- 1 x Micro USB cable
- 1 x Micro-HDMI-compatible to HDMI-compatible Adapter
- 1 x DVD
- 1 x Copper screw bag
 5 Inch Resistive Touch Screen |  5 Inch Capacitive Touch Screen |  5 Inch Capacitive Touch Screen with Stand |  5 Inch ESP32 Touchscreen Monitor |  7 Inch Capacitive Touch Screen |  7 Inch Capacitive Touch Screen with Stand | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |
| Screen Size | 5 Inch | 5 Inch | 5 Inch | 5 Inch | 7 Inch | 7 Inch |
| Screen Type | Resistive | Capacitive | Capacitive | Capacitive | Capacitive | Capacitive |
| Resolution | 800x480 | 800x480 | 800x480 | 800x480 | 1024x600 | 1024x600 |
| Refresh Rate | 60HZ | 60HZ | 60HZ | 240MHz | 60HZ | 60HZ |
| Touchscreen | ? | ? | ? | ? | ? | ? |
| Earphone/Speaker | NO | Earphone | Speaker | Speaker | NO | Earphone & Speaker |
| With Stand | NO | NO | ? | NO | NO | ? |
| Multi-port | USB/HD/13*2 Pin Socket/Extended Interface | Type C/HD/3.5MM Headphone/4P Speaker | 2 Micro USB/HD/Fan | I2C/GPIO_D/UART0/BAT/SPK/TF | USB/HD | 2 Micro USB/HD/Earphone/Fan |
| Button | Backlight Power Switch | Toggle Up/Down | Backlight/Volume | BOOT/Reset | Backlight Power Switch | Backlight/Volume |
Hareware Description
Earphone: 3.5mm audio outputinterface
Touch: USB connector for power supply & touch output
HD interface: For signal transmission
Power: Controls the backlight to save power
Return: Return (Only valid in the OSD menu)
Up/Down: Direction & Backlight shortcut
Menu: Open the OSD/Select (Only valid in the OSD Settings menu)
Small HDMI-compatble Screen
It's a 5 inch tiny screen equipped with a very useful HD port.
Generally it works with most HDMI-compatible device with standard HD interface, but please note that the touch function is just for windows and RPi system.
5 Inch 800 x 480 Capacitive Mini Monitor
The resolution of the LCD display is 800 x 480, you can configure the resolution via software, the maximum resolution it supports is 1920 x 1080.
It supports five touch control, besides that, the LCD screen comes with an OSD menu adjustment function.
You can adjust the contrast, brightness, switch button.
Wide Applications
- When works with Raspberry Pi, supports Raspbian, Ubuntu, Kodi, Win10 IOT (need to be configured first), single touch, free driver.
- When work as a computer monitor, supports Windows 10/8/7, plug & play, 5 point touch, free driver.
- Supports popular game consoles, compatible with XBOX, PS, Switch etc, plug & play, no touch.
- When intended for Raspberry Pi 4, please connect to HDMI-0 port.
- When intended for Raspberry Pi 4, for the system after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.
Package list
- 1 x 5 inch HD Display
- 1 x HDMI-compatible cable
- 1 x Micro USB cable
- 1 x Micro-HDMI-compatible to HDMI-compatible Adapter
- 1 x DVD
- 1 x Copper screw bag
5 Inch Resistive Touch Screen | 5 Inch Capacitive Touch Screen | 5 Inch Capacitive Touch Screen with Stand | 5 Inch ESP32 Touchscreen Monitor | 7 Inch Capacitive Touch Screen |  7 Inch Capacitive Touch Screen with Stand | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |
| Screen Size | 5 Inch | 5 Inch | 5 Inch | 5 Inch | 7 Inch | 7 Inch |
| Screen Type | Resistive | Capacitive | Capacitive | Capacitive | Capacitive | Capacitive |
| Resolution | 800x480 | 800x480 | 800x480 | 800x480 | 1024x600 | 1024x600 |
| Refresh Rate | 60HZ | 60HZ | 60HZ | 240MHz | 60HZ | 60HZ |
| Touchscreen | ? | ? | ? | ? | ? | ? |
| Earphone/Speaker | NO | Earphone | Speaker | Speaker | NO | Earphone & Speaker |
| With Stand | NO | NO | ? | NO | NO | ? |
| Multi-port | USB/HD/13*2 Pin Socket/Extended Interface | Type C/HD/3.5MM Headphone/4P Speaker | 2 Micro USB/HD/Fan | I2C/GPIO_D/UART0/BAT/SPK/TF | USB/HD | 2 Micro USB/HD/Earphone/Fan |
| Button | Backlight Power Switch | Toggle Up/Down | Backlight/Volume | BOOT/Reset | Backlight Power Switch | Backlight/Volume |
