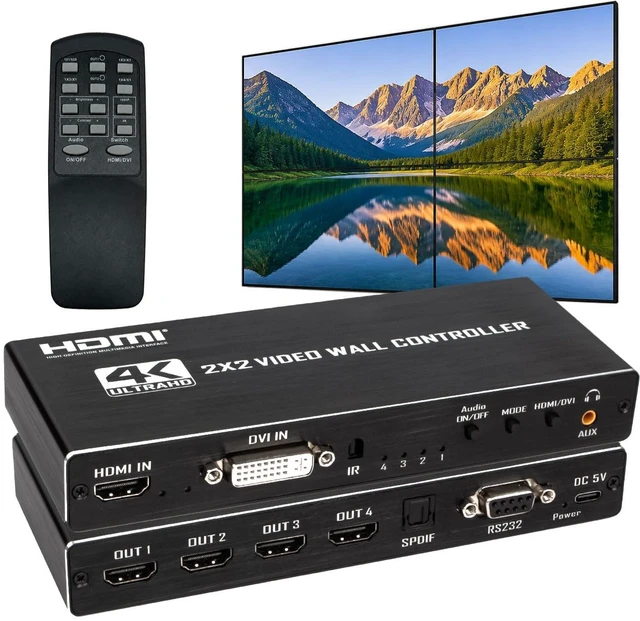

2x2 4k Video Wall Controller, Transform 4 TV Screens into a Single Wall Display with HDMI & DVI 4K Input, 180° Rotation, Audio Output, IR Remote/RS232/Button Press Control
- 2x2 4K video wall controller supports HDMI or DVI input and has 4 HDMI outputs. Its core function is to split a complete HDMI or DVI 4K image signal into 4 HDMI outputs for display on devices like rear - projection units and LCD TVs. This allows you to combine 4 TV screens into one large dynamic image wall.
- Each channels HDMI output supports various resolutions including 1920*1080, 1280x800, etc., and the input can support a resolution up to 4K@30Hz (DVI does not support 4K).

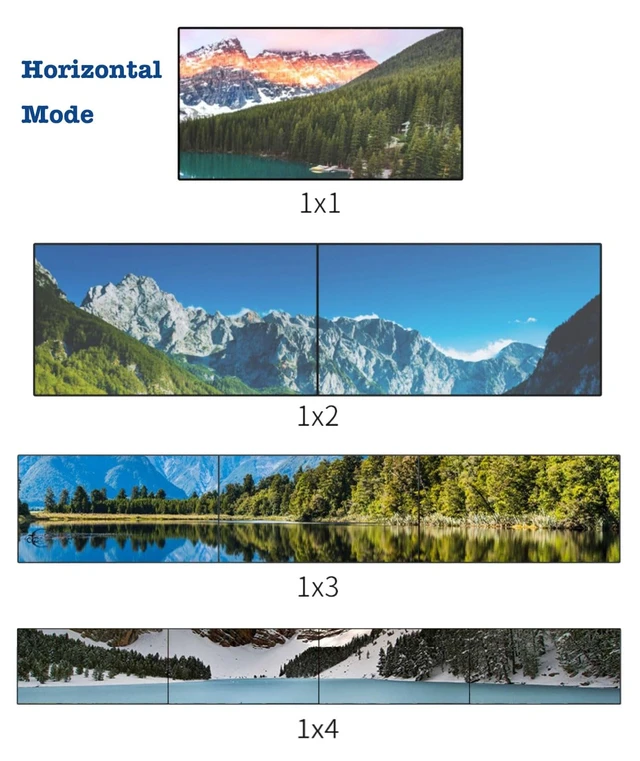

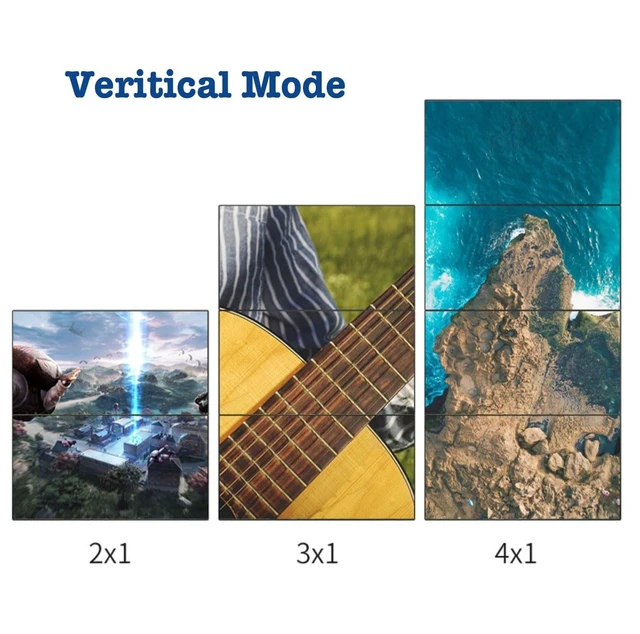

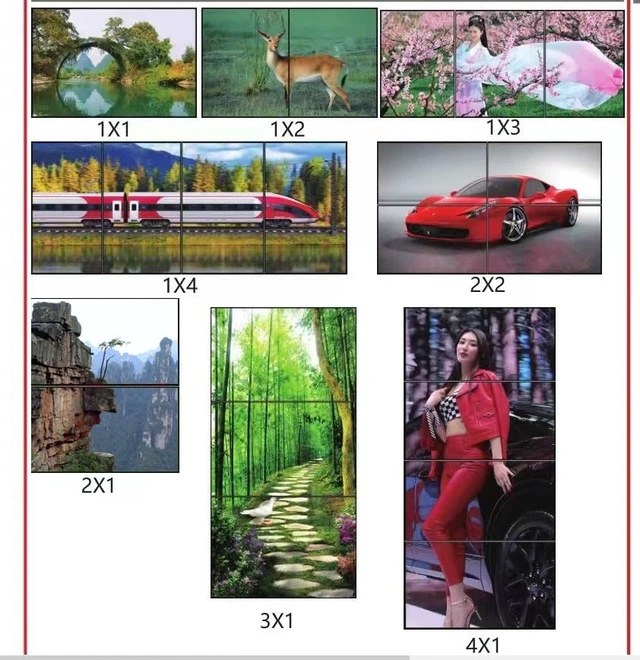

- This TV wall controller offers 11 different splicing modes, such as 2x2, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, and a 1x1 HDMI splitter mode. It has a vertical splicing function. When using a PC as input and rotating the desktop portrait, you can set portrait modes 1x2, 1x3, 1x4, but need to select corresponding horizontal modes for the desired portrait display. All modes are easily controlled via hotkeys on the remote or button presses.
- The 2x2 video wall controller supports IR remote control, RS232 control, and button - press control. The remote has commonly used modes for direct operation. Moreover, it has a memory function, remembering the last settings when plugged in again, ensuring a seamless experience
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Introduction
The 4K 2×2 video wall controller supports 1-way HDMI or DVI input and 4 HDMI output. The main function is to divide a complete HDMI, DVI HD image singal into 4 blocks and assign to 4 video display unit (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.

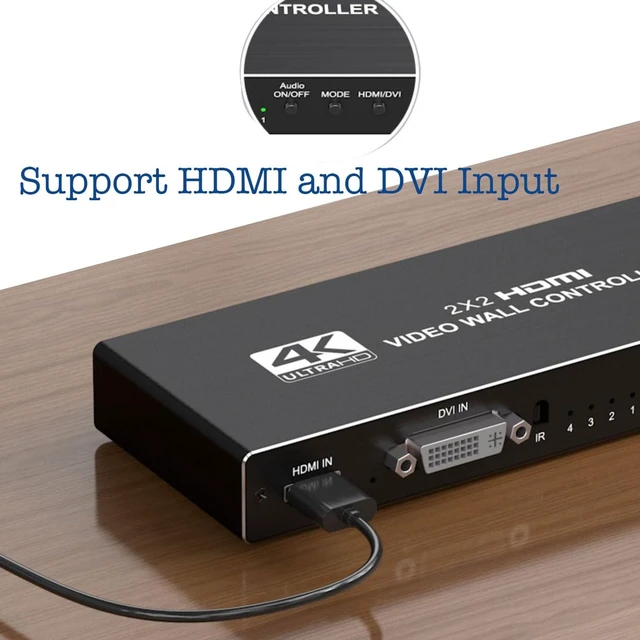

*Supports one DVI input or HDMI input
*Input support HDMI1.4, HDCP1.4
*Input format: RGB/YUV24bit
*Output format: RGB444 24bit
*Support 2X2 stitching, easy operation, plug and play
*Input support 1920x1080P 25/30/50/60Hz,3840x2160P 24/30Hz
*Support four HDMI output, one 3.5mm stereo output
*Supports 5.1CH audio output over optical fibers
*Output support 1920x1080P 60Hz
*Supports RS232
*Supports remote control
Package Includes:
* 1 x 4K 2X2 video wall controller
* 1 x Remote control(Powered by AAA batteries, which is not included)
* 1 x User manual
* 1 x 5V/2A power adapter
