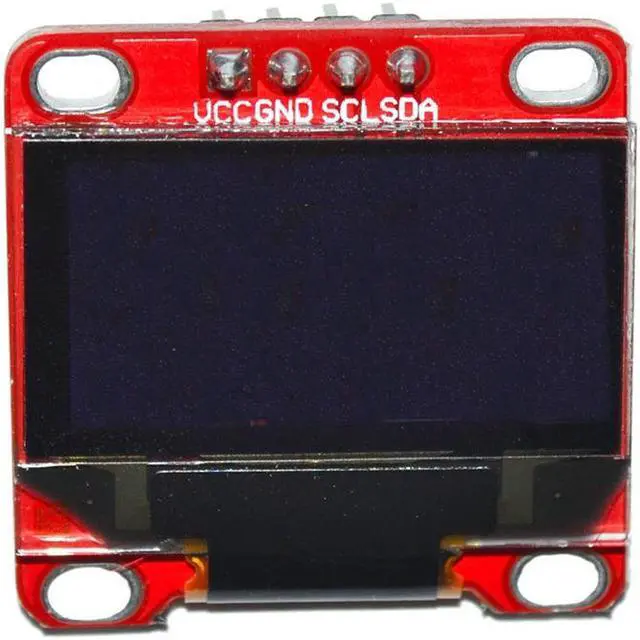

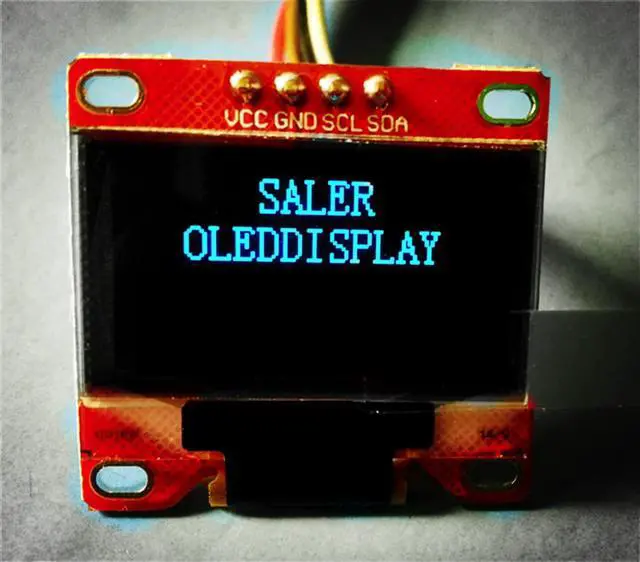

0.96 inch OLED Display Module Screen 128x64 IIC I2C for Arduino STM32 AVR 27 * 26mm Dot Color Blue

Description:

• Dimensions: 27 * 26mm
• Dot Color: Blue
• 128x64 dot matrix display area, each point can be its own light, so it is not backlit this statement!
• Can display Chinese characters, English characters, patterns, etc.,
• can operate independently of any one of 128 * 64 LED points!
• Looks very nice, very high contrast!
• And light weight, small size, is that you participate in the contest Freescale smart car choice!


Module interface sequence is:

• GND -------------------- negative power
• VCC -------------------- 3 to 5V DC power supply
• SCL -------------------- signal line connected MCU pin
• SAD -------------------- signal line connected MCU pin

Module features:

• No backlight, the display unit can be self-luminous
• High resolution: 128 * 64 (with LCD12864 the same, but the whole point of this product is more dense)
• Viewing angle: > 160 ° (almost one plane is a)
• Supports many control chip: Fully compatible with Freescale's K series, cold fire series, XS128, Arduino, 51 series, AVR, MSP430 series, STM32, CSR chips (a lot of routines for reference)
• Ultra-low power consumption: full screen lit 0.08W, normal full-screen characters 0.06W (far below the TFT, LCD and other technologies)
• Wide voltage support: without any modification, directly supports 3V ~ 5V DC
• Working temperature: -30 °C ~ 70 °C

Package Content:

• 1pcs 0.96 inch OLED Display Module
