VIDEO CARD ONLY => NOTHING ELSE! NO ACCESSORIES! VIDEO CARD COMES IN PLAIN NON-RETAIL BOX WITHOUT ANY ACCESSORIES AS PICTURED! IF IT'S NOT PICTURED => IT'S NOT INCLUDED! HARDWARE USED FOR TESTING (MOTHERBOARD, CPU, Monitor, RAM, PSU, etc.) IS NOT INCLUDED!

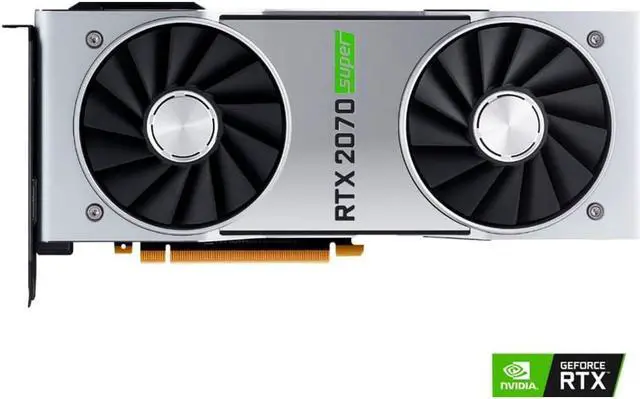

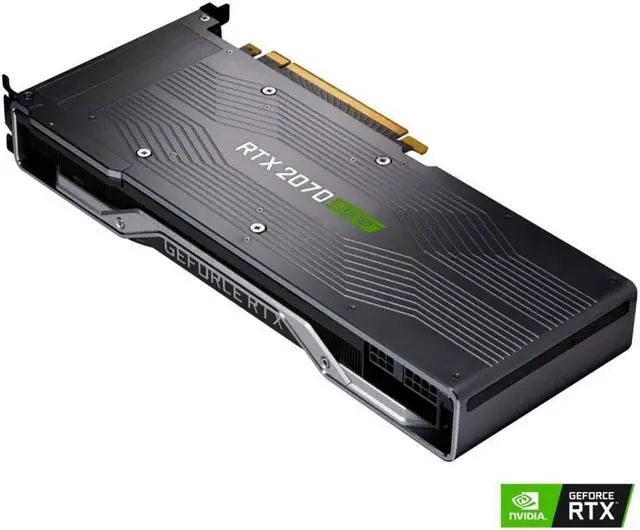

The GeForce RTX 2070 SUPER is a high-end graphics card by NVIDIA.
Built on the 12 nm process, and based on the TU104 graphics processor.
In its TU104-410-A1 variant, the card supports DirectX 12 Ultimate - this ensures that all modern games will run on GeForce RTX 2070 SUPER.
DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. The TU104 graphics processor is a large chip with a die area of 545 mm² and 13,600 million transistors.
Unlike the fully unlocked GeForce RTX 2080 SUPER, which uses the same GPU but has all 3072 shaders enabled, NVIDIA has disabled some shading units on the GeForce RTX 2070 SUPER to reach the product's target shader count.
It features 2560 shading units, 160 texture mapping units, and 64 ROPs.
Also included are 320 tensor cores which help improve the speed of machine learning applications.
The card also has 40 raytracing acceleration cores.
NVIDIA has paired 8 GB GDDR6 memory with the GeForce RTX 2070 SUPER, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1605 MHz, which can be boosted up to 1770 MHz, memory is running at 1750 MHz (14 Gbps effective).

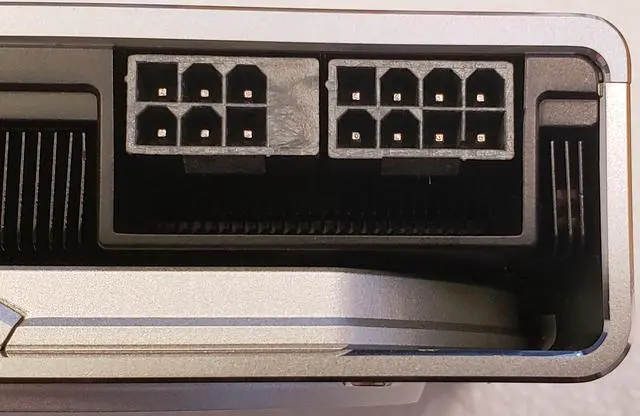

Being a dual-slot card, the NVIDIA GeForce RTX 2070 SUPER draws power from 1x 6-pin + 1x 8-pin power connector, with power draw rated at 215 W maximum.

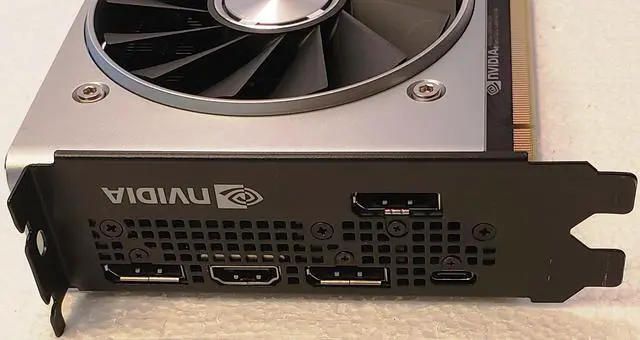

Display outputs include: 1x HDMI, 3x DisplayPort, 1x USB Type-C.
GeForce RTX 2070 SUPER is connected to the rest of the system using a PCI-Express 3.0 x16 interface.
The card's dimensions are 267 mm x 116 mm x 35 mm, and it features a dual-slot cooling solution.
