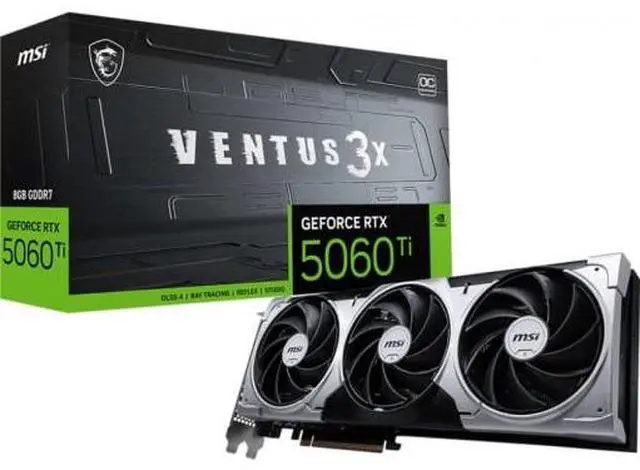

GeForce RTX 5060 Ti 8G VENTUS 3X OC- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
- Extreme Performance: 2617 MHz (MSI Center)
- Boost: 2602 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
- Marketing Name
- Model Name
- Graphics Processing Unit
- Interface
- Core Clocks
- CUDA® CORES
- Memory Speed
- Memory
- Memory Bus
- Output
- HDCP Support
- Power consumption
- Power connectors
- Recommended PSU
- Card Dimension (mm)
- Weight (Card / Package)
- DirectX Version Support
- OpenGL Version Support
- Maximum Displays
- G-SYNC® technology
- Digital Maximum Resolution
GeForce RTX 5060 Ti 8G VENTUS 3X OC
G506T-8V3C
NVIDIA® GeForce RTX 5060 Ti
PCI Express® Gen 5 x16 (uses x8)
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
4608 Units
28 Gbps
8GB GDDR7
128-bit
DisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
Y
180 W
8-pin x 1
600 W
304 x 121 x 44 mm
793 g / 1162 g
12 Ultimate
4.6
4
Y
7680 x 4320
