Model
Brand PNY
Model VCQP5000-PB
Interface
Interface PCI Express 3.0 x16
Chipset
Chipset Manufacturer NVIDIA
GPU Quadro P5000
CUDA Cores 2560
Memory
Memory Size 16GB
Memory Interface 256-bit
Memory Type GDDR5X
3D API
DirectX DirectX 12
OpenGL OpenGL 4.5

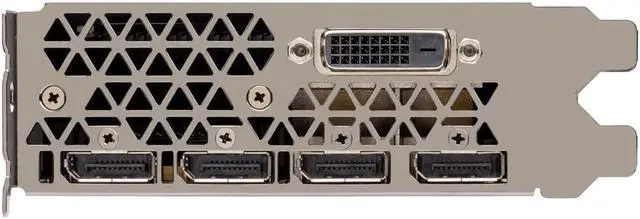

Ports
DisplayPort 4 x DP 1.4
DVI 1 x DL DVI-D
Other Ports Stereo
Details
Analog Resolution 7680 x 4320 @ 30 Hz
Cooler With Fan
Dual-Link DVI Supported Yes
HDCP Ready Yes
System Requirements Max Power Consumption: 180W
Auxiliary Power Connector 8-Pin
Features
Features Four DisplayPort 1.4 Connectors
DisplayPort with Audio
VGA Support
3D Stereo Support with Stereo Connector
NVIDIA GPUDirect Support
Quadro Sync II Compatibility
NVIDIA nView Desktop Management Software Compatibility
HDCP 2.2 Support
NVIDIA Mosaic
Form Factor & Dimensions
Form Factor Full Height
Dimensions (L x H) 10.50" x 4.40"
Packaging
Package Contents NVIDIA Quadro P5000 Professional Graphics Board
Software Installation Disc
Printed Quick Start Guide
8-Pin Auxiliary Power Cable
Stereo Connector Bracket
Two DisplayPort to DVI-D SL Adapters
Form Factor & Dimensions
Slot Width Dual Slot
