NVIDIA Ampere architecture
DLSS artificial intelligence acceleration
Using NVIDIA-approved high-quality components
Follow the original standard circuit design to ensure signal quality
Compliant with NVIDIA's PCB specification
Double ball bearing with a service life of more than 50, 000 hours

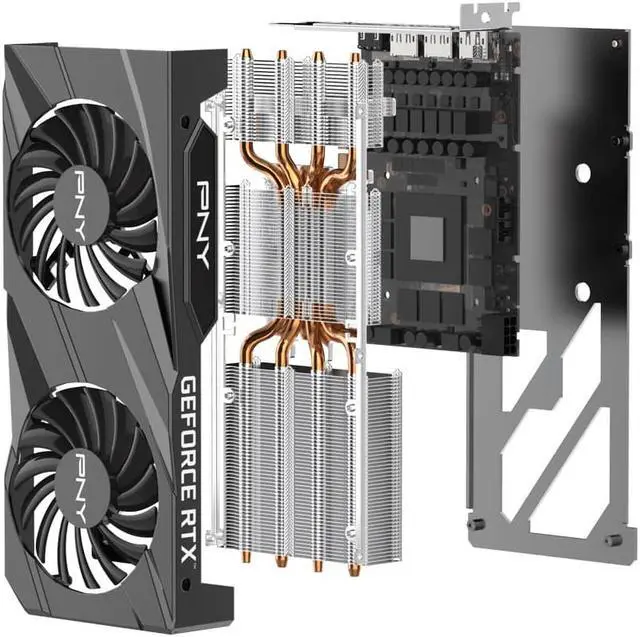

Strengthen the structure to prevent PCB bending.
Fan will stop when GPU is under low load or low power game.
Support GPU and Vram clock adjustment
Support monitor graphics card status
Support to adjust the fan load and customize the configuration file
Detailed specifications
Graphics card size
247 x 118 x 39 mm; 2 slots
Package dimensions
325 x 172 x 90mm
NVIDIA® CUDA Core
3584
base clock
1320MHz
acceleration clock
1777MHz
Memory Speed (Gbps)
15Gbps
memory size
12GB GDDR6
memory interface bandwidth
192-bit
Memory Interface Bandwidth (GB/sec)
360Gbps
Graphics card power (W)
170W
NVLink
Does not support

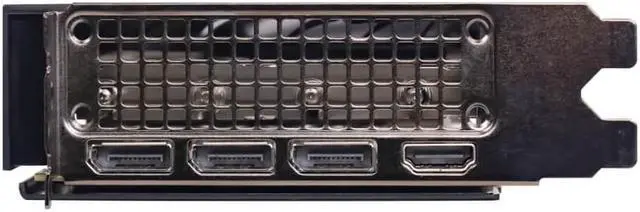

Standard Display Connector
3x DisplayPort 1.4 a, HDMI 2.1
Multi-screen support
4
Highest digital resolution
7680 x 4320 @60Hz (Digital)
power connector
1 set of 8-Pin
Busbar
Specifications
PCI-Express 4.0 × 16
