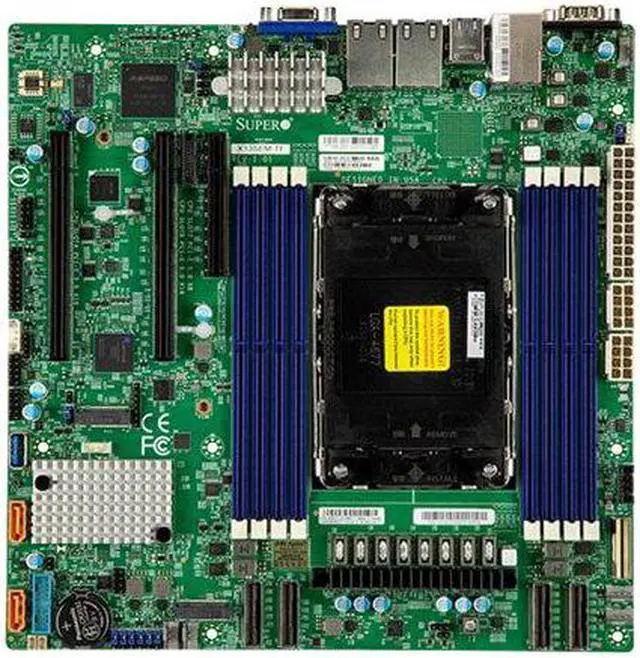

Supermicro MBD-X13SEM-TF-B Motherboard - LGA4677 Socket-E - Intel C741 Chipset - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN
- 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
- Intel C741® Chipset
- Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
- 8 NVMe ports PCIe 5.0 x4 via 4 MCIO connectors
- 1 PCIe 5.0 x8,2 PCIe 5.0 x16,4 PCIe 5.0 x8 MCIO connectorsM.2 Interface: 2 PCIe 4.0 x2M.2 Form Factor: 2280, 22110M.2 Key: M-Key
- Dual LAN with 10GBase-T with Intel® X550
- 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
- Intel® C741 controller for 10 SATA3 (6 Gbps) ports or 2 PCIe 3.0 x4 NVMe + 2 SATA3 ports; RAID (SATA) 0,1,5,10
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Type: Motherboard - micro ATX
Chipset Type: Intel C741
Processor Socket: LGA4677 Socket-E
Max Processors Qty: 1
Compatible Processors: Xeon Scalable (supports 4th Generation Intel Xeon Scalable, supports CPUs with up to 60 cores, Maximum TDP 350 Watt)
Max Size: 2 TB
Technology: DDR5
Bus Clock: 4000 MHz, 4800 MHz, 4400 MHz
Supported RAM Integrity Check: ECC
Registered or Buffered: Registered, 3DS registered
Graphics Controller: ASPEED AST2600
Expansion Slots: 1 x CPU ¦ 8 x DIMM 288-pin (1.1 V) ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x8 ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces: SATA-600 -connectors: 1 x SlimSAS - 8 devices ¦ PCIe 5.0 -connectors: 8 x NVMe ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ SATA-600 -connectors: 2 x SATA DOM
Interfaces: 2 x LAN (10Gigabit Ethernet) ¦ 1 x IPMI ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x VGA ¦ 1 x serial
Internal Interfaces: 4 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPI - header
Power Connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
