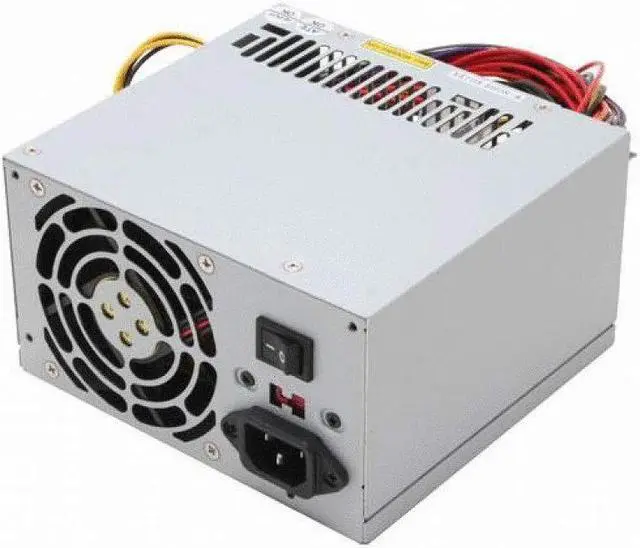

sparkle atx-400pa 400w 20/24pin sata power supply

Specifications Mfr
Part Number: ATX-400PA
Features: Complied with ATX12V 2.0 standard High efficiency and reliability Remote On/Off function Internal 12V DC fan included Noise Killer (Thermal fan speed control function) Low noise and ripple Complies with FCC part 15 subpart J Class B and CISPR 22 Class B Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down Approved by UL 60950, IEC 60950, TUV EN60950, NEMKO (CB Report)
Input: Input
Range: ±10% of 115Vrms/57~63Hz, ±10% of 230Vrms/47~53Hz, manual selection
Input Current: 10A (RMS) @ 115Vrms/60Hz, 5A (RMS) @ 230Vrms/50Hz
Inrush Current: 120A max cold start, 150A warm measured at 115Vrms/60Hz
Output: Total
Output: 400 W + 3.3V and +5V total output not exceed 150W + 3.3V is load on 22A then +5V maximum load is 11.4A; +5V is load on 22A then + 3.3V maximum load is 6A +12V1, +12V2 total output not exceed 348W + 3.3V, +5V, +12V1DC, and +12V2DC total output not exceed 386W
Dielectric Withstand: Input to frame ground 1800V AC for 1 second
Efficiency: 70% minimum measured at nominal AC main voltage and frequency with maximum loads on all outputs
Rise Time: Less than 20ms on all outputs
Hold-up Time: 12ms minimum at nominal input voltage
Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum (
