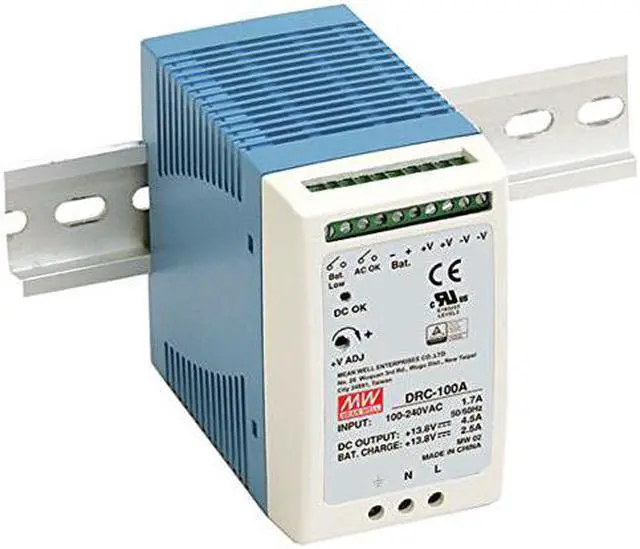

MEAN WELL DRC-100A 100W Single Output Power Supply Battery Charger (DRC-100A)

100 watt single output power supply with battery charger (UPS function) CH 1: 13. 8 Volts 4.5 Amps CH 2: 13. 8 Volts 2.5 Amps drc-100 is a 96 watt AC/DC DIN rail Type security power supply Series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application that security access systems require. Features universal
AC input/full range protections: short circuit, overload, over voltage battery low protection/battery reverse polarity protection by fuse can be installed on DIN rail ts-35/ 7.5 or 15 alarm signal for AC OK and battery low (via relay) cooling by free air convection LED indicator for power on 100 percent full load burn-in Test 3 year warranty applications security systems emergency lighting systems alarm systems DC UPS system central monitoring system access systems detailed specifications: primary
output voltage (VDC): 13.8
output current (a): 7
maximum output power (W): 96.6
family: drc-100
additional output voltages (VDC): 13.8
input voltage (VAC): 90
to 264 input frequency: 47 to 63 maximum input current (a): 1.8 output connector
Type: screw
terminal efficiency ( percent ): 87
operating temperature-min (CEL): -30
operating temperature-max (CEL): 70
Length (inch): 2.17
width (inch): 3.54
height (inch): 3.94
agency approvals: UL/cul/TUV/CB/CE
color: white
style: DIN.
