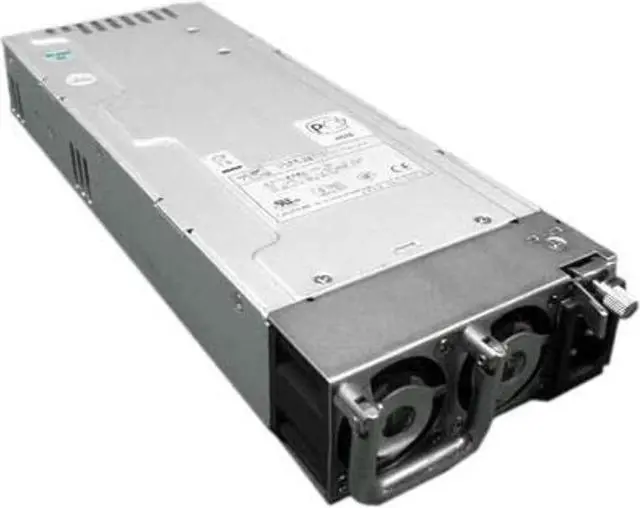

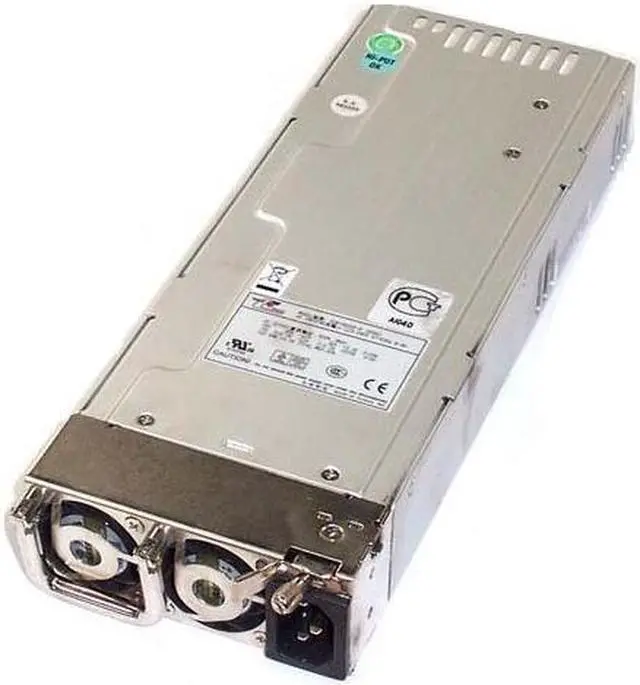

emacs r2w-6500p-r 500w power supply b010840002
- Emacs Server Redundant Power Supply
- Model: R2W-6500P-R
- Max Output: 500W
- P/N: 2010840002
- AC Input: 115-240V, 47-63Hz, 8-4A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Active PFC (full range), meet IEC-1000-3-2 CLASS D 12V Max.
Current: 32A
Temperature range: operating 0C ~ 40C, storage 0C-60C
Humidity:
operating: 20%-95%, non-operating: 10%-95%
Remarks: 85% is normal condition and 95% is with special coating process
Dual EMI noise inlet filter: FCC CLASS B, CISPR22
CLASS B Safety: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950 Hot-swappable/ hot-pluggable redundancy function Use 48-pins industrial connectors
Cooling: two 38x38x28 mm DC FANS AC Inlet in each module
Serial ATA optional Dimensions: 300.00 x 101.00 x 84.00 (mm) / 11.81 x 3.98 x 3.31 (inch)
Current: 32A
Temperature range: operating 0C ~ 40C, storage 0C-60C
Humidity:
operating: 20%-95%, non-operating: 10%-95%
Remarks: 85% is normal condition and 95% is with special coating process
Dual EMI noise inlet filter: FCC CLASS B, CISPR22
CLASS B Safety: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950 Hot-swappable/ hot-pluggable redundancy function Use 48-pins industrial connectors
Cooling: two 38x38x28 mm DC FANS AC Inlet in each module
Serial ATA optional Dimensions: 300.00 x 101.00 x 84.00 (mm) / 11.81 x 3.98 x 3.31 (inch)
