Altronix 8 Fused Outputs Power Supply/Access Power Controller. 12/24VDC @ 6A.

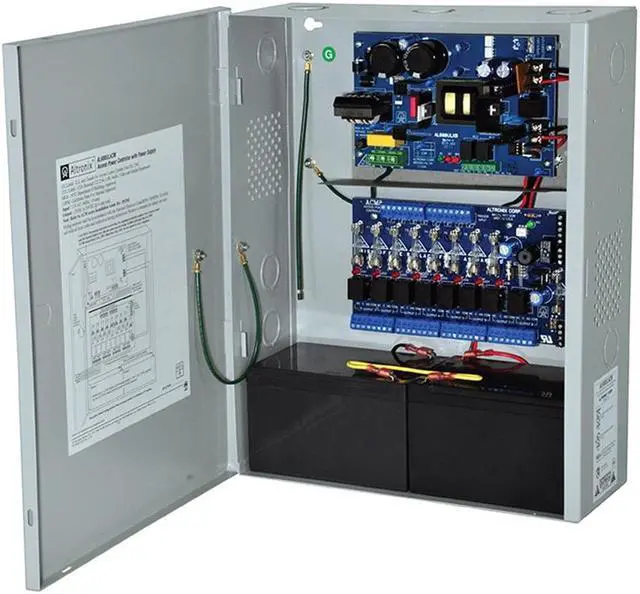

AL600ACM220 converts a nominal 220VAC 50/60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Features

* Product Type: Proprietary Power Supply
* Input Voltage: 220 V AC
* Output Voltage: 12 V DC
* Output Voltage: 24 V DC
* Product Type: Proprietary Power Supply
* Input Voltage: 220 V AC
* Limited Warranty: Lifetime
* Output Voltage: 12 V DC @ 6 A
* Output Voltage: 24 V DC @ 6 A
* Weight (Approximate): 18.05 lb
* Form Factor: Wall Mount
* Form Factor: Wall Mount
* Product Model: AL600ACM220
* Product Name: 8 Fused Outputs Power Supply/Access Power Controller. 12/24VDC @ 6A.
* Brand Name: Altronix
* Brand Name: Altronix
* Height: 15.5"
* Width: 12.3"
* Depth: 4.5"
* Environmentally Friendly: Yes
* Environmental Certification: RoHS
* Product Type: Proprietary Power Supply
* Input Voltage: 220 V AC
* Output Voltage: 24 V DC
* Output Voltage: 12 V DC
* Form Factor: Wall Mount
* Brand Name: Altronix
