| Type | ATX 12V v2.31 |
|---|
| Maximum Power | 750 W |
|---|

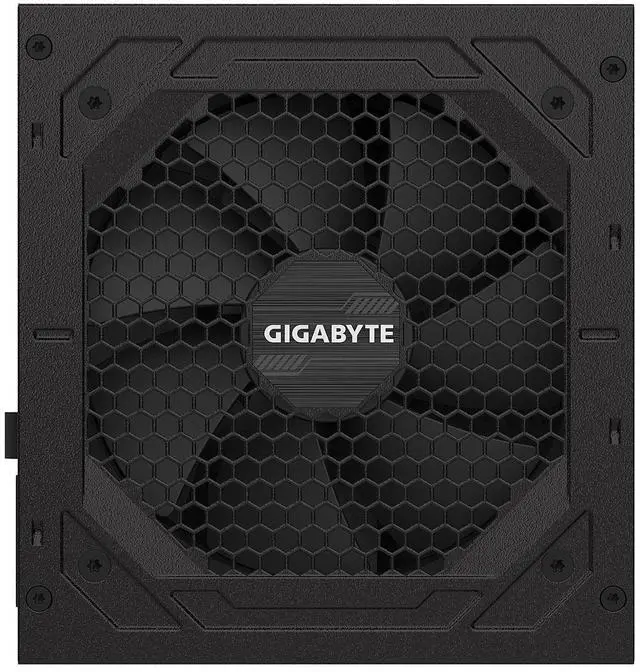

| Fans | 120mm Hydraulic Bearing (HYB)Fan |
|---|
| PFC | Active |
|---|
| Main Connector | 20+4Pin |
|---|
| PCI-Express Connector | 4 x 6+2-Pin |
|---|
| SATA Power Connector | 8 |
|---|
| Max PSU Length | 140 mm |
|---|
| Modular | Full Modular |
|---|
| Power Good Signal | 100-500ms |
|---|
| Hold-up Time | 16ms min. |
|---|
| Efficiency | 90% at typical load |
|---|
| Energy-Efficient | 80 PLUS GOLD Certified |
|---|
| Over Voltage Protection | Yes |
|---|
| Protection | OVP / OPP / SCP / UVP / OCP / OTP |
|---|
| Input Voltage | 100 - 240 V |
|---|
| Input Frequency Range | 50/60 Hz |
|---|
| Input Current | 12 - 6 A |
|---|

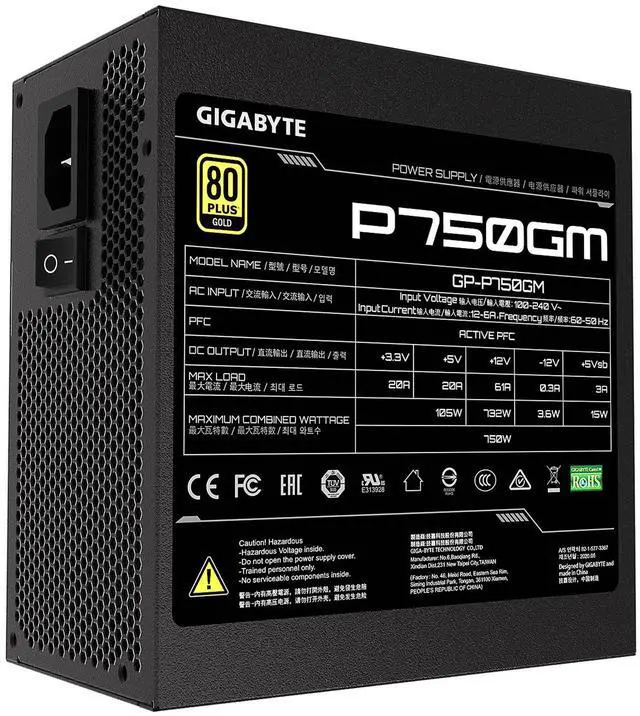

| Output | +3.3V@20A, +5V@20A, +12V@61A, [email protected], +5VSB@3A |
|---|
| MTBF | >100,000 Hours |
|---|
| Approvals | BSMI / CE / CCC / FCC / TUV / RCM / CB / EAC / KCC / UL |
|---|

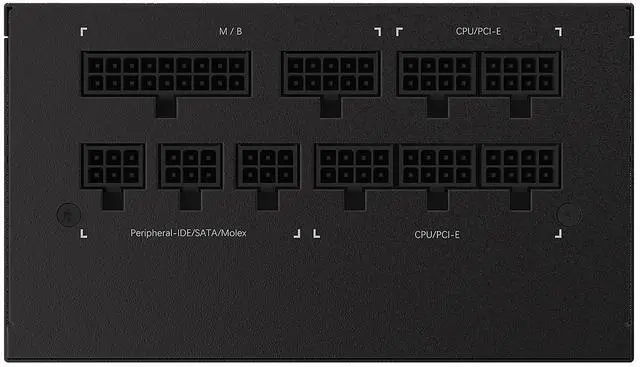

| Connectors | 1 x ATX/MB 20+4 Pin 2 x EPS/ATX 12V 4+4pin 4 x PCI-e 6+2 pin 8 x SATA 5 pin 3 x Peripheral 4-pin 1 x Floppy 4-pin |
|---|
