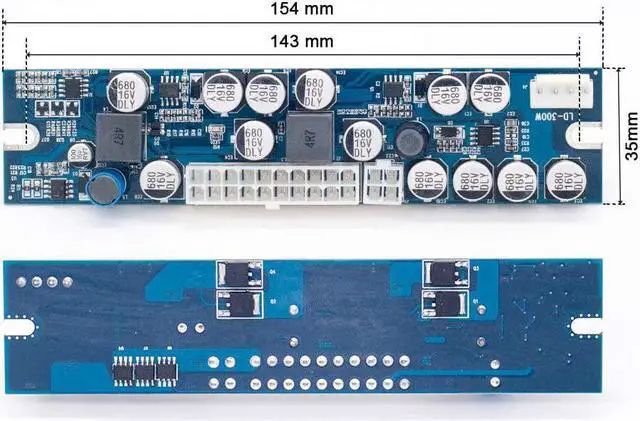

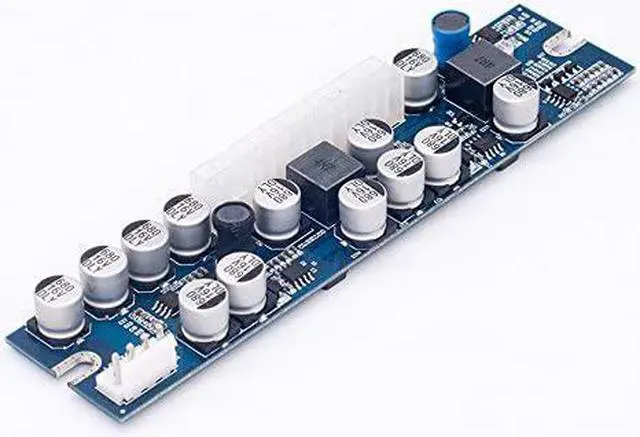

RGEEK 1106 DC to DC ATX PSU 12V 300W Pico ATX Switch PSU 24pin Mini ITX PC Power Supply for Computer
- Input voltage range: 11.2 to 12.6V DC, DC input connector: 2.5mm inner diameters, 5.5mm outer diameter
- output shutdown when output current reaches the peak point
- Short-circuit protection: output shut down when short-circuit
- Defensive function (for +3.3V, +12V, +5.00V and +5.00V SB power output
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Before you buy this board, please make sure your input Voltage INPUT VOLTAGE RANGE: 11.4VDC12.6VDC
Rating Power: 300W

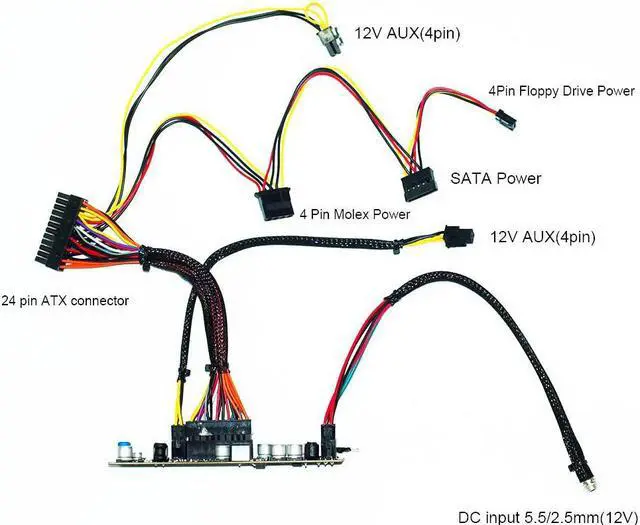

The 20+4pin cable and the dc cable are included.
INPUT REQUIRED
:
INPUT VOLTAGE RANGE: 11.4VDC12.8VDC
INCOMING CURRENT RANGE : 20.0A Max - 11.4VDC
INPUT SURGING CURRENT: 25.0Vmax - 12VDC
WORK EFFICIENCY: 85%
Environment description:
Working temperature/humidity 15 degree to 35 degree / 45%-75%
Reposition temperature//humidity -40 degree to +70 degree/ 10%-90%
Atmospheric pressure 86Kpa106Kp
Other parameters:
Working frequency: Icbuilt-in oscillator ( 250-350 )
kHz@Vcc=12V
Before you buy this board, please make sure your input Voltage INPUT VOLTAGE RANGE: 11.4VDC12.6VDC
Rating Power: 300W
The 20+4pin cable and the dc cable are included.
INPUT REQUIRED
:
INPUT VOLTAGE RANGE: 11.4VDC12.8VDC
INCOMING CURRENT RANGE : 20.0A Max - 11.4VDC
INPUT SURGING CURRENT: 25.0Vmax - 12VDC
WORK EFFICIENCY: 85%
Environment description:
Working temperature/humidity 15 degree to 35 degree / 45%-75%
Reposition temperature//humidity -40 degree to +70 degree/ 10%-90%
Atmospheric pressure 86Kpa106Kp
Other parameters:
Working frequency: Icbuilt-in oscillator ( 250-350 )
kHz@Vcc=12V
