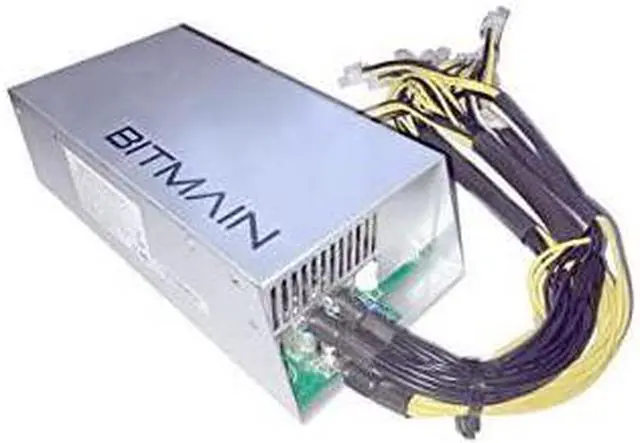

AntMiner APW3++ PSU Power Supply S9 L3 Bitcoin Miner Miners Mining

?Import duties, taxes and charges are buyers responsibility, not included in item price or postage charge.
?Do not accept any return & refund of items with no quality problem but just because you change your mind and no longer want it.
?Must be contacted within 48 hours of items received if device isn't working properly.

Note:
1.The?power cord is not included, please find one with at least 10A from your local market.
2. The APW3++ can deliver a maximum?power of only 1200W?if it is connected to a 110V mains power supply. To obtain the rated power of 1600W, the APW3++?must be connected to a 220-240V mains power supply. Please check the mains power supply that is the standard in your region before ordering.
3. This batch of PSU comes with only 10 PCIe connectors so cannot be used with more than one Antminer L3+ miner.

Specifications:
Output
DC?Voltage: 12.15V
Rated?Current (220V input): 133A
Rated?Current (110V input): 100A
Rated?Power(220V input): 1600W
Rated?Power(110V input): 1200W

Ripple?&?Noise: <1%
Voltage?Regulation: <2%
Source?Regulation: <1%
Load?Regulation: <1%
Setup,?Rise?Time: <2S
Power?off?Protection?Trip?Time: >9mS
Interface?Type: 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)

Input
Voltage?Range: 100-240V?AC
Starting?Voltage: 95-105V?AC
Frequency?Range: 47-63Hz
Power?Factor: >0.95?(full?load)
Leakage?Current: <1.5mA?(220V?50Hz)

Protection
Low-voltage?Input: 80-89V AC
Output?Short?Circuit: Yes
Output?Overcurrent: 134-185A max.
Overheat?Protection: Yes

Environment?Conditions
Operating?Temperature: -20-50?oC?
Operating?Humidity: 20%?-?90%?relative?humidity?(non-condensing)

Structure
Dimensions: 220mm*108mm*62mm

Cooling
Fan: Forced-air cooling
