XINCOL AC-DC SMPS AC110V/220V to DC12V 42A 500W Switched Mode Switching Power Supply (SMPS) Transformer Driver Adapter for LED Strip Light
- Switch power supply, convert AC 110V/220V to DC 12V 42A 500W
- Dual input voltage: AC 110V/220V.Wide voltage input adjusted automatically to SMPS Model (12V 1A-5A, 12W-60W). As for Model (12V 10A-60A 120W-600W), there is a voltage selector switch located on the side of the switcher is used to set the input voltage to the power supply to either 110V/115V or 220V/230V. We have already adjusted the switcher to 110V/115V for our US customers, if you want to use AC220V,don't forget to adjust the switch to the 220V side before use.
- Smart device surge protection for Short-circuit Protection, Overload Protection, Over Voltage Protection,Over Temperature Protection. High efficiency, High Reliability, Low Temperature Rise
- Built-in EMI filter, low output ripple, noise, Rugged heavy duty enclosure, 100% Full load burn-in Tested. Parallel/Redundancy Operation is possible.
- Widely being used in Industrial automation, LED display, electronic equipments, communications etc.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
XINCOL Switched Mode Power Supplies(SMPS) X Series are being designed with unique current mode PWM technology to obtain precise regulated output voltage at rated power, widely used in LED lighting, Home Appliance, Instrumentation,CCTV, Office Automation and Engineering Industries etc.
Technical Details:
Model: XC-500-12
Safety Appliance: FCC/CE/RoHS
Protection: Short circuit, Overload, Over Voltage, Over Temperature Protection
Input: AC110V/220V
Output: DC12V 42A
Output Power: 500W
Number of Output: +V x 3, -V x 3
Frequency: 50/60Hz
Working temperature:0~40
Storage Temperature: -20~60
Ambient Humidity: 0~95% Non-Condensation
Shell Material: Aluminum base Silver Tone

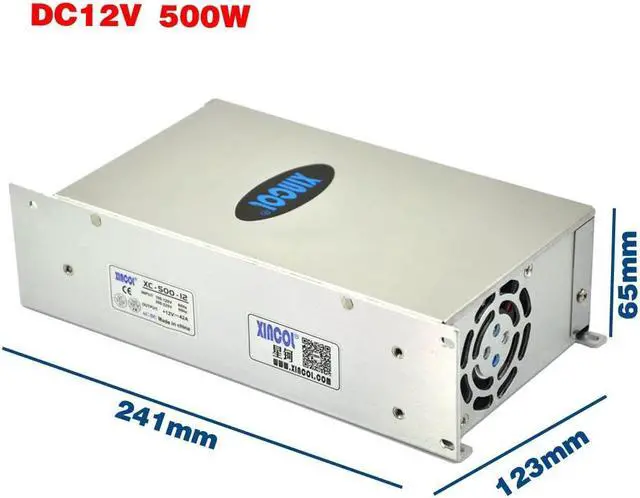

Size: 9.49 inchx4.84 inchx2.56 inch/241mmx123mmx65mm
Net Weight:1100g

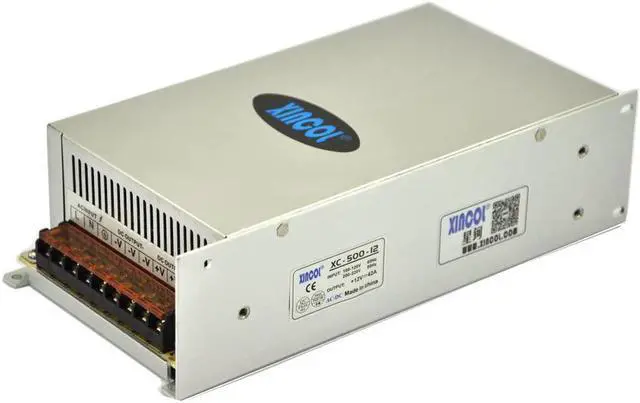

Connection:
L, N: AC power input
COM: DC power output
V: DC power output +
+V / ADJ: Adjust the output voltage (13%)
Package Contents: 1 x XINCOL LED Switching Power Supply 42A 500W
Note:
1. In USA, the voltage switch of the power supply should be set to 110/115. Setting the power supply voltage switch to the incorrect input voltage may damage the power supply
2.The unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads
3.DO NOT let the unit work long hours over rated current! Work under 80% of rated currency
4.Dust the switcher out every 2 or 3 months if necessary
5.Even with EMI/RFI filter built inside, still not suitable for a hamradio operator connecting with radio or wireless communication equipments.
6. Do not power the unit before wire connection and voltage adjustment
7. IN-DOOR USE ONLY! This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
Technical Details:
Model: XC-500-12
Safety Appliance: FCC/CE/RoHS
Protection: Short circuit, Overload, Over Voltage, Over Temperature Protection
Input: AC110V/220V
Output: DC12V 42A
Output Power: 500W
Number of Output: +V x 3, -V x 3
Frequency: 50/60Hz
Working temperature:0~40
Storage Temperature: -20~60
Ambient Humidity: 0~95% Non-Condensation
Shell Material: Aluminum base Silver Tone
Size: 9.49 inchx4.84 inchx2.56 inch/241mmx123mmx65mm
Net Weight:1100g
Connection:
L, N: AC power input
COM: DC power output
V: DC power output +
+V / ADJ: Adjust the output voltage (13%)
Package Contents: 1 x XINCOL LED Switching Power Supply 42A 500W
Note:
1. In USA, the voltage switch of the power supply should be set to 110/115. Setting the power supply voltage switch to the incorrect input voltage may damage the power supply
2.The unit can work long hours at this current and good cooling environment. The actual output current depends on circuit loads
3.DO NOT let the unit work long hours over rated current! Work under 80% of rated currency
4.Dust the switcher out every 2 or 3 months if necessary
5.Even with EMI/RFI filter built inside, still not suitable for a hamradio operator connecting with radio or wireless communication equipments.
6. Do not power the unit before wire connection and voltage adjustment
7. IN-DOOR USE ONLY! This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
