TOTIWO AC to DC 1200W Power Supply, Switching Converter 12V /24V/36V/48V 1200W for CCTV, Computer Project, 3D Printer, LED Strip Light (12v 100a 1200w, 100-120VAC/silver)

Parameter:
Input: AC 200-240V or 100-120VAC 50-60Hz
Output Voltage : DC 12V/24V/ 36V/ 48V
Output Current: 0~100A/ 0~50A/0~33A /0~25A
Output Wattage: 1200W
Input Efficiency:>0.85

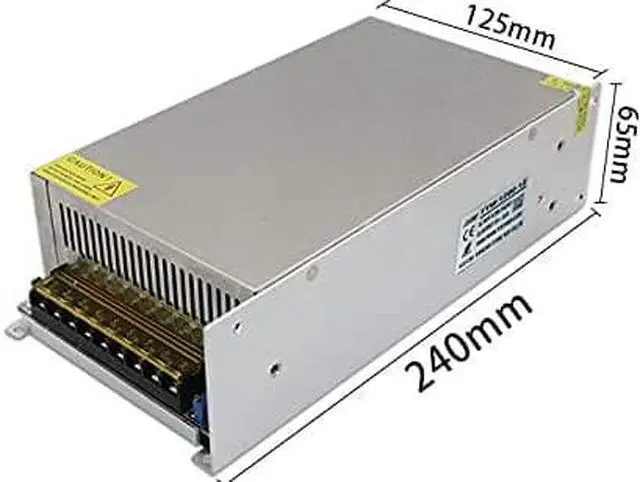

Size: 240x125x65mm
Safety Compliance: CE / RoHS
Shell Material: Aluminum case ,5 years warranty
Protections: short circuit, over load, over voltage
High efficiency, long life, high reliability
100% full load burn-in test
Working Temp. & humidity: "-20°C~+60°C, 20%~90%RH
Storage Temp. & humidity:"-40°C~+85°C, 10%~95%RH
Overload:Above 110%-150% of rated power,Shut-down output voltage, auto recovery after fault condition is removed.
Connection instruction:
L: Live wire
N: Negative wire
+V: DC power output \u201c+\u201d
-V: DC power output \u201c-\u201c
+V ADJ: Adjust the output voltage (±2v)
Kindly note:
1,High Voltage inside, do not remove the cover.
2,It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
3,The above mentioned data were measured at 230VAC input and 25°C.
4,Dis-connect the AC input before checking any mal-phenomenons.
5, Make sure the INPUT&OUPUT were in right situation before connected to power supply.
6, Datasheet for reference only.
Package included:
1 x 1200W Switch Power Supply
