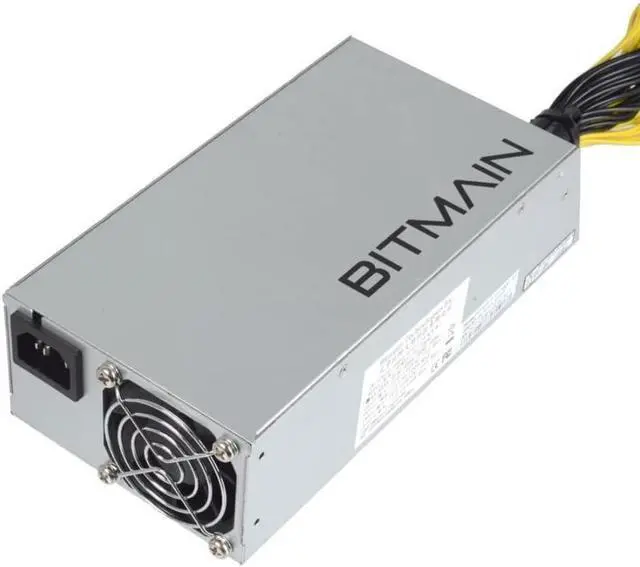

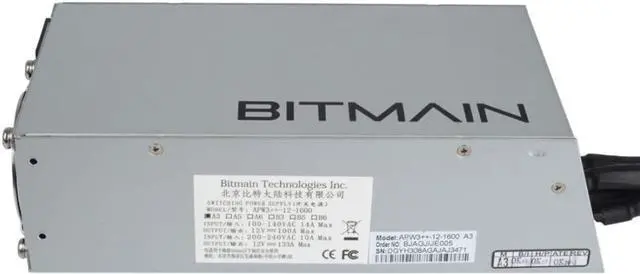

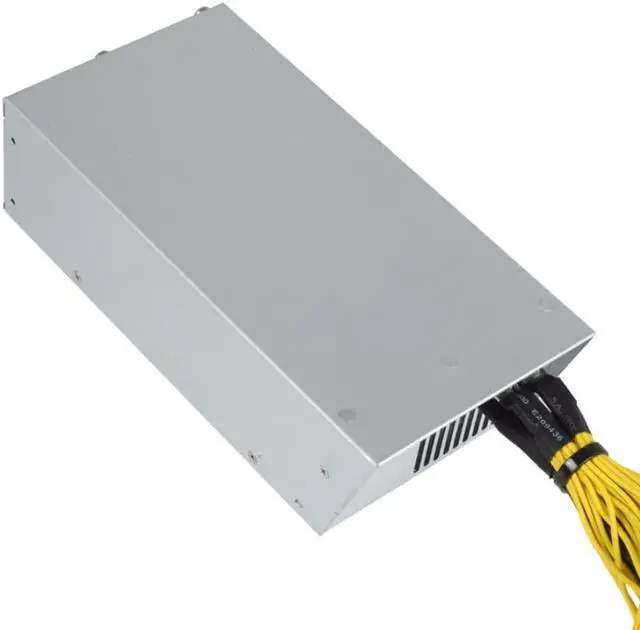

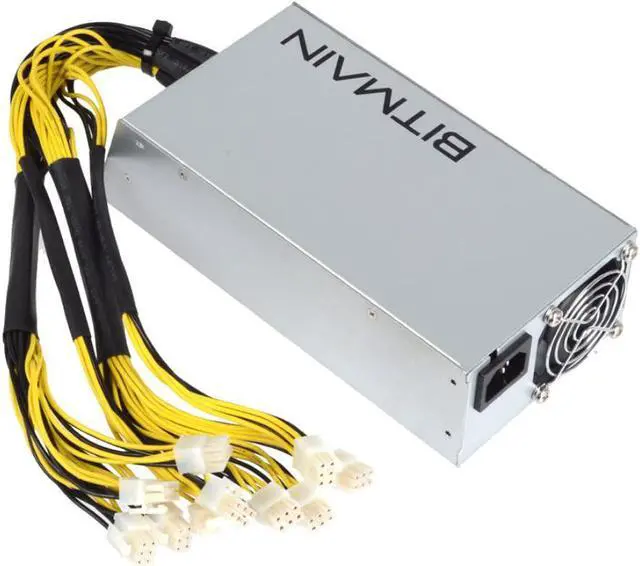

Adoner Bitmain APW3++ Power Supply PSU 12V 1200-1600W A3 PCI L3+ D3 S7 S9 110-220V NEW
- - Low-voltage Input80-89V AC
- - CoolingForced-air cooling
- - Operating Temperature-20°C - 50°C
- - Dimensions220mm*108mm*62mm
- Fulfilled by Local inventory ,stock available!Fast Shipping! It will be arrived in 3-5 day!
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Output:
- DC Voltage: 12.15V
- Rated Current(220V input): 133A
- Rated Current(110V input): 100A
- Rated Power(220V input): 1600W
- Rated Power(110V input): 1200W
- Ripple & Noise: <1%
- Voltage Regulation: <2%
- Source Regulation: <1%
- Load Regulation: <1%
- Setup, Rise Time: <2S
- Power off Protection Trip Time:>9mS

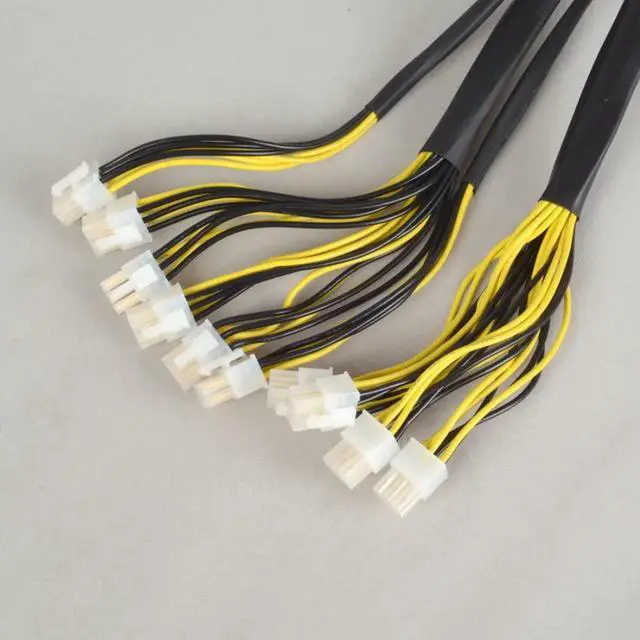

- Interface Type: 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
- Noise Level: <43DB
Input:
- Voltage Range:100-240V AC
- Starting Voltage: 95-105V AC
- Frequency Range: 47-63Hz
- Power Factor: >0.95 (full load)
- Leakage Current: <1.5mA (220V 50Hz)
Protection:
- Low-voltage Input80-89V AC
- Output Short CircuitYes
- Output Overcurrent134-185A max.
- Overheat ProtectionYes
- Operating Temperature-20°C - 50°C
- Operating Humidity20% - 90% relative humidity (non-condensing)
- Dimensions220mm*108mm*62mm
- CoolingForced-air cooling
Package Included:
- 1 x New Original Antminer Bitmain 1600W Power Supply
Output:
- DC Voltage: 12.15V
- Rated Current(220V input): 133A
- Rated Current(110V input): 100A
- Rated Power(220V input): 1600W
- Rated Power(110V input): 1200W
- Ripple & Noise: <1%
- Voltage Regulation: <2%
- Source Regulation: <1%
- Load Regulation: <1%
- Setup, Rise Time: <2S
- Power off Protection Trip Time:>9mS
- Interface Type: 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
- Noise Level: <43DB
Input:
- Voltage Range:100-240V AC
- Starting Voltage: 95-105V AC
- Frequency Range: 47-63Hz
- Power Factor: >0.95 (full load)
- Leakage Current: <1.5mA (220V 50Hz)
Protection:
- Low-voltage Input80-89V AC
- Output Short CircuitYes
- Output Overcurrent134-185A max.
- Overheat ProtectionYes
- Operating Temperature-20°C - 50°C
- Operating Humidity20% - 90% relative humidity (non-condensing)
- Dimensions220mm*108mm*62mm
- CoolingForced-air cooling
Package Included:
- 1 x New Original Antminer Bitmain 1600W Power Supply
