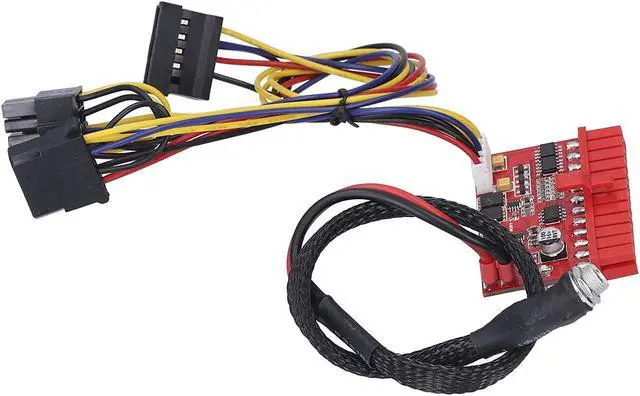

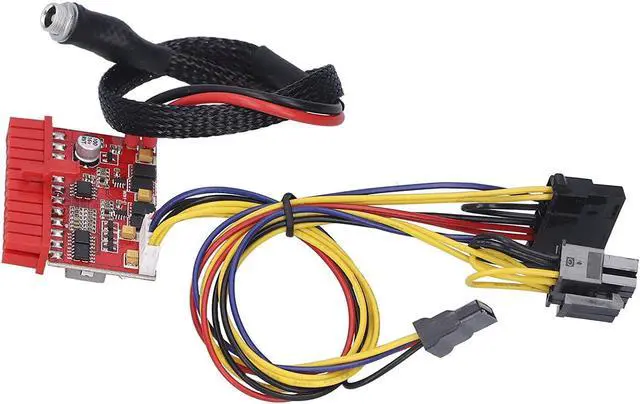

Power Module,LD?A160WL 12V/160W DC?ATX Power Adapter Board HTPC ITX for Desktop Computer
Limited time offer, ends 07/19 By dazella store
- Eliminates 24 unnecessary wires by plugging directly into the motherboard ATX connector.
- Suitable for small ATX boards and saving space in the case without affecting power requirements.
- Overcurrent protection, when the output current reaches maximum current, the output will off.
- Short circuit protection, when a short circuit occurs, the output will also off.
- High performance and high heat resistance ensure more reliable and smoothly use.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Condition: 100% Brand New
Item Type: Power Adapter Board
Material: PCB
Model: LD-A160WL
Power: 160W
Input Voltage: 12V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/8A, -12VDC/0.15A
Operating Frequency: IC built-in oscillator (250-350) kHz@Vcc-12V
Feedback reference voltage: 0.8V±2%@12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x for SATA, 1 x IDE, 1 x DC5525
Cable Length:
DC cable about 320mm / 12.6in
CPU cable 4+4Pin about 25mm / 0.98in
IDE cable about 225mm / 8.86in
For SATA cable about 160mm / 6.3in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the maximum current, the output will off
Short circuit protection: when the output is short circuited, the output will off
Working Temperature/Humidity: -5 ~ 55/45%~75%
Storage Temperature/Humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
Condition: 100% Brand New
Item Type: Power Adapter Board
Material: PCB
Model: LD-A160WL
Power: 160W
Input Voltage: 12V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/8A, -12VDC/0.15A
Operating Frequency: IC built-in oscillator (250-350) kHz@Vcc-12V
Feedback reference voltage: 0.8V±2%@12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x for SATA, 1 x IDE, 1 x DC5525
Cable Length:
DC cable about 320mm / 12.6in
CPU cable 4+4Pin about 25mm / 0.98in
IDE cable about 225mm / 8.86in
For SATA cable about 160mm / 6.3in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the maximum current, the output will off
Short circuit protection: when the output is short circuited, the output will off
Working Temperature/Humidity: -5 ~ 55/45%~75%
Storage Temperature/Humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
