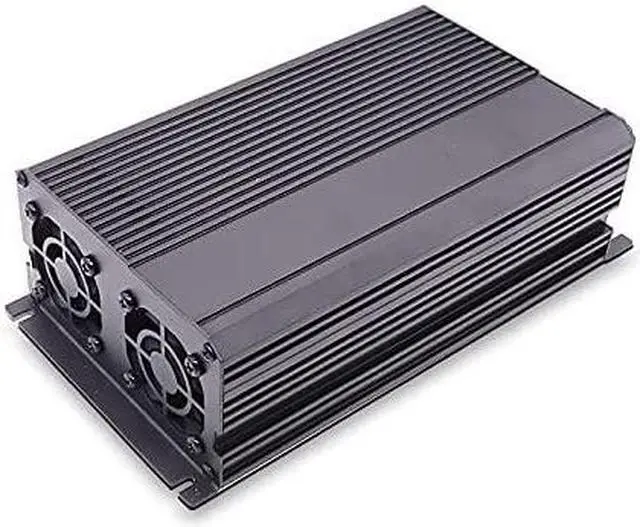

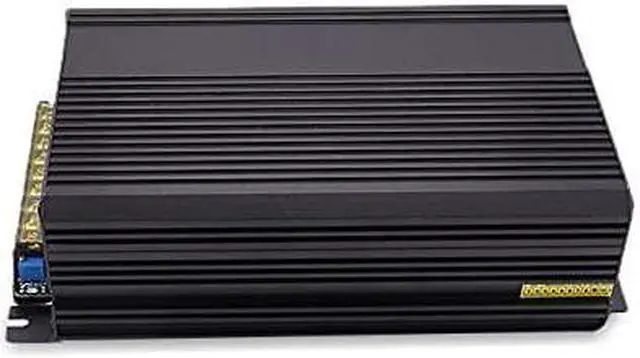

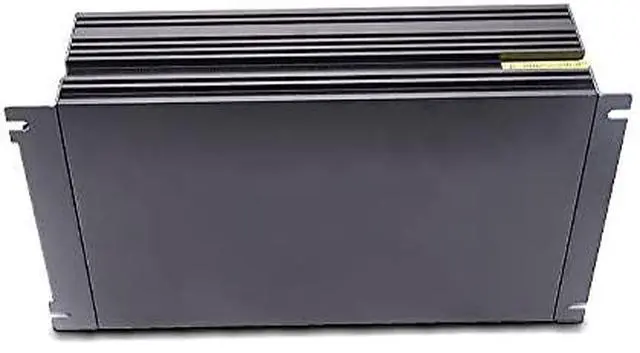

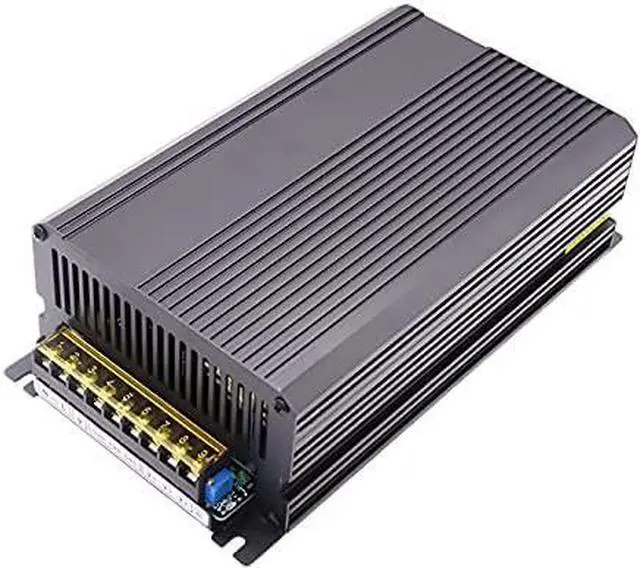

TOTIWO Switching Power Supply DC12V 24V 36V 48V 1500W Transformer (24V 62A 1500W, 100-120VAC)
- ??LED Switch power supply, convert AC 110V or 220V to DC 12V 24V 36V 48V 1500W.
- ??Regulated Converter Input voltage: AC 110v or 220v, choose the proper voltage before use.
- ??AC/DC Power Supply Adapter Protection: Shortage Protection, Overload ProtectionOver-voltage Protection.
- ??Transformer Adapter Weight:1850g; Size: 240 X 125 X 65mm(L*W*H).
- ??Welcome to the TOTIWO store. customer satisfaction is our top priority. If you have any questions, please feel free to contact us and we will reply within 24 hours.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter:
Input: AC 200-240V or 100-120VAC 50-60Hz
Output Voltage : DC 12V/24V/ 36V/ 48V
Output Current: 0~125A/ 0~62.5A/0~41.66A/0~31.25A
Output Wattage: 1500W
Input Efficiency:>0.85
Size: 240x125x75mm
Safety Compliance: CE / RoHS
Shell Material: 5 years warranty
Protections: short circuit, over load, over voltage
High efficiency, long life, high reliability
100% full load burn-in test
Working Temp. & humidity: "-20°C~+60°C, 20%~90%RH
Storage Temp. & humidity:"-40°C~+85°C, 10%~95%RH
Overload:Above 110%-150% of rated power,Shut-down output voltage, auto recovery after fault condition is removed.
Connection instruction:
L: Live wire
N: Negative wire
+V: DC power output \u201c+\u201d
-V: DC power output \u201c-\u201c
+V ADJ: Adjust the output voltage (±2v)
Kindly note:
1,High Voltage inside, do not remove the cover.
2,It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
3,The above mentioned data were measured at 230VAC input and 25°C.
4,Dis-connect the AC input before checking any mal-phenomenons.
5, Make sure the INPUT&OUPUT were in right situation before connected to power supply.
6, Datasheet for reference only.
Package included:
1 x 1500W Switch Power Supply
Input: AC 200-240V or 100-120VAC 50-60Hz
Output Voltage : DC 12V/24V/ 36V/ 48V
Output Current: 0~125A/ 0~62.5A/0~41.66A/0~31.25A
Output Wattage: 1500W
Input Efficiency:>0.85
Size: 240x125x75mm
Safety Compliance: CE / RoHS
Shell Material: 5 years warranty
Protections: short circuit, over load, over voltage
High efficiency, long life, high reliability
100% full load burn-in test
Working Temp. & humidity: "-20°C~+60°C, 20%~90%RH
Storage Temp. & humidity:"-40°C~+85°C, 10%~95%RH
Overload:Above 110%-150% of rated power,Shut-down output voltage, auto recovery after fault condition is removed.
Connection instruction:
L: Live wire
N: Negative wire
+V: DC power output \u201c+\u201d
-V: DC power output \u201c-\u201c
+V ADJ: Adjust the output voltage (±2v)
Kindly note:
1,High Voltage inside, do not remove the cover.
2,It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
3,The above mentioned data were measured at 230VAC input and 25°C.
4,Dis-connect the AC input before checking any mal-phenomenons.
5, Make sure the INPUT&OUPUT were in right situation before connected to power supply.
6, Datasheet for reference only.
Package included:
1 x 1500W Switch Power Supply
