01 02 015 Switching Power, in Rail Switching Power Supply Exquisite Workmanship Short Circuit Protection Aluminum Alloy Material Overload Protection for Industrial PLC

Feature:
1. Global universal full range AC input voltage 100?240VAC for power supply with stable performance

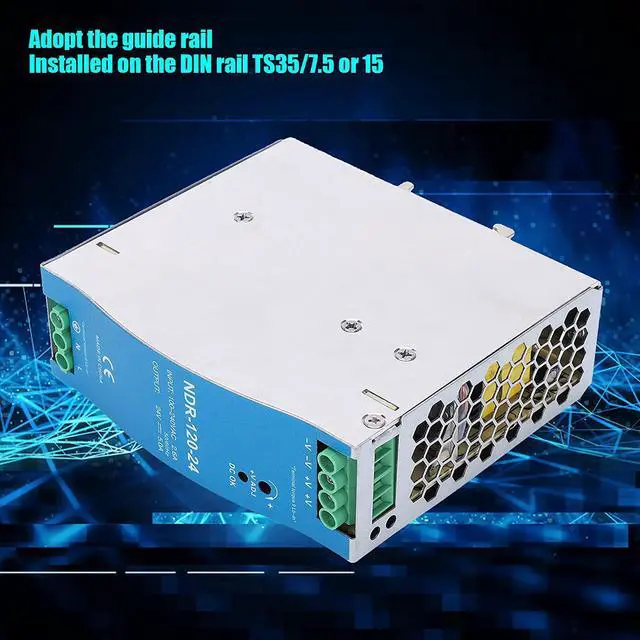

2. Using the din rail mode, installed on the DIN rail TS35/7.5 or 15, the installation is simple and convenient
3. With short circuit protection/overload protection/overvoltage protection/overheat protection function
4. High quality aluminum alloy material can make sure the durability and stability of the product
5. Great workmanship and standard design, good part for industrial operation, simple to operate


Specification:
Item Type: Switching Power
Material: Aluminum alloy
Model: NDR-120-24
DC Output Range: 24V, 5A
Output Voltage Accuracy: ±1%
Ripple and Noise: 120mV
Efficiency: 88%
Input Voltage: 100-240VAC
Voltage Adjustment Range: 12V: 1214V, 24V: 2428V, 48V: 4855V
Overload Protection: Constant current limit when the rated output power reaches 105%130%, and it will automatically recover after the load is normal
Over-Voltage Protection: Output Voltage 12V: 1417V, 24V: 2933V, 48V: 5665V when shut down, restart and restore
Overheating Protection: Overheating shutdown, automatic recovery after the temperature drops
Start-up and Hold Time: 1200ms, 60ms at 230VAC full load, 2000ms, 60ms, 12ms at 60ms/115VAC full load
Insulation Characteristics: Between Input and Output: 3KVac, Between Input and Shell: 2KVac, Between Output and Shell: 0.5KVac, 1 minute
Working Temperature: -20+70 (see output derating curve)
Vibration Resistance: 10500Hz, 2G 10 minutes/cycle, XYZ each 60 minutes; installation conforms to IEC60068-2-6
Safety Certification: Pass UL508, TUV EN60950-1 certification
Electromagnetic Compatibility Standards: Emission: EN55022 (CISPR22), EN61204-3, Class B, Harmoni
