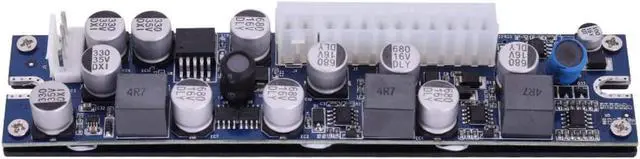

Gaeirt 19V DC Input Pin Power Module, DC 19V Short Circuit Protection Overvoltage Protection DC-ATX Power Supply for Computer for 24pin ATX to 12V AUX
- QUIET DESIGNThe power module adopts a fanless design and is 100% silent, which will not disturb your life.
- SCOPE OF APPLICATIONATX switching power supply is a perfect DC PSU for mini ITX motherboards.
- SHORT CIRCUIT PROTECTIONWhen the output is short-circuited, the input pin power module output is turned off.
- HIGH QUALITYThe ATX switching power supply has a high quality polymer caps on the PCBA, Long life.
- OVERVOLTAGE PROTECTIONWhen the output voltage reaches 1.5 times the rated voltage, the ATX switching power supply output is turned off.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Fanless design, solid Polymer Caps on the PCBA, long life. Perfect DC PSU for Motherboards, high performance with high heat-mode feature, more reliable. Adopt industrial solid capacitor, ideal for being used in rough environment.
Features:
1. Fanless design, 100% silent.
2. High Quality Polymer Caps on the PCBA, Long life.
3. Perfect DC PSU for mini ITX Motherboards.
4. Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
5. Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Specifications:
Condition: 100% Brand New
Module Size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 in
Input Characteristics:
Input Voltage Range: 16VDC - 24VDC
Input Current Range: 12.0A Max @19VDC
Input Surge Current: 12.0AMax @19VDC
Work Efficiency: 85% or more
Output Requirement: Output (Vin=19VDC)
Item Output Voltage
Output Current
Minimum(V) Typical Value(V) Maximum(V) Ripple wave(mV) Standby current Typical value Peak value +3.30V
+3.14 +3.30 +3.47 50 0 8.0 10.0 +5.00VSB
+4.75 +5.00 +5.25 50 0.1 2 2.5 +5.00V
+4.75 +5.00 +5.25 50 0 6.0
Fanless design, solid Polymer Caps on the PCBA, long life. Perfect DC PSU for Motherboards, high performance with high heat-mode feature, more reliable. Adopt industrial solid capacitor, ideal for being used in rough environment.
Features:
1. Fanless design, 100% silent.
2. High Quality Polymer Caps on the PCBA, Long life.
3. Perfect DC PSU for mini ITX Motherboards.
4. Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
5. Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Specifications:
Condition: 100% Brand New
Module Size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 in
Input Characteristics:
Input Voltage Range: 16VDC - 24VDC
Input Current Range: 12.0A Max @19VDC
Input Surge Current: 12.0AMax @19VDC
Work Efficiency: 85% or more
Output Requirement: Output (Vin=19VDC)
Item Output Voltage
Output Current
Minimum(V) Typical Value(V) Maximum(V) Ripple wave(mV) Standby current Typical value Peak value +3.30V
+3.14 +3.30 +3.47 50 0 8.0 10.0 +5.00VSB
+4.75 +5.00 +5.25 50 0.1 2 2.5 +5.00V
+4.75 +5.00 +5.25 50 0 6.0
