MW Mean Well Enclosed Type LRS-75W-12/15/24/36/48/5V Non-PFC LRS Series 75W Single Output Switching Power Supply (LRS-75-15)

The LRS-75 series Suitable for Industrial automation machinery, Industrial control system, Mechanical and electrical equipment, Electronic instruments,equipments or apparatus, Household appliances.?such as Control cabinet power supply system, Beauty picosecond machine power supply, Supermarket container display system, Plant lighting, 3D printer power supply, Shop door head lights?

·Universal AC input/Full range
·Withstand 300VAC surge input for 5 second
·No load power consumption<0.3W
·Miniature size and 1U low profile
·High operating temperature up to 70?
·Protections: Short circuit/Overload/Over voltage
·Cooling by free air convection
·Compliance to lEC/BS EN/EN60335-1(PD3)and IEC/BS EN/EN61558-1,-2-16 for household appliances
·Operating altitude up to 5000 meters
·Withstand 5G vibration test
·High efficiency, long life and high reliability
·LED indicator for power on
·Over voltage category lll
·100% full load burn-in test
·3 years warranty

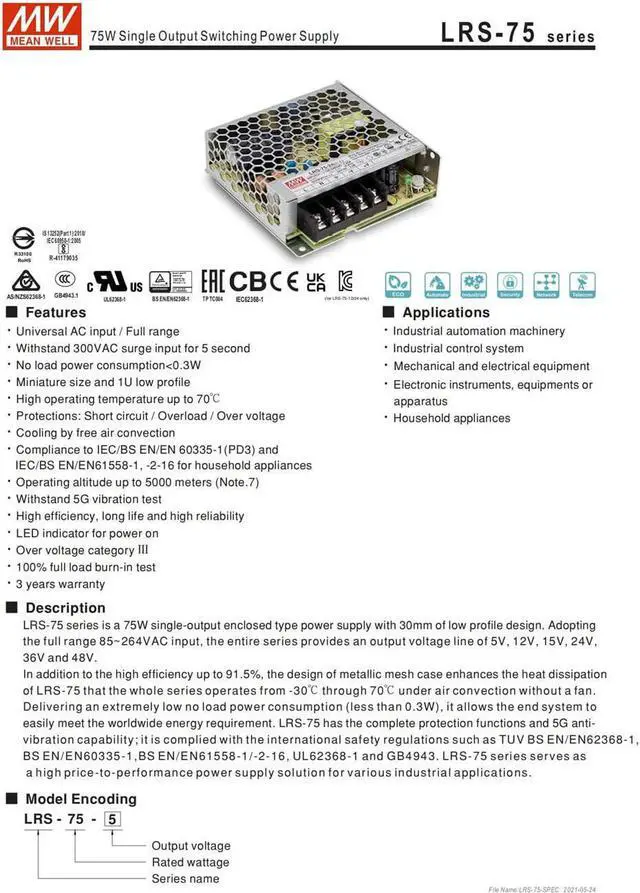

Description

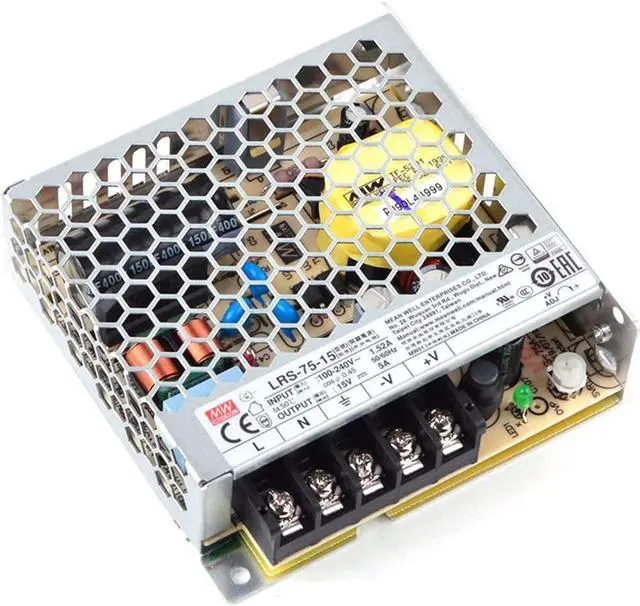

LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264 VAC input, the entire series provides an output voltage line of 5V?12V,15V,24V, 36V and 48V.

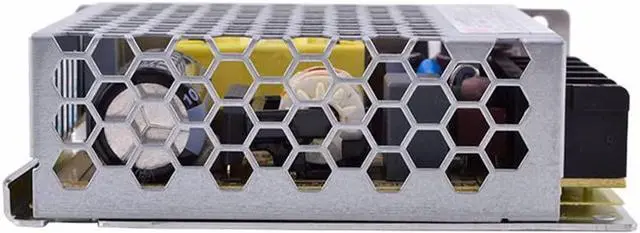

In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30? through 70? under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3w), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complete protection functions and 5G anti-
vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16,UL62368-1 and GB4943.LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.
