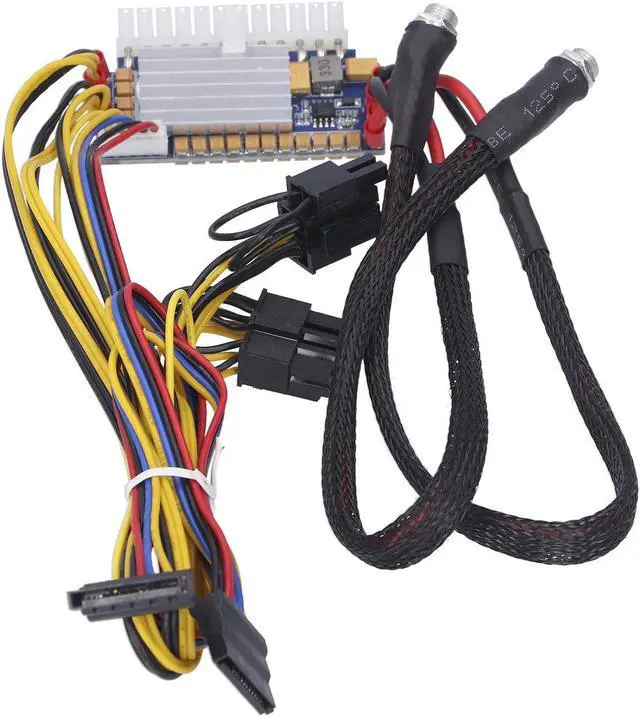

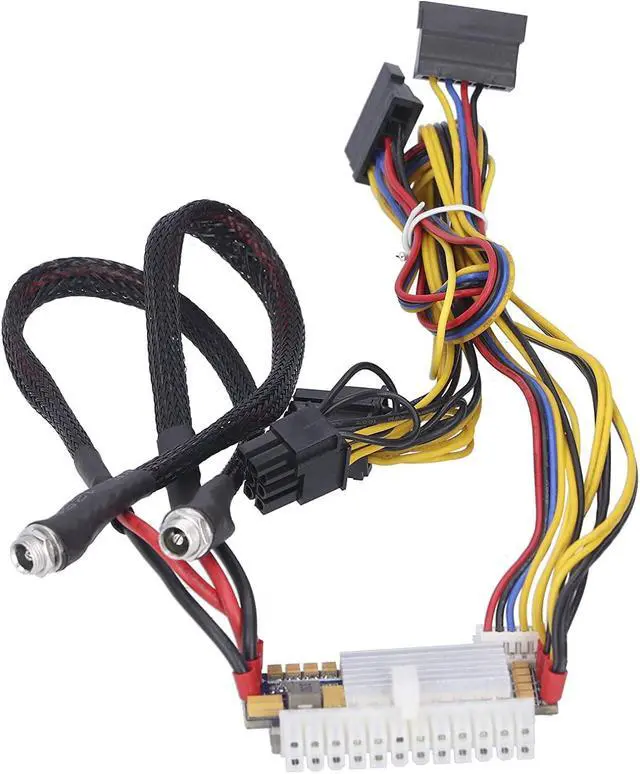

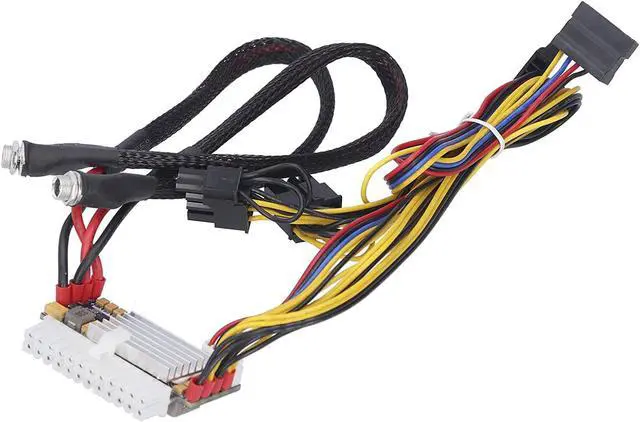

wendeekun Computer ATX Power Supply Breakout Adapter Module, Power Supply Adapter Board for Desktop Computer Straight Plug DCATX LDA450WL 12V/450W
Limited time offer, ends 07/19 By dazella store

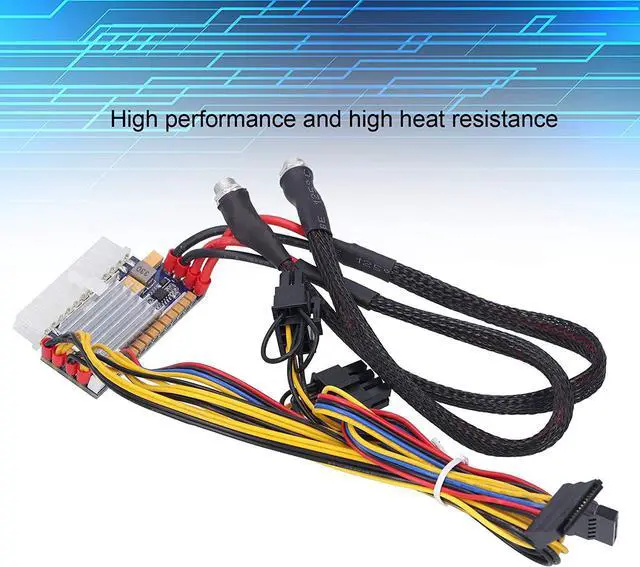

- Power supply adapter board has high performance, high heat resistance and more reliable.
- Plugging directly into the motherboard ATX connector to eliminate 24 unnecessary wires, suitable for small ATX boards.
- This product can save space in the case without affecting power requirements.

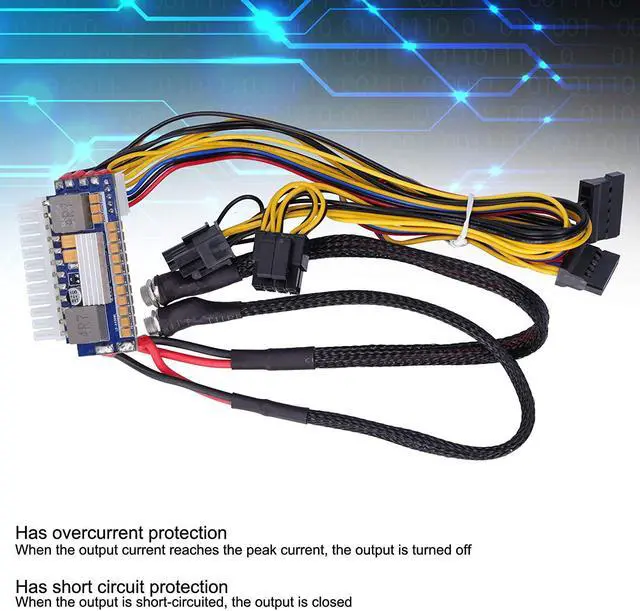

- With overcurrent protection, when the output current reaches the peak current, the output is turned off.
- The safety factor is better, with shortcircuit protection, when the output is shortcircuited, the output is turned off.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Power Supply Adapter Board
Model: LD-A450WL
Material: PCB
Power: 450W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A+5VDC/10A+3.3VDC/10A+12VDC/30A-12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 2 x SATA, 1 x Graphics Card 2+6pin, 2 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 340mm / 13.4in
Graphics Card Cable Length: Approx. 340mm / 13.4in
SATA Cable Length: Approx. 390mm / 15.4in + 190mm / 7.5in
Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
1 x Power Supply Adapter Board
Item Type: Power Supply Adapter Board
Model: LD-A450WL
Material: PCB
Power: 450W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A+5VDC/10A+3.3VDC/10A+12VDC/30A-12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 2 x SATA, 1 x Graphics Card 2+6pin, 2 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 340mm / 13.4in
Graphics Card Cable Length: Approx. 340mm / 13.4in
SATA Cable Length: Approx. 390mm / 15.4in + 190mm / 7.5in
Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
Package List:
1 x Power Supply Adapter Board
