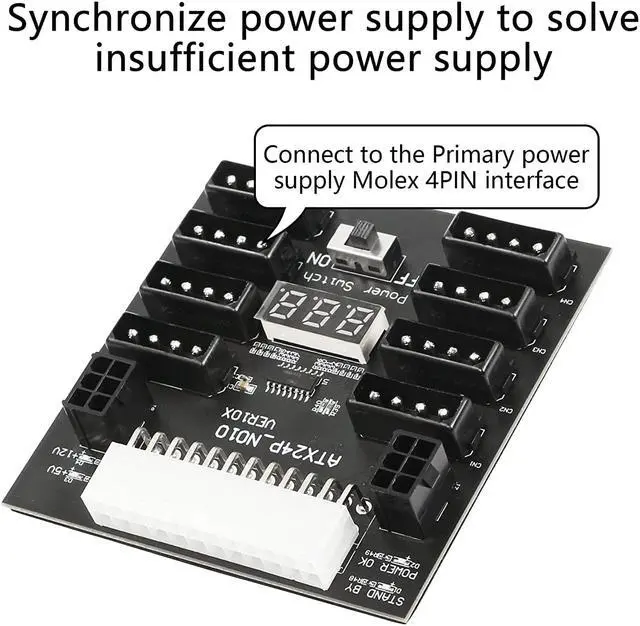

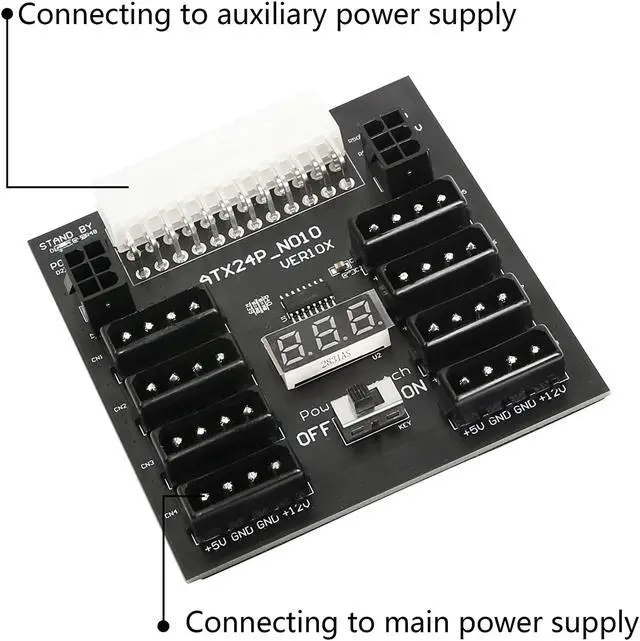

The main power supply's molex 4pin is connected with the PSU's molex 4pin Female. And the secondary power supply's 24PIN is connected with the PSU's 24Pin female.6PIN jack connect to the 6pin output of graphics card.
Use Multiple Power Supply Adapter to turn on and turn off two low-power power supplies at the same time, thereby increasing the power of the power supply.
Voltmeter LED display 12 volt power;LED light 12 volt,5 volt power,stand by,poewr ok.
Electronic power on/off switch, used to turn on/off the PSU.
Please confirm the direction when plugging in the device. The opposite direction and offset are not allowed. If your device is damaged, please hold the socket first, and then plug it in.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

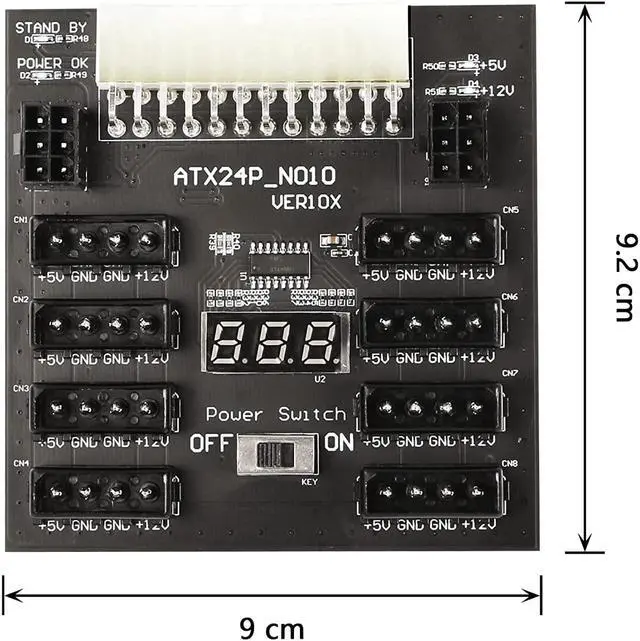

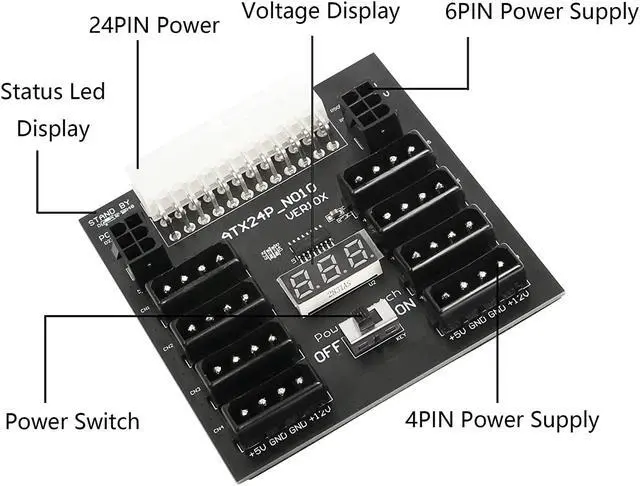

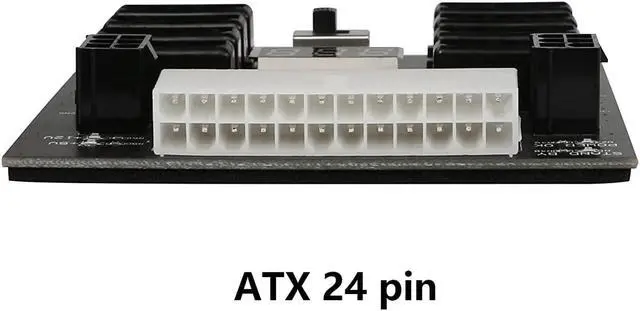

Specifications1.Connector A: ATX 24 pin 2.Connector B:8 x Molex 4pin3.Connector C: 2 x 6pin4.LED Display:12V5.LED Light: Stand by, Power Ok,+5v,+12v.6.Size:9.4x9.1x2 cm7.Scope of Application: Used to Miner Graphics Card Power Supply.
Learn more about the Detailed Specifications
Details
Type
AT
Additional Information
First Listed on Newegg
August 21, 2025
