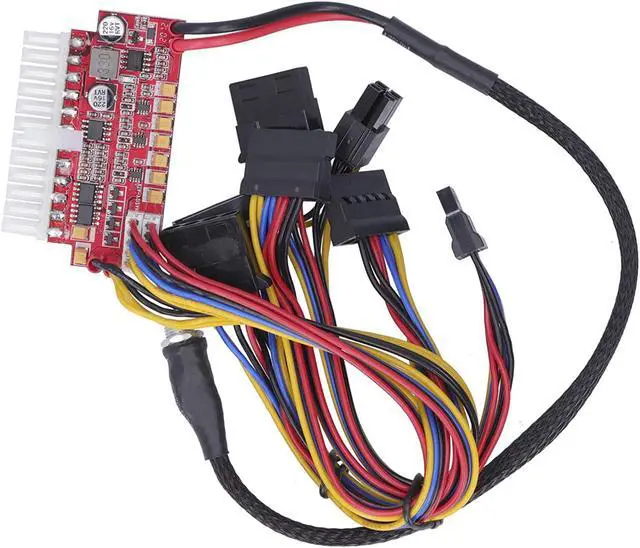

AMONIDA DC?ATX Power Adapter Board, Dependable Desktop Computer Power Module Heat Resistant for HTPC for Industrial Control Systems for POS Machines

Feature:
1. 12V 200W power adapter board, adopt premium PCB material, high performance, high heat resistance, more dependable to use.
2. Eliminate 24 unnecessary wires by plugging directly into the motherboard ATX connector, which is practical for using.
3. Applicable to small ATX boards to save space in the case without affecting power requirements.
4. Has over-current protection and short-circuit protection: when the output current reaches the peak current or a short circuit occurs, the output will turn off.
5. Can be used for MINI computers, for HTPC computers, for POS machines, ITX cases, network servers, industrial control systems, etc.


Specification:

Item Type: Desktop Computer Power Module
Material: PCB
Model: LD-NAS200L
Power: 200W
Input Voltage: 12V
Output Voltage/Maximum Load: +5VSB/2A, +5VDC/10A, +3.3VDC/8A, +12VDC/12A, -12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4Pin, 4 x for SATA, 2 x IDE, 1 x DC5525
Cable Length:
DC Cable: Approx. 320mm/12.6in
CPU Cable: Approx. 210mm/8.3in
IDE Cable: Approx. 200mm/7.9in
SATA Cable: Approx. 150mm/5.9in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/Humidity: -5 - 55/45% - 75%
Storage Temperature/Humidity: -40 - 70/10% - 90%
Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.





Package List:
1 x Power Adapter Board
