DC 48V Switch Power Supply Driver Display,for CCTV Radio, Computer Project, LED Strip Lights, 3DPrinter(S-480-48AC110/220V)
- Apply to: industrial automation, LED display, CCTV, radio, computer engineering, LED light bar, 3D printer, automation, radio, broadcasting, communications, security cameras, lighting, etc
- Safety: multiple protection functions, shortage protection, overload protectionover-voltage protection. Can resume normal operation after troubleshooting.Ensures the safety of using this power supply
- Durable: high quality switch power supply,100% full load burn-in test.Cooling by free air convection,the power supply driver can last for a long service life
- Tips: in-door use only! Non-waterproof! Working temperature: 0~40 Storage temperature: -20~60 Environmental humidity: 0~95%
- After-sales guarantee: if you find that this does not meet your needs or have any quality problems, you can return it at any time, we will unconditionally refund. 100% satisfaction guarantee: 100% money back guarantee, contact us at any time to get refund or replacement if you have any problem or unhappy buying experien
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:

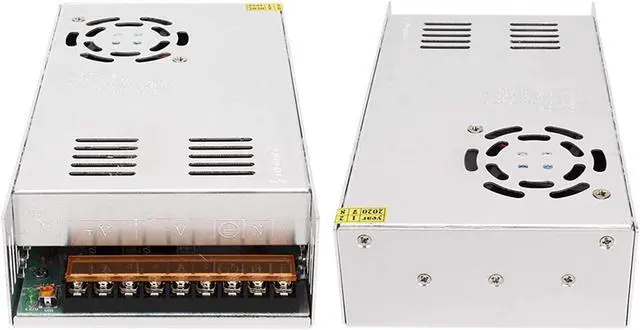

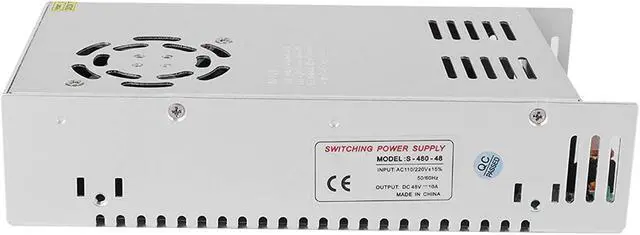

Item Type: Switch Power Supply Driver
Material: Aluminum alloy
Output: DC 48V
Protection: Overload/overvoltage/short circuit
Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+ V / ADJ: Adjust output voltage
Safety Compliance: CCC / FCC / CE
Working Temperature: 0~40
Storage Temperature: -20~60
Environmental Humidity: 0~95% non-condensing
Applicable To: Industrial automation, LED display, CCTV, radio, computer engineering, LED light bar, 3D printer, etc.

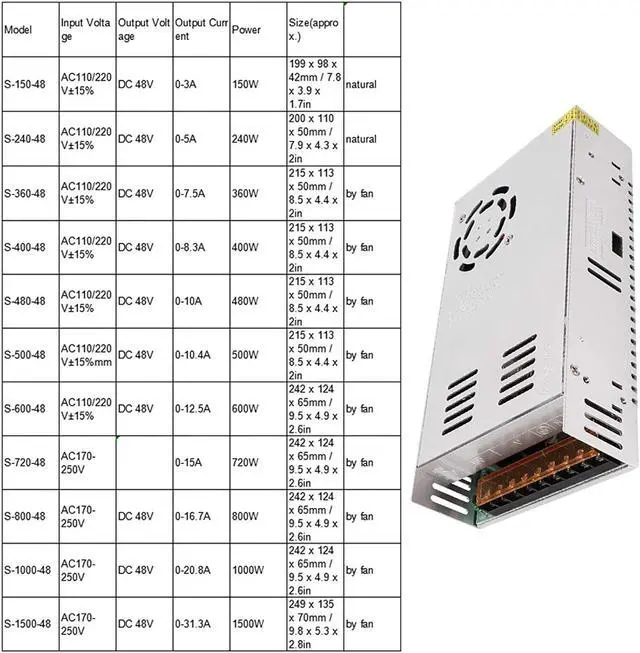

Product Parameter Comparison Table:
ModelInput VoltageOutput VoltageOutput CurrentPowerSize(approx.)Cooling Way S-150-48AC110/220V±15%DC 48V0-3A150W199 x 98 x 42mm / 7.8 x 3.9 x 1.7innaturalS-240-48AC110/220V±15%DC 48V0-5A240W200 x 110 x 50mm / 7.9 x 4.3 x 2innaturalS-360-48AC110/220V±15%DC 48V0-7.5A360W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-400-48AC110/220V±15%DC 48V0-8.3A400W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-480-48AC110/220V±15%DC 48V0-10A480W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-500-48AC110/220V±15%mmDC 48V0-10.4A500W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-600-48AC110/220V±15%DC 48V0-12.5A600W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-720-48AC170-250VDC 48V0-15A720W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-800-48AC170-250VDC 48V0-16.7A800W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-1000-48AC170-250VDC 48V0-20.8A1000W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-1500-48AC170-250VDC 48V0-31.3A1500W249 x 135 x 70mm / 9.8 x 5.3 x 2.8inby fan
Package List:
1 x Switch Power Supply Driver
Item Type: Switch Power Supply Driver
Material: Aluminum alloy
Output: DC 48V
Protection: Overload/overvoltage/short circuit
Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+ V / ADJ: Adjust output voltage
Safety Compliance: CCC / FCC / CE
Working Temperature: 0~40
Storage Temperature: -20~60
Environmental Humidity: 0~95% non-condensing
Applicable To: Industrial automation, LED display, CCTV, radio, computer engineering, LED light bar, 3D printer, etc.
Product Parameter Comparison Table:
ModelInput VoltageOutput VoltageOutput CurrentPowerSize(approx.)Cooling Way S-150-48AC110/220V±15%DC 48V0-3A150W199 x 98 x 42mm / 7.8 x 3.9 x 1.7innaturalS-240-48AC110/220V±15%DC 48V0-5A240W200 x 110 x 50mm / 7.9 x 4.3 x 2innaturalS-360-48AC110/220V±15%DC 48V0-7.5A360W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-400-48AC110/220V±15%DC 48V0-8.3A400W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-480-48AC110/220V±15%DC 48V0-10A480W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-500-48AC110/220V±15%mmDC 48V0-10.4A500W215 x 113 x 50mm / 8.5 x 4.4 x 2inby fanS-600-48AC110/220V±15%DC 48V0-12.5A600W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-720-48AC170-250VDC 48V0-15A720W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-800-48AC170-250VDC 48V0-16.7A800W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-1000-48AC170-250VDC 48V0-20.8A1000W242 x 124 x 65mm / 9.5 x 4.9 x 2.6inby fanS-1500-48AC170-250VDC 48V0-31.3A1500W249 x 135 x 70mm / 9.8 x 5.3 x 2.8inby fan
Package List:
1 x Switch Power Supply Driver
