MW HDR-150W-12/15/24/48VDC Mean Well 150W Step Rail Type New Switching Power Supply (HDR-150-15)
- 100% original HDR-150W|(12V/10.2A).(15V/8.55A).(24V/5.31A).(48V/2.72A) For Household/Industrial/Building automation control, Electro-mechanical apparatus.
- The HDR-150 series meets the relevant certifications of home automation and industrial control apparatus (IEC62368-1?UL62368-1,UL61010?EN61558-2-16), and is a highly competitive power supply solution for household and industrial applications.
- Input 85-264VAC, in line with EN61000-3-2 standard economical ultra slim type power supply
- The plastic shell prevents users from electrical hazards, stable operation in the environment of -30? to 70?, and the efficiency is as high as 90.5%
- 30 years of well-known standard power supply brand, 24 hours fast after-sales support from countries in Asia, Europe and America More than 85% of MW's(MEAN WELL's) products can be shipped within 24 hours, supporting mass wholesale.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

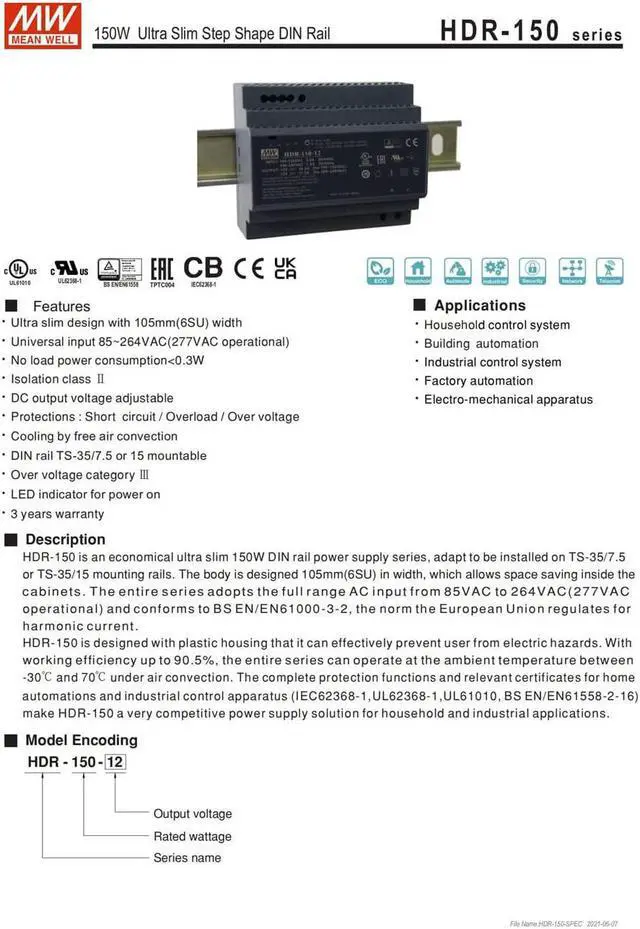

The HDR-150 series Suitable for Household control system, Building automation, Industrial control system, Factory automation, Electro-mechanical apparatus
·Ultra slim design with 105mm(6SU)width
Universal input 85~264VAC(277VAC operational)
· No load power consumption<0.3W
·Isolation class ?
·DC output voltage adjustable
·Protections: Short circuit/Overload/Over voltage
·Cooling by free air convection
·DIN rail TS-35/7.5 or 15 mountable
·Over voltage category ?
·LED indicator for poweron
·3years warranty
Description
HDR-150 is an economical ultra slim 150W DIN rail power supply series, adapt to b installed onTS-35/7.5
or TS-35/15 mounting rails. The body is designed 105mm(6SU)in width, which allows space saving inside the cabinets.The entire series adopts the full range AC input from 85 VAC to 264 VAC(277 VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-150 is designed with plastic housing that it can effectively prevent user fro nelectric hazards.With
working efficiency up to 90.5%, the entire series can operate at the ambien temperature between
-30? and 70? under air convection. The complete protection functions and relevant certificates for home
automations and industrial control apparatus(lEC62368-1,UL62368-1,UL6101,BS EN/EN61558-2-16)
make HDR-150 a very competitive power supply solution for household and industrial applications.
·Ultra slim design with 105mm(6SU)width
Universal input 85~264VAC(277VAC operational)
· No load power consumption<0.3W
·Isolation class ?
·DC output voltage adjustable
·Protections: Short circuit/Overload/Over voltage
·Cooling by free air convection
·DIN rail TS-35/7.5 or 15 mountable
·Over voltage category ?
·LED indicator for poweron
·3years warranty
Description
HDR-150 is an economical ultra slim 150W DIN rail power supply series, adapt to b installed onTS-35/7.5
or TS-35/15 mounting rails. The body is designed 105mm(6SU)in width, which allows space saving inside the cabinets.The entire series adopts the full range AC input from 85 VAC to 264 VAC(277 VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-150 is designed with plastic housing that it can effectively prevent user fro nelectric hazards.With
working efficiency up to 90.5%, the entire series can operate at the ambien temperature between
-30? and 70? under air convection. The complete protection functions and relevant certificates for home
automations and industrial control apparatus(lEC62368-1,UL62368-1,UL6101,BS EN/EN61558-2-16)
make HDR-150 a very competitive power supply solution for household and industrial applications.
